How to Properly Install a Centrifugal Pump System

As a building engineering expert, I know that the longevity and efficiency of any fluid transfer system hinge on proper installation. A well-installed centrifugal pump operates reliably, minimizes maintenance, and delivers consistent performance. This guide provides a step-by-step approach to how to install a centrifugal pump system correctly, ensuring it meets operational demands and safety standards.

Key Steps for a Successful Centrifugal Pump Installation

Proper installation is a critical investment. Skipping steps or taking shortcuts can lead to significant operational issues down the line, including premature wear and costly repairs.

1. Foundation Setup and Baseplate Installation

The journey begins with a solid pump foundation. A robust foundation is essential to absorb vibrations and provide a stable platform for the pump and motor.

Steps:

• Prepare the Foundation: Ensure the concrete foundation is level, clean, and free from oil or grease. The foundation should be strong enough to support the combined weight of the pump, motor, baseplate, and any associated piping.
• Position the Baseplate: Carefully place the pump baseplate on the foundation. Use shims to level it, ensuring even support. The baseplate typically has anchor bolt holes that align with pre-drilled holes in the foundation.
• Grouting: Once the baseplate is leveled and anchored, grouting is applied to fill the space between the baseplate and the foundation. This material, often a non-shrink grout, ensures complete contact, prevents corrosion under the baseplate, and provides rigid support, which is critical for maintaining shaft alignment.

A solid foundation prevents many future problems. Explore our selection of Centrifugal Pumps that are designed for robust installations.

2. Pipe Connection and Minimizing Pipe Strain

Connecting the piping correctly is crucial. Improper pipe connections can introduce stress to the pump casing and affect performance.

Steps:

• Suction and Discharge Piping: Connect the suction and discharge pipes to the pump. Ensure that the pipes are independently supported to prevent pipe strain on the pump flanges. Pipe strain can distort the pump casing, causing shaft misalignment and premature mechanical seal failure.
• Expansion Joints: Consider using expansion joints, especially in systems with significant temperature fluctuations, to absorb thermal expansion and contraction and prevent stress on the pump.
• Valves and Gauges: Install necessary isolation valves, check valves, and pressure gauges on both the suction and discharge sides for system control and monitoring.

For more details on the individual components, refer to our Centrifugal Pump Parts & Functions guide.

3. Shaft Alignment and Motor Rotation Check

Precision in these steps is non-negotiable for pump longevity and efficiency.

Steps:

• Shaft Alignment: This is perhaps the most critical step. Precise shaft alignment between the pump and motor is essential to prevent excessive vibration, bearing failure, and mechanical seal issues. Use a dial indicator or laser alignment tool to achieve exact alignment.

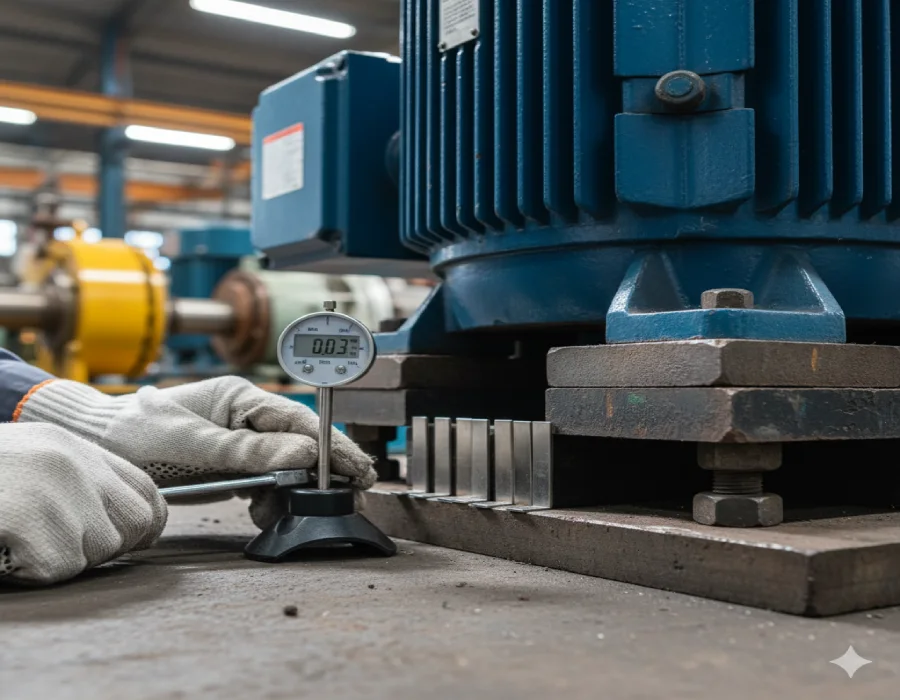

• Addressing Soft Foot: Before final alignment, check for soft foot. This occurs when one of the motor or pump feet does not sit squarely on the baseplate, leading to distortion when tightened. Identify and correct any soft foot by shimming the offending foot.
• Motor Rotation: Before coupling the pump, briefly “bump” the motor to verify that its rotation matches the directional arrow on the pump casing. Incorrect motor rotation will result in little to no flow and can damage the pump.

Understanding how your pump should perform under ideal conditions can be found by consulting Centrifugal Pump Curves.

4. Priming the Pump and Safety Precautions

The final steps involve preparing the pump for operation and adhering to all safety precautions.

Steps:

• Priming the Pump: Before starting the pump, it must be completely filled with liquid to ensure proper operation and prevent dry running. This process is called priming the pump. Open the suction valve and vent the pump casing until all air is expelled and a steady stream of liquid flows out.
• Electrical Connections: Ensure all electrical connections are made by a qualified electrician and comply with local codes. Verify proper motor wiring and overload protection.
• Final Checks: Double-check all bolted connections, ensure guards are in place, and review the system for any potential leaks. Follow all manufacturer-recommended safety precautions before initial startup.

If you’re still in the selection phase, our guide on how to Choose a Centrifugal Pump can help you make an informed decision.

Answering Your Question

What are the steps to install a centrifugal pump?

The main steps include preparing and grouting the pump foundation and baseplate, connecting the suction and discharge piping while minimizing pipe strain, achieving precise shaft alignment between the pump and motor, verifying motor rotation, and finally, priming the pump and implementing all safety precautions before startup.

How important is pump alignment?

Pump alignment is extremely important. Poor shaft alignment is a leading cause of premature bearing and mechanical seal failures, excessive vibration, and increased energy consumption. Precision alignment ensures smooth operation, extends the lifespan of components, and reduces maintenance costs.

What is the correct way to pipe a pump suction?

The correct way to pipe a pump suction involves ensuring a straight run of pipe (typically 5-10 pipe diameters) before the pump inlet, minimizing elbows and fittings. The suction line should be sloped upwards towards the pump to prevent air pockets, and it must be independently supported to avoid pipe strain on the pump casing.

What is a soft foot on a pump?

A soft foot occurs when one of the pump or motor mounting feet does not make full, even contact with the baseplate. When the anchor bolts are tightened, this uneven contact can distort the pump casing or motor frame, leading to stress, misalignment, and vibration. It must be corrected by inserting shims under the “soft” foot to ensure all feet are firmly supported.

Conclusion

Properly installing a centrifugal pump system is a detailed process that demands attention to every component, from the pump foundation to the final priming the pump stages. By meticulously following these guidelines, paying close attention to shaft alignment, minimizing pipe strain, and adhering to all safety precautions, you can ensure your centrifugal pump operates efficiently, reliably, and for its intended lifespan. A well-installed pump is a cornerstone of an effective fluid management system.
