GolPumps 1 HP Submersible Well Pump – High-Performance Deep Well Pump (ST 0717)
GolPumps’ 1 HP submersible well pump is designed for 4-inch and larger wells, delivering consistent water flow for residential, agricultural, and commercial applications. Engineered for efficiency and durability, this deep well water pump is 100% tested before shipment, ensuring superior performance in demanding environments.
Key Features & Benefits
- Encapsulated Resin-Filled Motor – Prevents motor burnout with hermetically sealed, anti-tracking technology
- High-Efficiency Operation – Reduces power consumption, offering lower operational costs
- Premium Copper Wiring – Ensures maximum conductivity and durability
- Pressure Equalizing Diaphragm – Provides consistent performance and extended motor lifespan
- Removable Lead Connector – Allows easy installation and maintenance
- Thrust Pad Technology – Enhances stability and reliability for deep well applications
- Compatible Control Boxes – Available for single-phase motors
- Standard NEMA Mounting Dimensions – Ensures seamless integration into new or existing systems
Technical Specifications
- Upper Bracket: Cataphoresis-treated cast iron with SS304 stainless steel cover cap
- Max Immersion Depth: 985 ft
- Protection Rating: IP68 (fully submersible and waterproof)
- Max Starts Per Hour: 20 (at regular intervals)
- Sealing System: Sand slinger and lip seal for enhanced debris protection
- Insulation Class: F
- Rated Ambient Temperature: 86°F with a minimum cooling flow of 0.08 m/s
- Installation Position: Vertical or Horizontal
Pump Specifications
- Max Head: 500 ft
- Max Flow Rate: 13 GPM
- Discharge Size: 1 1/4″
- Horsepower: 1 HP
- Material: Durable Noryl Construction
- Pump Model: ST 0717
Includes a wire splice kit for quick and secure installation.
Perfect For:
- Deep well water pumping in residential, agricultural, and commercial applications
- Irrigation systems, livestock watering, and household water supply
- Energy-efficient water solutions for long-term cost savings
Order now for fast shipping and reliable performance from GolPumps!
| Model | Pump | ST 7-17 |
| Motor | 4CF3526M | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 0.75 |
| HP | 1 | |
| Service Factor | 1.4 | |
| Material | Pump | Noryl |
| Motor | Noryl | |
| Voltage – Phase | 230V – Single Phase | |
| Wire | 2 | |
| In | A | 5.4 |
| Imax | A | 6.8 |
| Istart | A | 24.2 |
| PF (%) | Allowable Load | 0.97 |
| Overload Factor | 0.98 | |
| Efficiency (%) | Allowable Load | 62.7 |
| Overload Factor | 68.2 | |
| R.P.M | 3450 | |
| Thrust | N | 3000 |
| Capacitor | UF | 25UF 450V |
| Cable | AWG | 14 |
| Length (ft.) | 3.9 | |
| Production Country | Taiwan | |

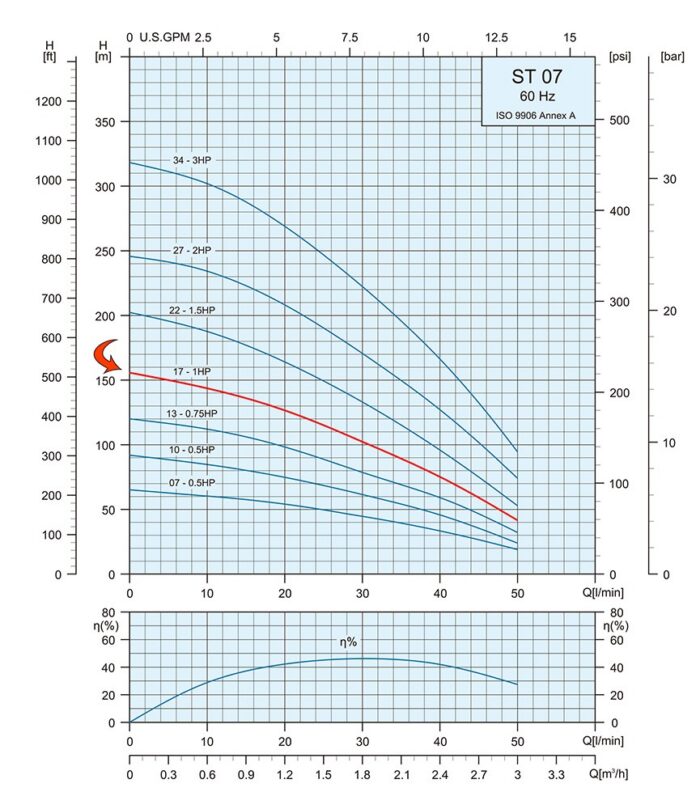

Performance Curves
| Pump Model | Motor | Q Capacity 3500RPM | |||||||||
| kW | HP | Gal/Min | 0 | 4 | 5.3 | 6.6 | 7.9 | 9.2 | 10.6 | 13.2 | |
| ST 7-17 | 0.75 | 1 | Head (ft.) | 511.8 | 446.2 | 416.7 | 377.3 | 334.6 | 292 | 246.1 | 137.8 |
Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | |||||
| A | B | C | D | Pump | Motor | Pump + Motor | ||
| NPT 1 1/4″ | 4″ | 17.9″ | 1 1/4″ | 3.9″ | 32.8″ | 9.9 | 25.3 | 35.2 |
Part List and Materials
| No. | Part Name | Materials |
| 1 | Discharge Head | AISI 304 |
| 4 | Check Valve Cone | AISI 304 |
| 6 | Check Valve Retaining Ring | AISI 304 |
| 8 | Bearing Spider | Glass Filled Polycarbonate |
| 12 | Diffuser | Glass Filled Polycarbonate |
| 13 | Bowl | AISI 304 |
| 18 | Impeller | Noryl |
| 34 | Strainer | AISI 304 |
| 40 | Pump Shaft / Coupling | AISI 304 |
| 42 | Shaft Sleeve | AISI 304 or Norly |
| 48 | Pump Casing | AISI 304 |
| 52 | Cable Guard | AISI 304 |
| 86 | O-Ring | NBR |
| 92 | Bearing | Polyacetal |
