1HP Submersible 2-WIRE Motor 53GPM Deep Well Water Pump – 230V – 1P – SS304 – 4″ – 108ft

GolPumps 1HP Submersible Deep Well Pump – High-Performance & Durable

The GolPumps 1HP Submersible Deep Well Pump is designed for 4” or larger wells, offering superior efficiency and longevity for residential, agricultural, and industrial water systems. Engineered with an encapsulated resin-filled motor, this stainless steel pump ensures reliable performance and protection against motor burnout.

810.00$

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0
SKU: 7060101 Categories: , , ,

Description

GolPumps 1HP Submersible Deep Well Pump – High-Performance & Durable

The GolPumps 1HP Submersible Deep Well Pump is designed for 4” or larger wells, offering superior efficiency and longevity for residential, agricultural, and industrial water systems. Engineered with an encapsulated resin-filled motor, this stainless steel pump ensures reliable performance and protection against motor burnout.

Key Features & Benefits

High-Efficiency Motor – Reduces operational costs with optimal energy savings.
Hermetically Sealed Stator – Prevents tracking and ensures longevity.
Premium Build Quality – Copper wiring, pressure equalizing diaphragm, and removable lead connector enhance durability.
Versatile Installation – Suitable for both vertical and horizontal mounting.
Rugged Stainless Steel 304 Construction – Corrosion-resistant for long-term use.

Technical Specifications

✔ Max Flow: 53 GPM
✔ Max Head: 108 ft
✔ Discharge Size: 2”
✔ Horsepower: 1 HP
✔ Protection Rating: IP68
✔ Cooling Flow: 0.08 m/s
✔ Rated Temperature: Up to 86°C

Perfect for deep-well water systems, this high-performance submersible pump meets market demands for reliability, efficiency, and durability. Order now and experience top-tier water pumping performance!

(Includes wire splice kit)

Performance & Quality Assurance – GolPumps Submersible Deep Well Pumps

  • Reliable & Efficient Performance – Engineered for long-lasting durability, our submersible well pumps are rigorously tested to meet industry standards, ensuring high efficiency and optimal water flow for residential, agricultural, and industrial applications.
  • Precision-Tested for Quality – Each pump undergoes strict quality control and performance testing before shipment, guaranteeing smooth operation and consistent water pressure.
  • Versatile for Multiple Applications – Designed to support water supply, irrigation, pressure boosting, and deep-well water systems, our pumps offer a wide range of flow rates and pressure capabilities to fit your needs.
  • Expert Technical Support – Need help selecting the right deep well pump or control panel? Our specialists provide guidance and troubleshooting to ensure you get the perfect fit.
Model Pump SP 40-4
Motor 4CS3526M
Brand Gol Pumps
Manufacturer’s Warranty 1-year Limited Warranty
P2 kW 0.75
HP 1
Service Factor 1.4
Material Pump Stainless Steel 304
Motor Stainless Steel 304
Voltage – Phase 230V – Single Phase
Wire 2
In A 5.4
Imax A 6.8
Istart A 24.2
PF (%) Allowable Load 0.97
Overload Factor 0.98
Efficiency (%) Allowable Load 62.7
Overload Factor 68.2
R.P.M 3450
Thrust N 3000
Capacitor UF 25UF 450V
Cable AWG 14
Length (ft.) 3.9
Production Country Taiwan

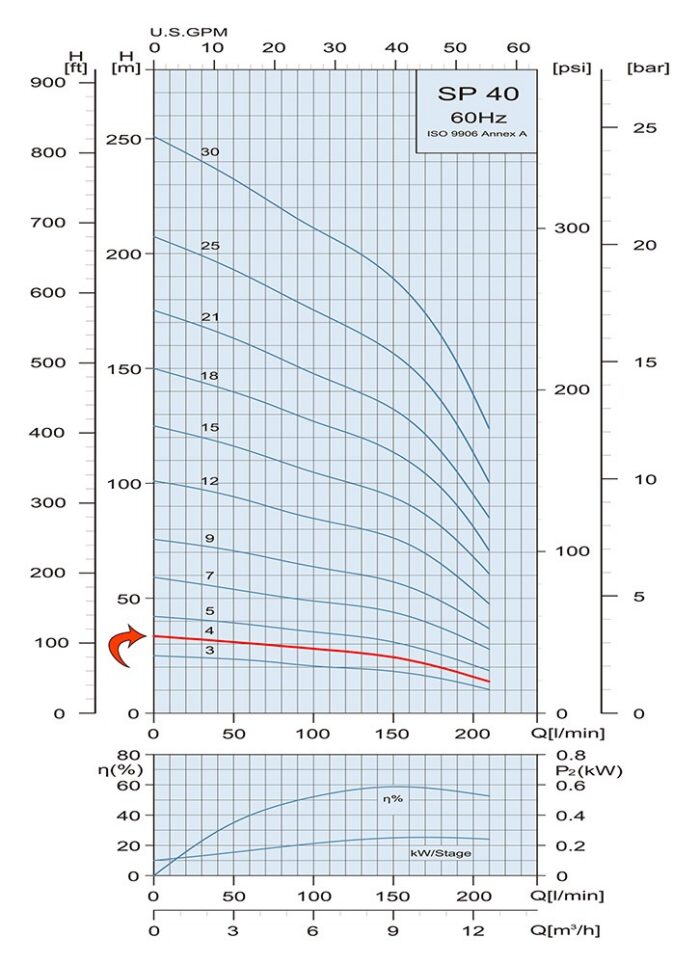

Performance Curves

Pump

Model

 Motor Q Capacity 3500RPM
kW HP Gal/Min 0 21.1 23.8 26.4 31.7 37 42.3 47.6 52.8
SP 40-4 0.75 1 Head (ft.) 108.3 95.1 91.9 88.6 85.3 82 75.5 65.6 52.5

Dimensions and Weights

Outlet Motor Dia. Dimensions (inch) Weight (lb)
A B C Pump Motor Pump + Motor
NPT 2″ 4″ 14.6″ 29.5″ 3.9″ 9 25.3 34.3
