Description

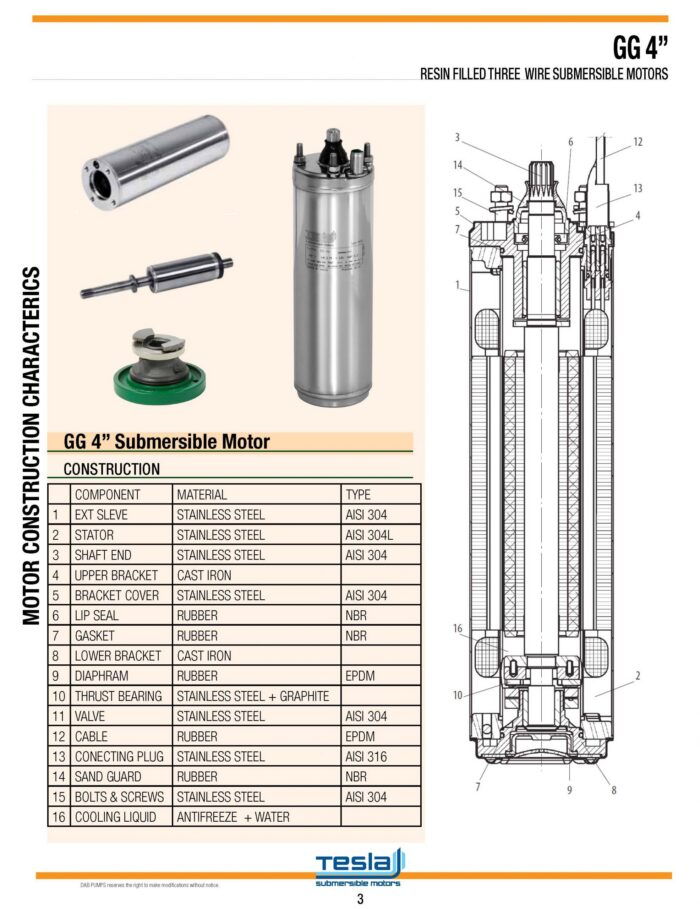

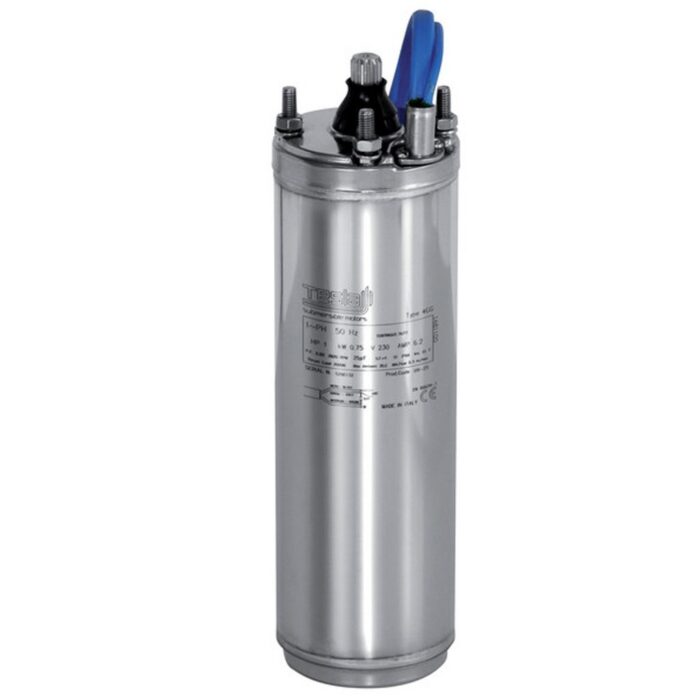

4″Asynchronous two-poles submersible motor, made in AISI 304 stainless steel for parts in contact with water. Cooling and lubrication of the thrust bearing assembly and carbon bushes are provided by a mixture of water and glycol. Squirrel-cage rotor mounted on Kingsbury self-centering thrust bearing. Stator housed in an airtight stainless steel casing (canned-type) with both flangs and shell in AISI 304L stainless steel. Removable cable connector to allow fast and easy maintenance. The cable is certified ACS, WRAS, and KTW. Motor suitable for use with (60 Hz) frequency drive. For the single-phase 60 Hz version the thermal protection is included in the motor (from 0,5 HP to 1 HP). Overload protection must be provided by the user for the three-phase versions.
IMPORTANT NOTICE: [TESLA CONTROL BOX 4CBUS — 2 HP — 230V 60Hz – BASIC/PLUS] is highly recommended to use with this submersible motor.
NPT std.
Download Installation & Operation Manual:
Tesla_60Hz_Installation_operation-Manual.pdf
Description
| Brand | TESLA |
| Manufacturer’s Warranty | 2 years Limited Warranty |
| Ship Weight | 34 lbs |
| Service Factor | 13 |
| Locked rotor torque | 0.65 |
| Volts | 230 |
| Amps | 10.6 |
| HP | 2 |
| Power consumption(W) | 2700 |
| R.P.M | 3450 |
| Power factor | 0.95 |
| Efficiency | 70% |
| Capacitor 1 (μF)Capacitor 2 (μF) | 20105-126 |
| Cable section (AWG) | 4 x 14 |
| Cable length (ft.) | 5.5 |
| Dimensions L x W x H (in.) | 5 x 5 x 20 |
| Product Weight (lbs.) | 34 |
| Production Country | Italy |
