DESCRIPTION

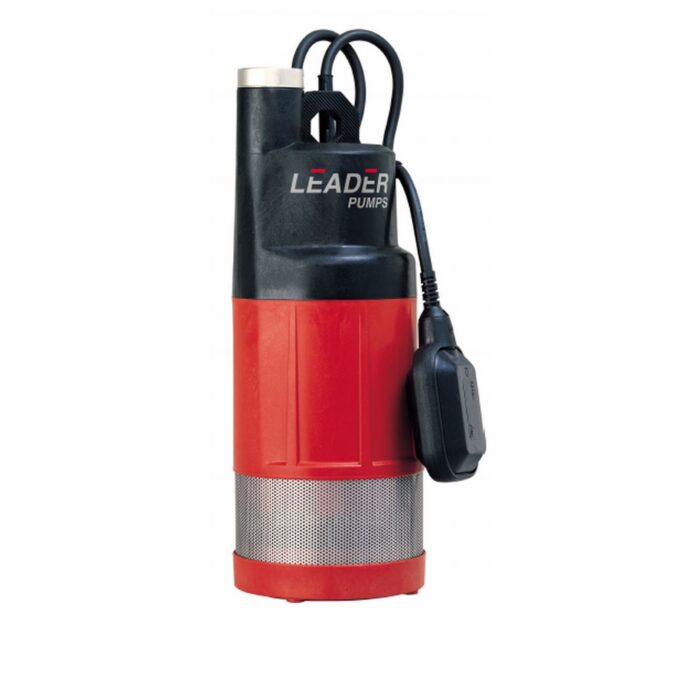

Multi-stage powerful submersible pumps ideal for rain water systems, operating sprinklers, pumping water from tanks, cisterns, ponds and wells and other applications that require high pressure.
Available with 2, 3 and 4 impellers. Suitable to pump clear water.
TECHNICAL DATA
- Operating Range: From 1 to 26 gpm with a head up to 157ft (68psi)
- Liquid quality requirements: Clean, free from solids or abrasive substances,non viscous, non aggressive, non crystallized, chemically neutral, close to the characteristics of water
- Liquid temperature Range: From 32°F to 95°F
- Maximum ambient temp. 104°F
- Maximum operating pressure 87 psi
- Maximum submersion 33 ft
- Installation: fixed or portable in a vertical position
- Special version on request other voltages and/or frequencies
Constructional features of the pump
- Technopolymer pump body.
- Technopolymer impeller, diffuser, self-priming disc.
- Anti-debris stainless steel strainer.
Constructional features of the motor
- Induction motor, closed and cooled with liquid being pumped
- Wear resistant shaft with triple lip seals to ensure a long life.
- Built-in thermic overload protection
- Capacitor permanently in circuit.
- Manufactured according to UL 778 -2010 & CSA 108-1
- Motor protection: NEMA6P
- Insulation class: F
- Cable Length: 16ft
- Standard voltage: 115v 60Hz
