GPT 2″ Thin Submersible Well Pump – 173 Ft – 312 GPH – 3 Wire – 0.5HP

This 2″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach up to 173 feet of head and is great for 2.5″ diameter wells.

318.00$

In Stock
Clear

Description

This 2″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach up to 173 feet of head and is great for 2.5″ diameter wells.

  • Water supply from wells and reservoirs
  • Comes with a control  box
  • Rewindable motor

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions

  • Maximum fluid temperature up to 95°F
  • Maximum sand content: 0.25%
  • Minimum well diameter: 2″

Motor and Pump

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • x Pumps are designed by casing stressed Curve tolerance according to ISO 9906

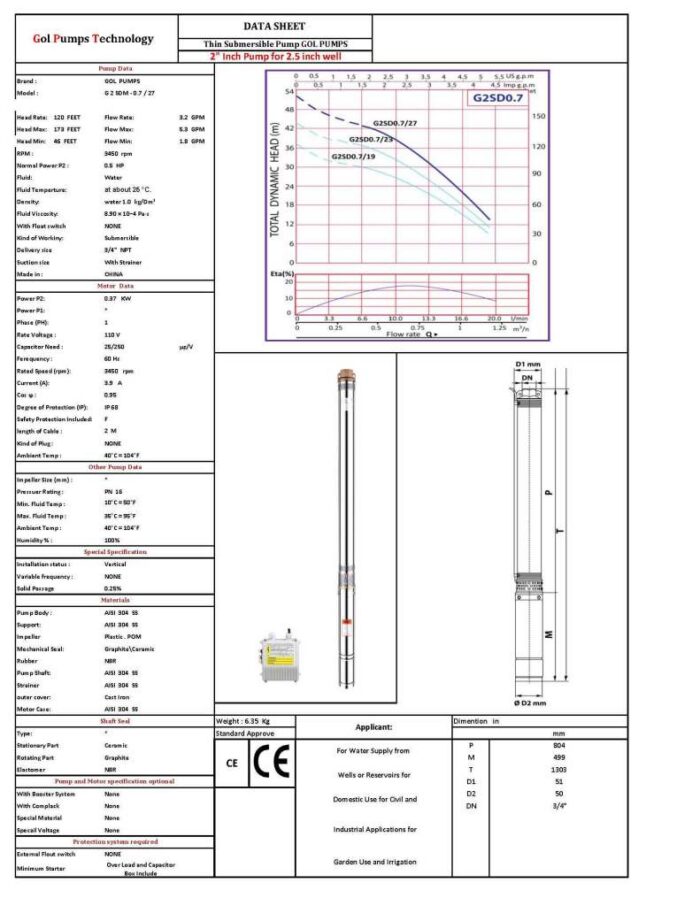

    Technical Specifications

    Pump Type Thin Submersible Pump
    Pump Brand GOL Pumps
    Pump Model 2SDM0.7/27
    Warranty 1 Year
    Maximum Head 173ft
    Minimum Head 46ft
    Maximum Flow 312 GPH
    Minimum Fluid Temperature 50°F
    Maximum Fluid Temperature 95°F
    Maximum Ambient Temperature 104°F
    Discharge 3/4″ NPT
    Pump Material Stainless Steel 304
    Pump Diameter 2″

Additional information

Brand

HP

Phase

Voltage

,
