1.5HP Submersible 2-WIRE Motor 32GPM Deep Well Water Pump – 230V – 1P -SS304 – 4″ – 276ft

The GolPumps 1.5HP Submersible Deep Well Water Pump is engineered for maximum efficiency and durability, making it ideal for residential, agricultural, and industrial water systems. Designed for 4” or larger wells, this stainless steel (SS304) pump delivers high water flow and reliable performance at depths of up to 276 feet.

Key Features & Benefits

High-Efficiency 2-Wire Motor – Encapsulated resin-filled motor ensures optimal performance and energy savings.
Hermetically Sealed Stator – Prevents motor burnout with anti-tracking and resin-filled insulation.
Durable Stainless Steel 304 Construction – Corrosion-resistant for long-lasting use in deep well applications.
Copper Wiring & Pressure Equalizing Diaphragm – Enhances motor longevity and efficiency.
Easy Installation & Compatibility – Standard NEMA mounting with a removable lead connector for hassle-free setup.
Versatile Mounting Options – Suitable for both vertical and horizontal installations.

Technical Specifications

✔ Max Head: 276 ft
✔ Max Flow Rate: 31.5 GPM
✔ Discharge Size: 1 1/2”
✔ Horsepower: 1.5 HP
✔ Voltage: 230V, Single-Phase
✔ Protection Rating: IP68
✔ Cooling Flow: 0.08 m/s
✔ Rated Temperature: Up to 86°C
✔ Max Starts per Hour: 20

 Performance Assurance:

• Engineered for Reliable Performance – Our products are designed and tested to deliver optimal efficiency and durability for various applications.
• Tested for Quality & Performance – Each product undergoes rigorous quality control and performance testing to ensure it meets industry standards before shipping.
• Designed to Meet Your Needs (pumps) – With a wide range of flow rates and pressure capabilities, our pumps are suitable for multiple applications, including water supply, irrigation, and pressure boosting.



  Model	Pump	SP 25-9
  	Motor	4CS3536M
  Brand		Gol Pumps
  Manufacturer’s Warranty		1 years Limited Warranty
  P2	kW	1.1
  	HP	1.5
  Service Factor		1.3
  Material	Pump	Stainless Steel 304
  	Motor	Stainless Steel 304
  Voltage – Phase		230V – Single Phase
  Wire		2
  In	A	7.7
  Imax	A	9.4
  Istart	A	31.8
  PF (%)	Allowable Load	0.95
  	Overload Factor	0.96
  Efficiency (%)	Allowable Load	64.3
  	Overload Factor	64.8
  R.P.M		3450
  Thrust	N	3000
  Capacitor	UF	30UF 450V
  Cable	AWG	14
  	Length (ft.)	3.9
  Production Country		Taiwan

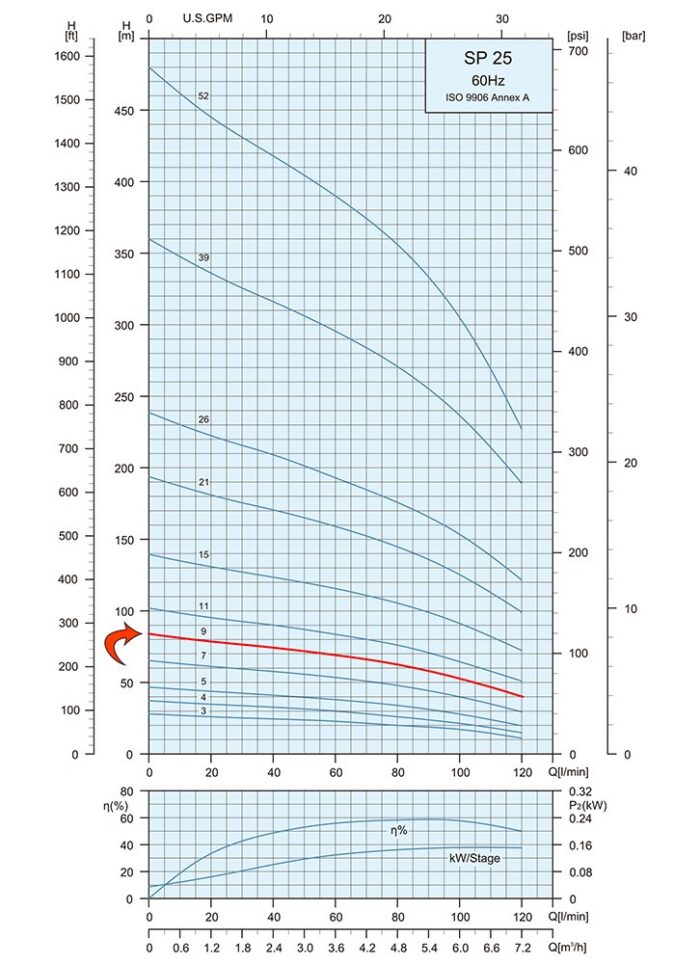

  Performance Curves



  Pump Model	Motor		Q Capacity 3500RPM
  	kW	HP	Gal/Min	0	15.9	18.5	21.1	23.8	26.4	31.7
  SP 25-9	1.1	1.5	Head (ft.)	275.6	226.4	216.5	206.7	190.3	173.9	131.2

  Dimensions and Weights



  Outlet	Motor Dia.	Dimensions (inch)			Weight (lb)
  		A	B	C	Pump	Motor	Pump + Motor
  NPT 1 1/2″	4″	14″	30.7″	3.9″	6.9	29.7	36.6
