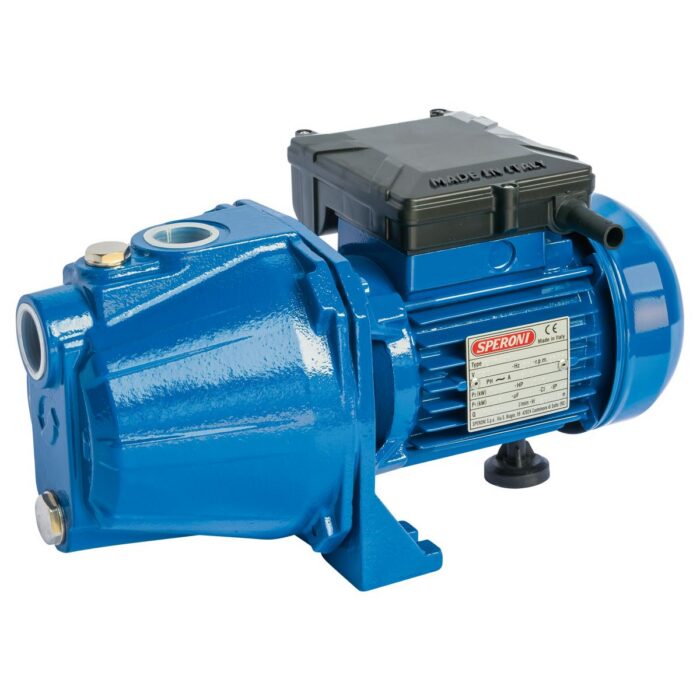

Speroni CAM100 Shallow Well Jet Pump – 1HP – Single Phase

The CAM100 Shallow Well Jet Pump is a 1HP, self-priming, shallow well jet pump made by Speroni.

Made in Italy.


In Stock



Self-priming shallow well jet water pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to 26 ft. depth and work perfectly even in soda water. Suitable for water lifting and distribution in domestic fittings by small and medium-sized tanks.


Operating Conditions

  • Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
  • Temperature max. liquid: 95°F (for other uses)
  • Ambient temperature up to 104°F
  • Total suction lift up to 26.2 ft.
  • Continuous duty


  • Single-phase 110/230V-60Hz
  • Insulation Class F
  • Protection IP 44


  • Pump body: Cast Iron
  • Motor Support: Cast Iron
  • Impeller: Stainless Steel 304
  • Diffuser: Noryl
  • Pump flange: Stainless Steel 304
  • Shaft with rotor: Stainless Steel 304
  • Mechanical seal: Ceramic/Graphite/NBR

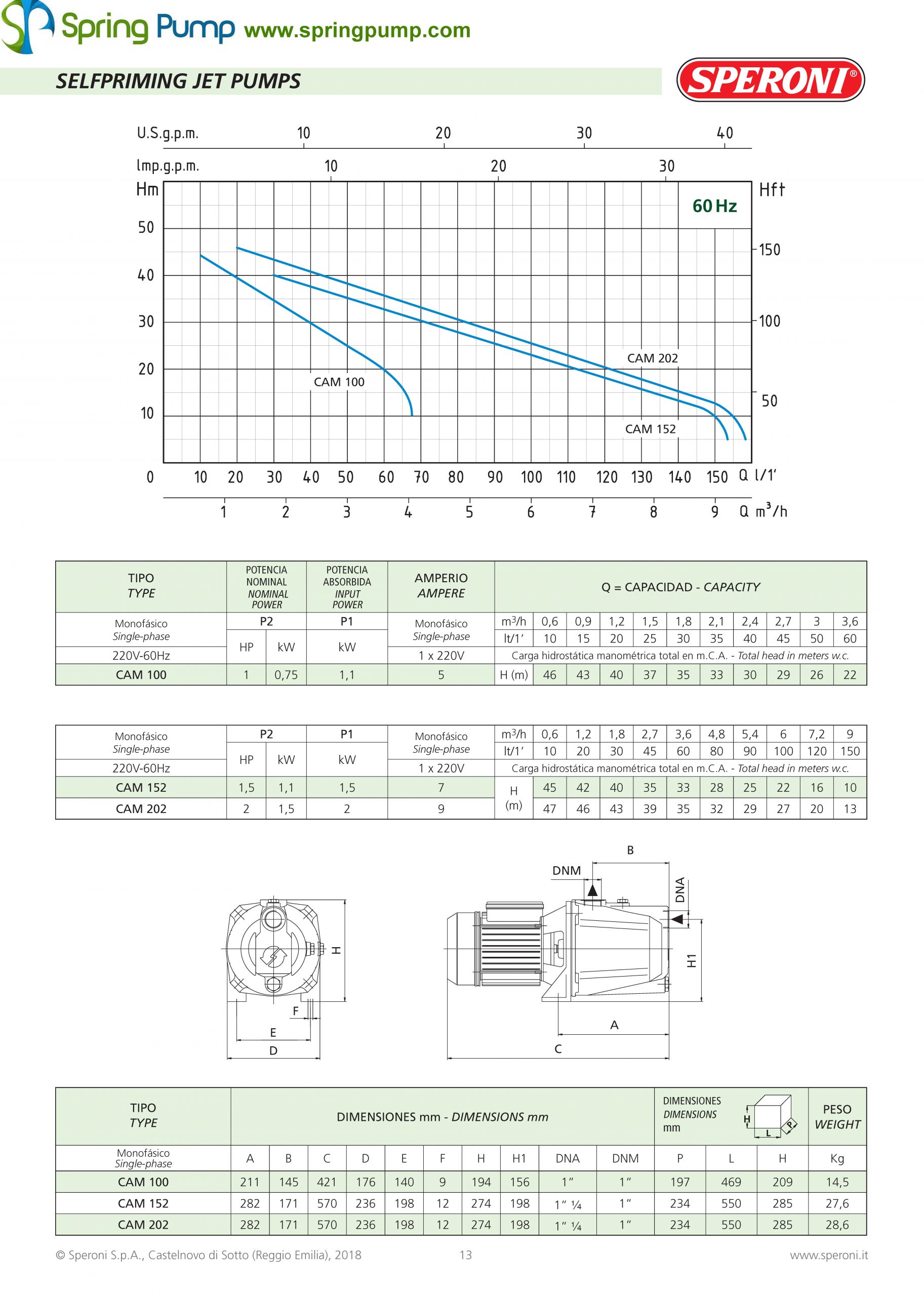

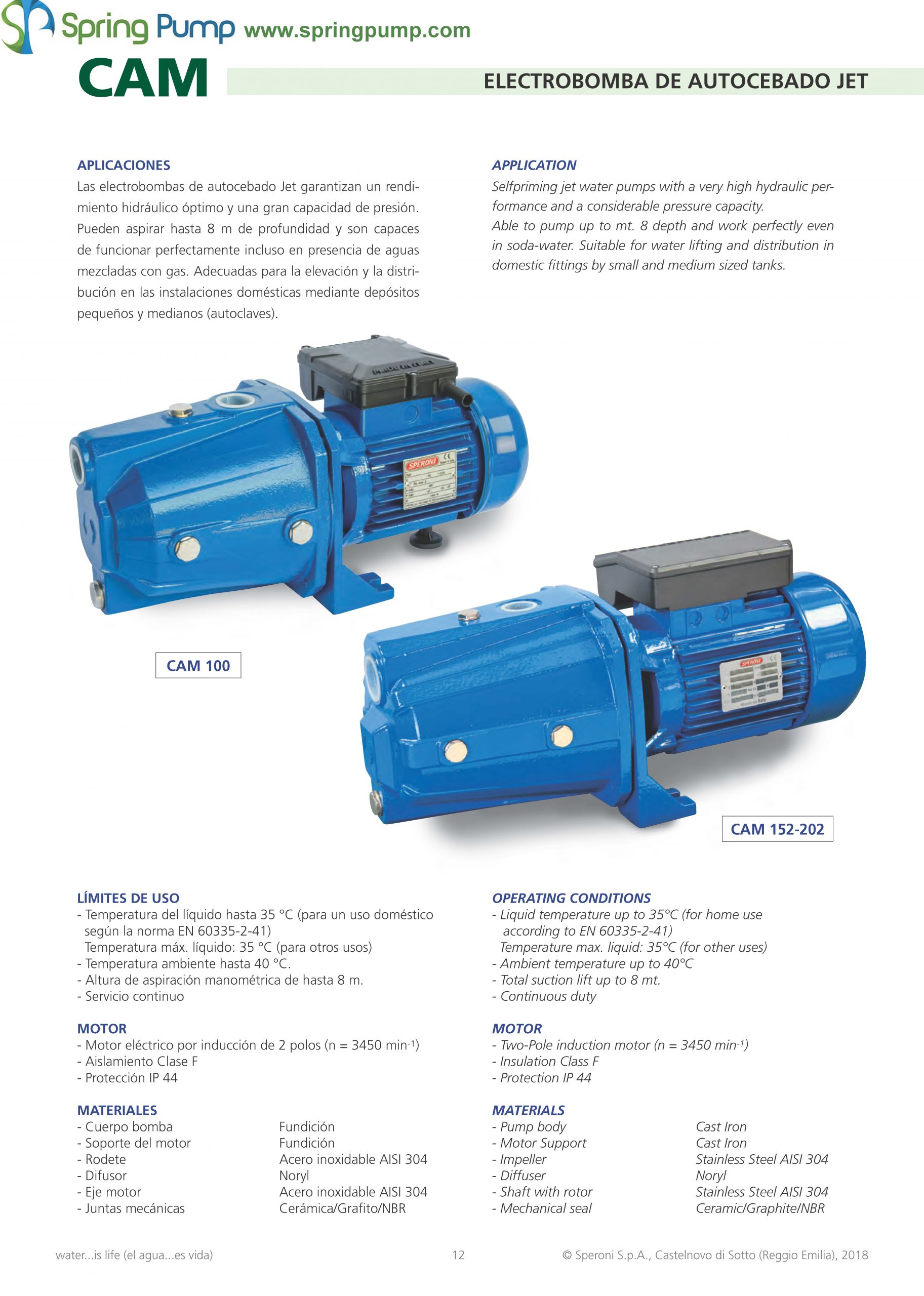

Download Catalog: SpringPump-SPERONI-Catalog-CAM100-152-202.pdf

1 Year Warranty


Technical Specifications

Model CAM100
Brand Speroni
Manufacturer’s Warranty 1-year Limited Warranty
Impeller Material Stainless Steel 304
Port Size (in.) 1″
Flow (GPH) 948 GPH
Volts 110/220V – Single Phase
AMP 12.5 / 5.0
Max. Total Head (ft.) 151ft
Max. Suction Lift (ft.) 26.2ft
Max. PSI 67psi
Suction Port (in.) 1″
Discharge Port (in.) 1″
Self-Priming Yes
Dimensions L x W x H (in.) 16.6″ x 7″ x 7.7″
Product Weight (lbs.) 32lbs

Additional information

Weight 32 lbs
Dimensions 16.6 × 7 × 7.7 in
