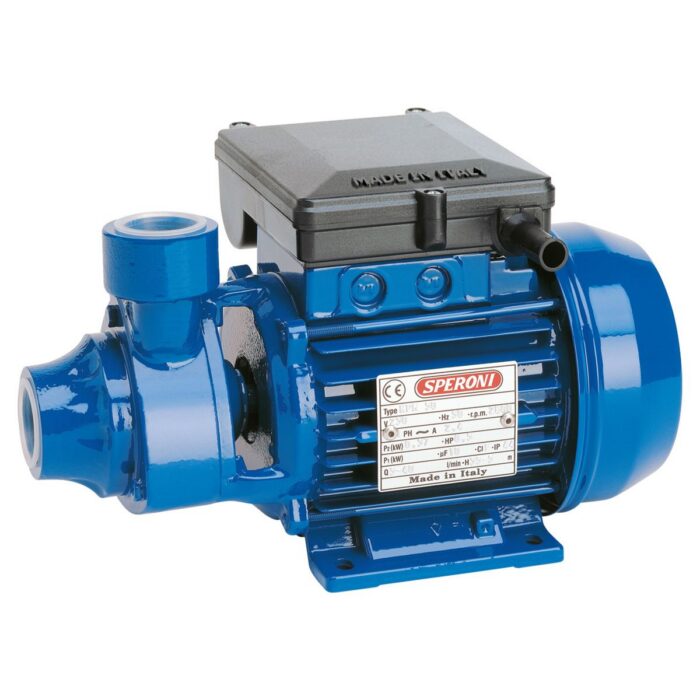

Speroni Booster Pump For Clear Water – KPM50 – Single Phase

The KPM50 is a 0.5 Hp, 554 GPH booster water pump made by Speroni.
Made in Italy.

119.99$

In Stock
SKU: 1810100 Categories: ,

Description

Application

Volumetric water pumps able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units. For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solid impurities.

Features

Operating Conditions

  • Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
  • Temperature max. liquid: 140°F (for other uses)
  • Ambient temperature up to 104°F
  • Total suction lift up to 23 ft.
  • Continuous duty

Motor

  • Single-phase 110/220V – 60Hz
  • Two-Pole induction motor (n = 3450 min-1)
  • Insulation Class F
  • Protection IP 44

Materials

  • Pump body: Cast Iron
  • Motor Support: Cast Iron
  • Impeller: Brass
  • Shaft with rotor:  Stainless Steel AISI 304
  • Mechanical seal (50-80): Ceramic/Graphite/NBR

Download:

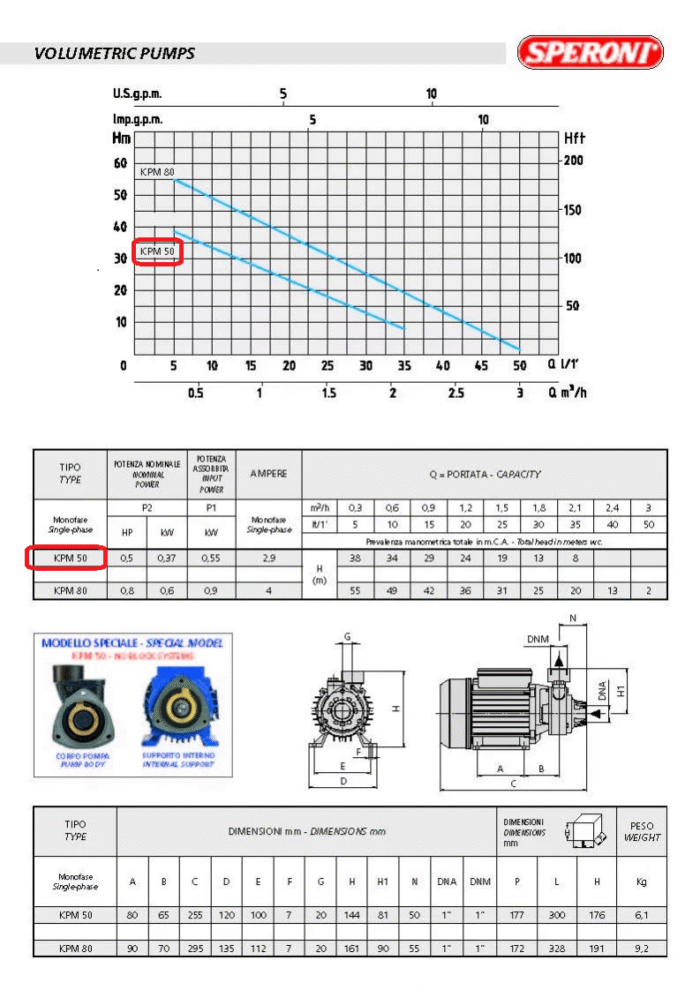

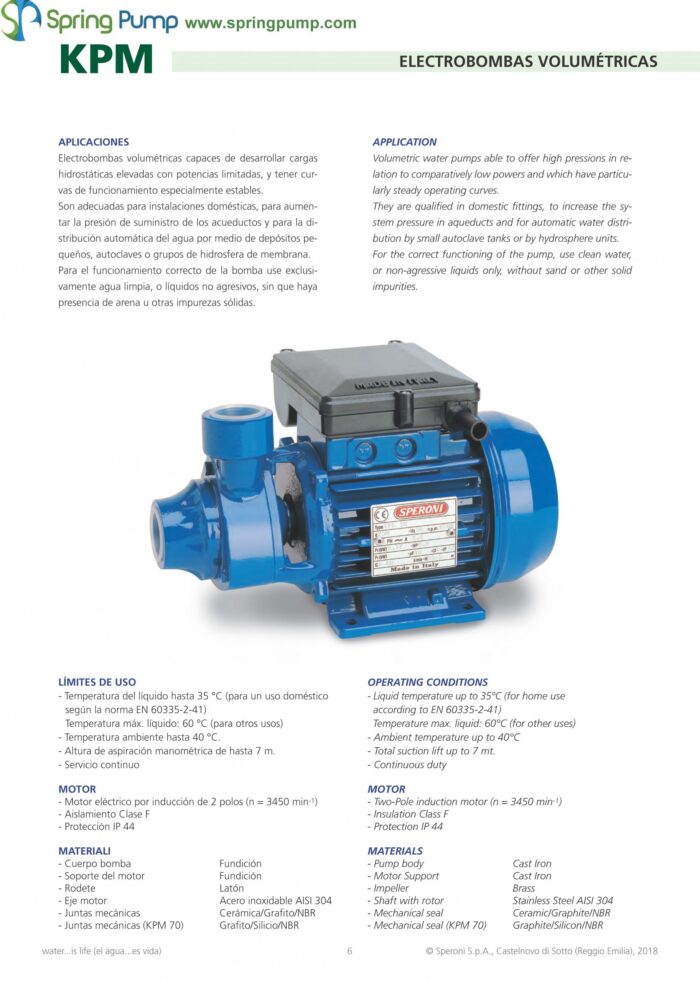

Catalog – KPM-KFM.pdf

User Manual-KPM-KFM-AKM.pdf

1 Year Warranty

Technical Specifications

Model KPM50
Brand Speroni
Manufacturer’s Warranty 1-year Limited Warranty
Ship Weight 14 lbs
Port Size (in.) 1″
Flow (GPH) 554
HP 0.5
VoltsAMP 110V

AMP 220V

110/220V –  Single Phase5.7

2.9

Max. Total Head (ft.) 125
Max. Suction Lift (ft.) 23
Max. PSI 55
Suction Port (in.) 1″
Discharge Port (in.) 1″
Self-Priming No
Dimensions L x W x H (in.) 8.8 x 4.8 x 5.6
Product Weight (lbs.) 13.5

Additional information

Weight 13.5 lbs
Dimensions 8.8 × 4.8 × 5.6 in
Brand

HP

Phase

Voltage
