Description
Gol Pumps 3HP Encapsulated Resin-Filled Motor – High-Performance Submersible Well Pump
Gol Pumps’ 3HP encapsulated resin-filled motor is designed for 4-inch and larger wells, offering exceptional durability, energy efficiency, and reliable performance. Engineered to meet stringent industry standards, this stainless steel submersible well pump is 100% tested before shipment and comes with a control panel included for seamless operation.
Pump Specifications:
- Max Head: 460 ft
- Max Flow Rate: 31.5 GPM
- Discharge Size: 1 1/2″
- Horsepower: 3 HP
- Pump Material: Stainless Steel 304
- Pump Model: SP 2515
Key Product Advantages:
✔ Hermetically sealed stator with anti-tracking resin to prevent motor burnout
✔ High-efficiency design reduces operational costs and enhances performance
✔ Durable copper wiring for reliable electrical conductivity
✔ Pressure equalizing diaphragm for consistent water flow
✔ Removable lead connector for easy maintenance and quick installation
✔ Control boxes available for single-phase motors
✔ Standard NEMA mounting dimensions for universal compatibility
Technical Specifications:
- Upper Bracket: Cataphoresis-treated cast iron with SS304 cover cap
- Protection Rating: IP68 (fully submersible)
- Start Frequency: Up to 20 starts per hour at regular intervals
- Sealing: Sand slinger and lip seal for enhanced durability
- Insulation Class: F
- Rated Ambient Temperature: 86°C
- Cooling Requirement: Minimum 0.08 m/s water flow speed
- Installation: Suitable for vertical and horizontal positioning
🔧 Includes Wire Splice Kit for hassle-free installation.
Perfect for deep well applications, agricultural irrigation, and high-demand water pumping needs. Order now and experience Gol Pumps’ superior submersible pump technology!

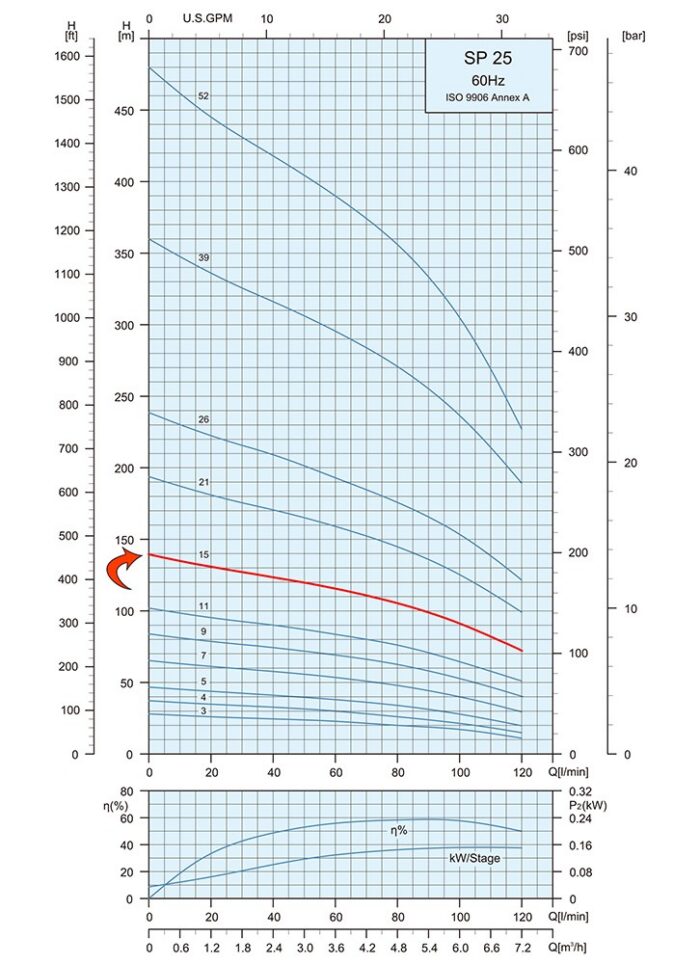

| Pump Model | Motor | Q Capacity 3500RPM | ||||||||
| kW | HP | Gal/Min | 0 | 15.9 | 18.5 | 21.1 | 23.8 | 26.4 | 31.7 | |
| SP 25-15 | 2.2 | 3 | Head (ft.) | 459.3 | 380.6 | 364.2 | 344.5 | 324.8 | 298.6 | 236.2 |
Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | ||||
| A | B | C | Pump | Motor | Pump + Motor | ||
| NPT 1 1/2″ | 4″ | 19″ | 37.6″ | 3.9″ | 9.4 | 39.6 | 49 |
Part List and Materials
| No. | Part Name | Materials |
| 01 | Discharge | AISI 304 |
| 12 | Diffuser | AISI 304 |
| 18 | Impeller | AISI 304 |
| 21 | Split Cone | AISI 304 |
| 22 | Split Cone Nut | AISI 304 |
| 24 | Stop Ring | Carbon + Graphite + PTFE |
| 32 | Neck Ring Retainer | AISI 304 |
| 34 | Strainer | AISI 304 |
| 36 | Suction Interconnector | AISI 304 |
| 37 | Coupling | AISI 304 |
| 40 | Pump Shaft | AISI 304 |
| 47 | Strap | AISI 304 |
| 52 | Cable Guard | AISI 304 |
| 87 | Neck Ring | AISI 304 + HNBR |
| 88 | Nut | AISI 304 |
| 89 | Bearing | HNBR |
