Name: 3HP Submersible Motor 47GPM Deep Well Water Pump – 230V – 3P – 4″ – 420ft Motor with Splice kit
SKU: 7060116
Availability: InStock

3HP Submersible Motor 47GPM Deep Well Water Pump – 230V – 3P – 4″ – 420ft Motor with Splice kit

898.00$

The Gol Pumps 3HP Submersible Well Pump (ST 3514) is engineered for deep well applications, delivering high efficiency and reliable water flow for agriculture, irrigation, and industrial water systems. Built with durable Noryl material, this heavy-duty submersible pump provides exceptional corrosion resistance, energy-efficient operation, and long-lasting performance. With a maximum flow rate of 47 GPM and a head capacity of 420 feet, this 4-inch deep well pump ensures consistent and powerful water delivery for demanding environments.

Gol Pumps 3HP Submersible Well Pump – High-Performance Deep Well Water Pump, 47 GPM, 420 ft Head, 4” Pump for Irrigation & Industrial Use

Pump Specifications:

Max Head: 420 ft
Max Flow Rate: 47 GPM
Discharge Size: 2” NPT
Horsepower: 3 HP
Pump Material: Noryl
Pump Model: ST 3514

Key Features & Benefits:

Encapsulated resin-filled stator prevents motor burnout and extends pump life
High-efficiency motor lower energy consumption and operating costs
Heavy-duty Noryl construction provides superior corrosion and abrasion resistance
Pressure equalizing diaphragm maintains consistent pressure and enhances longevity
Premium copper wiring ensures reliable electrical performance
Removable lead connector allows easy installation and maintenance
Compatible with single-phase control boxes for seamless operation
Standard NEMA mounting dimensions for universal compatibility

Technical Specifications:

Upper Bracket: Cataphoresis-treated cast iron with SS304 stainless steel cover cap
Protection Rating: IP68 (fully submersible)
Max Starts Per Hour: Up to 20 at regular intervals
Sealing System: Sand slinger and lip seal for enhanced durability
Insulation Class: F
Rated Ambient Temperature: 86°F
Cooling Requirement: Minimum 0.08 m/s water flow speed
Installation Orientation: Supports both vertical and horizontal installation

Includes Wire Splice Kit for a secure and hassle-free setup.

Perfect for deep wells, irrigation systems, agricultural use, and municipal water supply. Order the Gol Pumps ST 3514 today for efficient, high-performance water pumping!

Model	Pump	ST 35-14
Model	Motor	4CF4956
Brand		Gol Pumps
Manufacturer’s Warranty		1 years Limited Warranty
P2	kW	2.2
P2	HP	3
Service Factor		1.15
Material	Pump	Noryl
Material	Motor	Noryl
Voltage – Phase		230V – Three Phase
Wire		–
In	A	9.8
Imax	A	10.6
Istart	A	56
PF (%)	Allowable Load	0.73
PF (%)	Overload Factor	0.77
Efficiency (%)	Allowable Load	77.1
Efficiency (%)	Overload Factor	77.2
R.P.M		3450
Thrust	N	4000
Capacitor	UF	No
Cable	AWG	14
Cable	Length (ft.)	8.2
Production Country		Taiwan

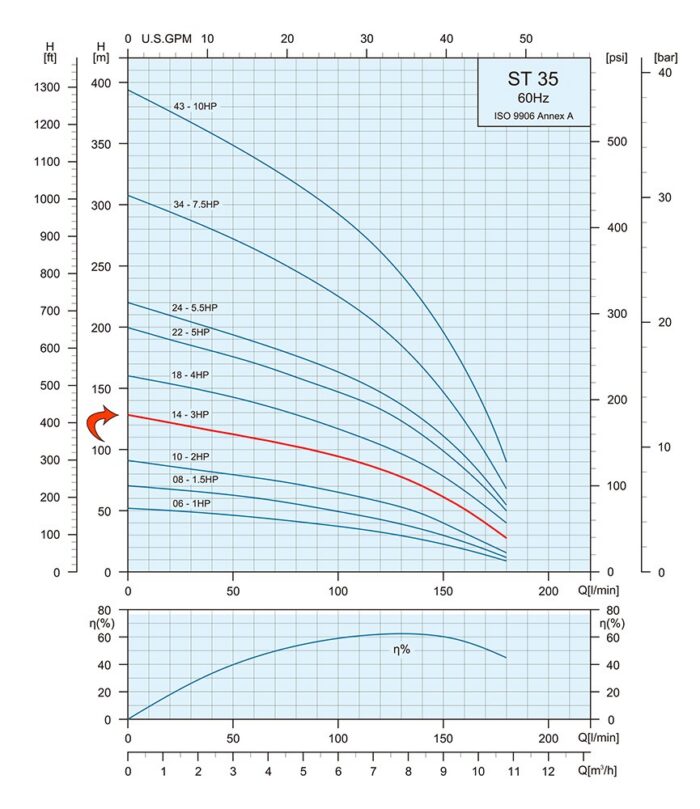

Performance Curves

Pump Model	Motor		Q Capacity 3500RPM
Pump Model	kW	HP	Gal/Min	0	15.9	18.5	21.2	23.8	26.4	31.7	37	42.3	47.6
ST 35-14	2.2	3	Head (ft.)	420	357.6	347.8	334.6	324.8	308.4	272.3	229.7	167.3	95.1

Dimensions and Weights

Outlet	Motor Dia.	Dimensions (inch)				Weight (lb)
		A	B	C	D	Pump	Motor	Pump + Motor
NPT 2″	4″	23.9″	2″	3.9″	39.5″	12.5	33.2	45.7

Part List and Materials

No.	Part Name	Materials
1	Discharge Head	AISI 304
4	Check Valve Cone	AISI 304
6	Check Valve Retaining Ring	AISI 304
8	Bearing Spider	Glass Filled Polycarbonate
12	Diffuser	Glass Filled Polycarbonate
13	Bowl	AISI 304
18	Impeller	Noryl
34	Strainer	AISI 304
40	Pump Shaft / Coupling	AISI 304
42	Shaft Sleeve	AISI 304 or Norly
48	Pump Casing	AISI 304
52	Cable Guard	AISI 304
86	O-Ring	NBR
92	Bearing	Polyacetal

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

3HP Submersible Motor 47GPM Deep Well Water Pump – 230V – 3P – 4″ – 420ft Motor with Splice kit - Image 1

3HP Submersible Motor 47GPM Deep Well Water Pump – 230V – 3P – 4″ – 420ft Motor with Splice kit - Image 2

Click to enlarge

3HP Submersible Motor 47GPM Deep Well Water Pump – 230V – 3P – 4″ – 420ft Motor with Splice kit

3HP Submersible Motor 47GPM Deep Well Water Pump – 230V – 3P – 4″ – 420ft Motor with Splice kit - Image 3

3HP Submersible Motor 47GPM Deep Well Water Pump – 230V – 3P – 4″ – 420ft Motor with Splice kit - Image 4

3HP Submersible Motor 47GPM Deep Well Water Pump – 230V – 3P – 4″ – 420ft Motor with Splice kit - Image 5

Add to compare

Add to wishlist

SKU: 7060116 Categories: Irrigation Pumps, Residential Pumps, Sprinkler Pumps, Submersible Pumps, Submersibles

Description

Model	Pump	ST 35-14
Model	Motor	4CF4956
Brand		Gol Pumps
Manufacturer’s Warranty		1 years Limited Warranty
P2	kW	2.2
P2	HP	3
Service Factor		1.15
Material	Pump	Noryl
Material	Motor	Noryl
Voltage – Phase		230V – Three Phase
Wire		–
In	A	9.8
Imax	A	10.6
Istart	A	56
PF (%)	Allowable Load	0.73
PF (%)	Overload Factor	0.77
Efficiency (%)	Allowable Load	77.1
Efficiency (%)	Overload Factor	77.2
R.P.M		3450
Thrust	N	4000
Capacitor	UF	No
Cable	AWG	14
Cable	Length (ft.)	8.2
Production Country		Taiwan

Pump Model	Motor		Q Capacity 3500RPM
Pump Model	kW	HP	Gal/Min	0	15.9	18.5	21.2	23.8	26.4	31.7	37	42.3	47.6
ST 35-14	2.2	3	Head (ft.)	420	357.6	347.8	334.6	324.8	308.4	272.3	229.7	167.3	95.1

Outlet	Motor Dia.	Dimensions (inch)				Weight (lb)
		A	B	C	D	Pump	Motor	Pump + Motor
NPT 2″	4″	23.9″	2″	3.9″	39.5″	12.5	33.2	45.7

No.	Part Name	Materials
1	Discharge Head	AISI 304
4	Check Valve Cone	AISI 304
6	Check Valve Retaining Ring	AISI 304
8	Bearing Spider	Glass Filled Polycarbonate
12	Diffuser	Glass Filled Polycarbonate
13	Bowl	AISI 304
18	Impeller	Noryl
34	Strainer	AISI 304
40	Pump Shaft / Coupling	AISI 304
42	Shaft Sleeve	AISI 304 or Norly
48	Pump Casing	AISI 304
52	Cable Guard	AISI 304
86	O-Ring	NBR
92	Bearing	Polyacetal
