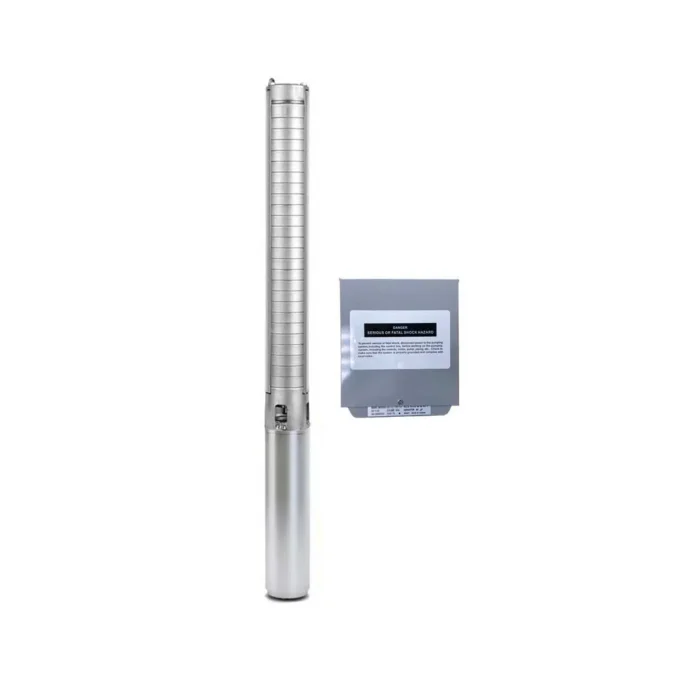

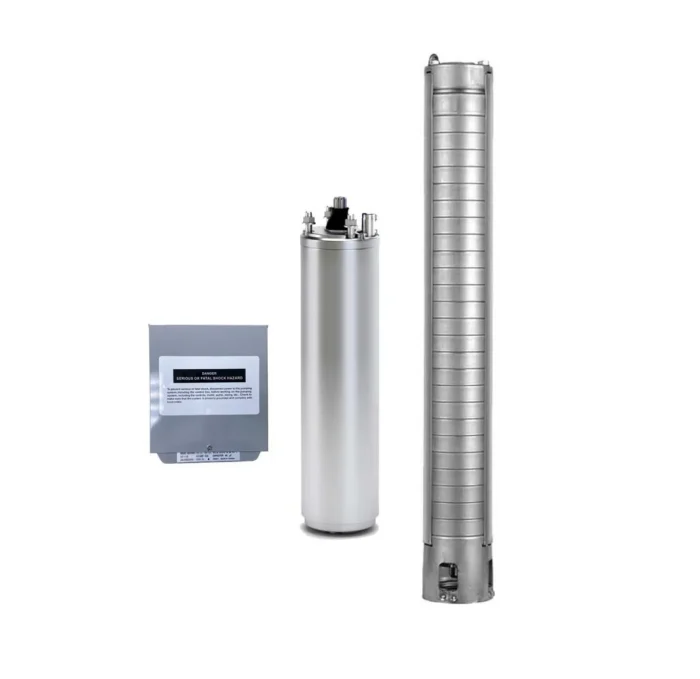

5HP Submersible 3-Wire Motor 92GPM Deep Well Potable Water Pump – 230V – 1P – SS304 Motor with Splice kit

Gol Pumps 5HP Stainless Steel Submersible Well Pump – High-Performance Deep Well Pump, 92 GPM, 250 ft Head, 4” Pump for Irrigation & Industrial Use

The Gol Pumps 5HP Submersible Well Pump (SP 7008) is a high-efficiency deep well pump designed for agriculture, irrigation, and industrial water systems. Made from corrosion-resistant stainless steel 304, this heavy-duty submersible pump offers exceptional durability, high flow rates, and reliable performance. With a maximum flow of 92 GPM and a head capacity of 250 feet, it ensures efficient water delivery for deep wells of 4 inches or larger. The encapsulated resin-filled motor prevents burnout, extending pump life for long-term use.

Pump Specifications:

• Max Head: 250 ft
• Max Flow Rate: 92 GPM
• Discharge Size: 2” NPT
• Horsepower: 5 HP
• Pump Material: Stainless Steel 304
• Pump Model: SP 7008

Key Features & Benefits:

Encapsulated resin-filled stator prevents motor burnout and ensure long-lasting operation
High-efficiency design reduces energy consumption and operational costs
Heavy-duty stainless steel 304 construction provides superior corrosion and abrasion resistance
Pressure equalizing diaphragm for consistent water pressure and pump longevity
Premium copper wiring enhances conductivity and reliability
Removable lead connector for easy installation and maintenance

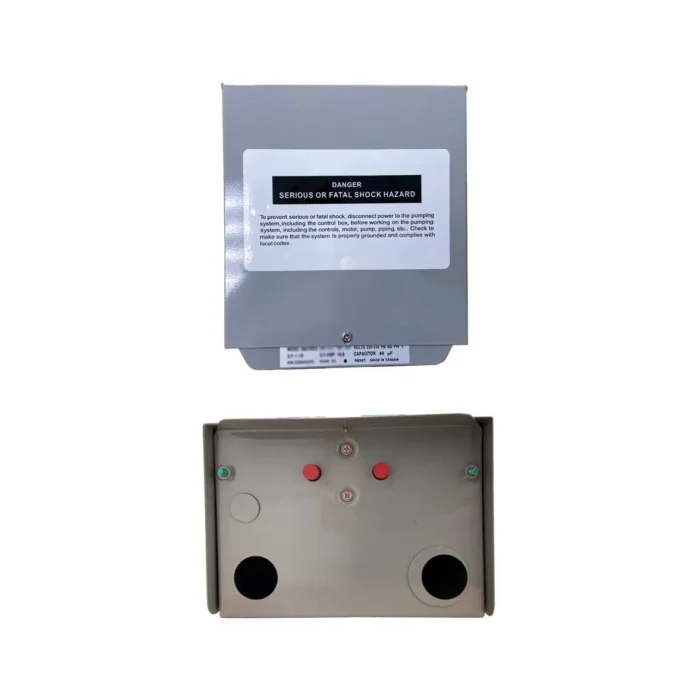

Compatible with single-phase control boxes for seamless integration
Standard NEMA mounting dimensions for universal installation

Technical Specifications:

• Upper Bracket: Cataphoresis-treated cast iron with SS304 stainless steel cover cap
• Protection Rating: IP68 (fully submersible)
• Max Starts Per Hour: Up to 20 at regular intervals
• Sealing System: Sand slinger and lip seal for enhanced durability
• Insulation Class: F
• Rated Ambient Temperature: 86°F
• Cooling Requirement: Minimum 0.08 m/s water flow speed
• Installation Orientation: Supports both vertical and horizontal installation

🔧 Includes Wire Splice Kit for quick and secure setup.

Perfect for deep wells, irrigation systems, agricultural use, and municipal water supply. Order the Gol Pumps SP 7008 today for high-performance, energy-efficient water pumping!
