Description
Applications
- Pressure Boosting
- Residential Homes
- Farming applications
- Residential Irrigation
- Garden Irrigation Drip/low flow
- Hydroponics
- rainwater harvesting
- Water supply from shallow wells
Features

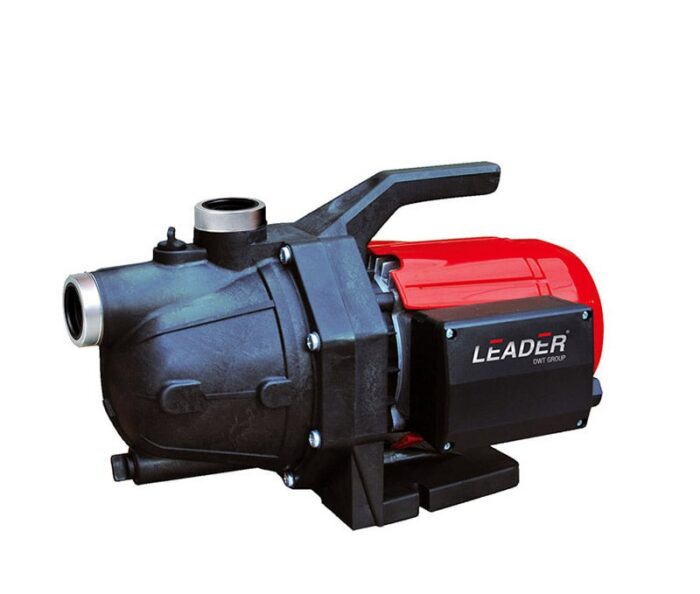

- JET self-priming centrifugal electric pump
- Pump body in techno-polymer
- Anti-corrosive and rust-proof materials
- Motor with thermic overload protection
- The double sealing system between motor and hydraulic part
- Supplied with power cable with plug, switch, and self-sealing fitting
Advantages
- Air bubbles are expelled and no water is lost on the suction
- Lightweight and easy to handle
- Easy to transport
Benefits
- Ability to operate in the presence of air bubbles and small quantities of sand
- Practical and flexible for use in domestic pressure boosting, irrigation, gardening, and other water supply applications
- Good resistance to frost

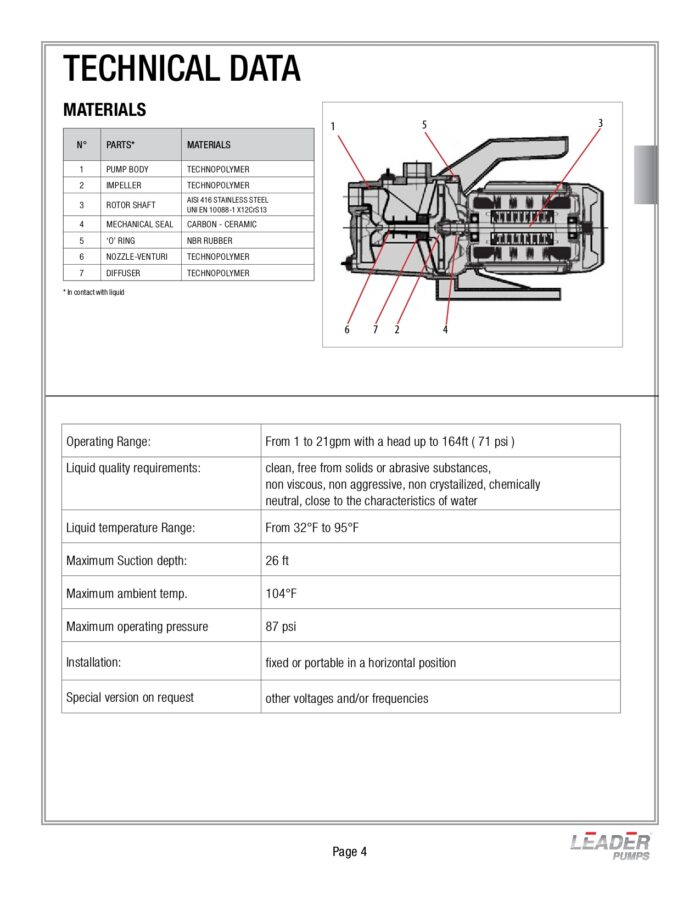

Constructional Features of the Pump
- Technopolymer pump body and motor support
- Technopolymer impeller, diffuser, venturi, and nozzle
- Carbon/ceramic mechanical seal.
Constructional Features of the Motor
- Induction motor closed and cooled with external ventilation
- Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and a long life
- Built-in thermal and current overload protection on ECOJET 110
- Built-in thermal and resettable overload protection on ECOJET 120/130
- Capacitor permanently in circuit
- Manufactured according to UL 778 -2010 & CSA 108-1
- Motor protection: NEMA3
- Terminal Box protection: NEMA3
- Insulation class: F
- Standard voltage: 115v 60Hz

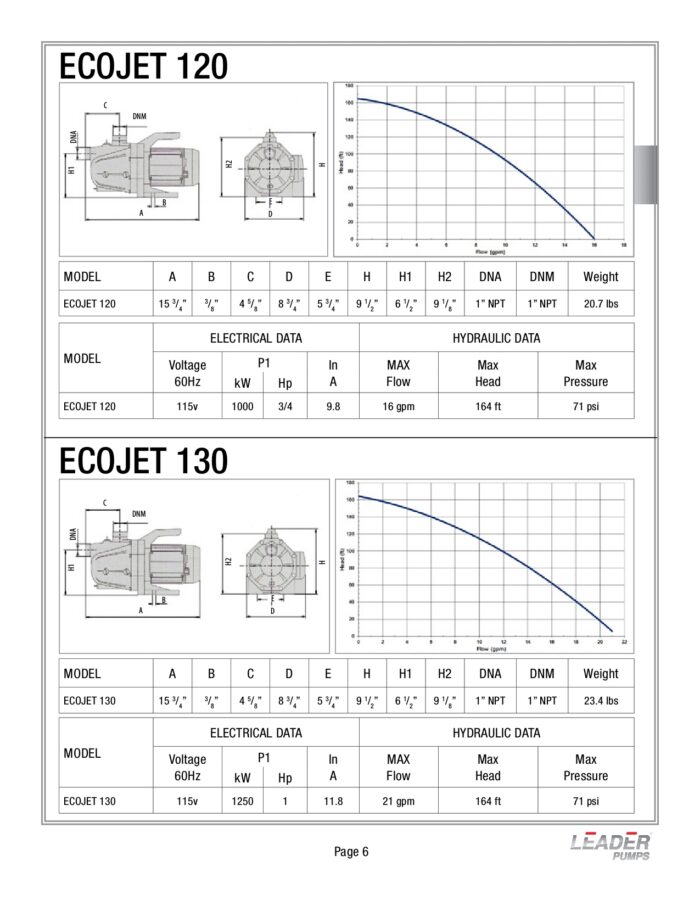

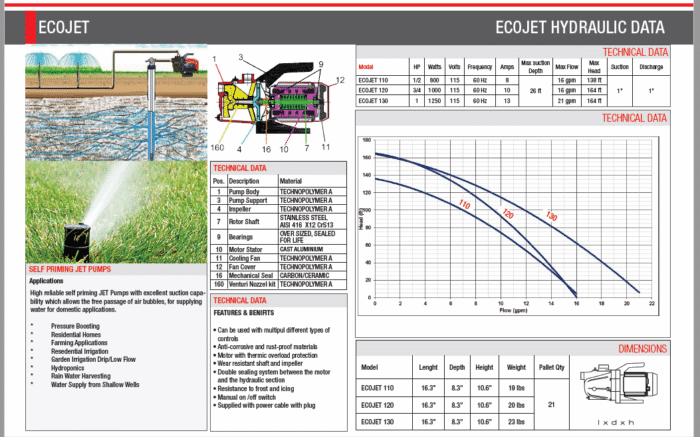

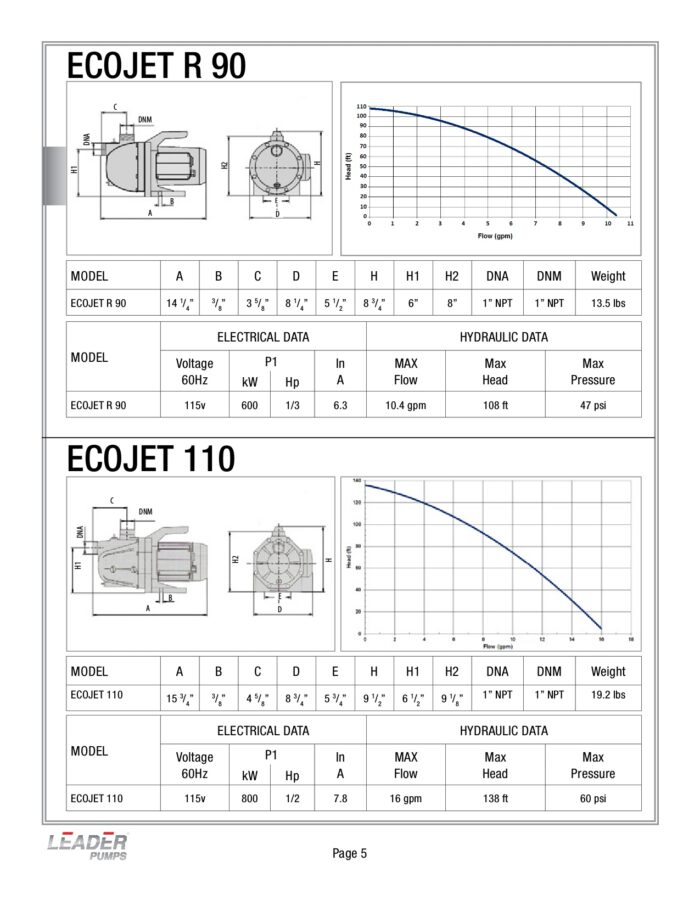

Technical Specifications
- Operating Range: From 1 to 16 GPM with a head up to 164 ft ( 71 psi )
- Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
- Liquid temperature Range: From 32°F to 95°F
- Maximum Suction depth: 26 ft
- Maximum ambient temperature: 104°F
- Maximum operating pressure: 87 psi
- Installation: fixed or portable in a horizontal position
- Special version: on request other voltages and/or frequencies
- Power Supply: 115v 60Hz
ECOJET – OPERATING INSTRUCTIONS. PDF
More Details
| Brand | LEADER |
| HP | 0.75 |
| Watts | 600 |
| Volts | 115 |
| Frequency | 60 Hz |
| Amps | 10 |
| Max Suction Depth | 26 ft |
| Max Flow | 16 GPM |
| Max Head | 164 ft |
| Max Pressure | 71 psi |
| Suction | 1 in |
| Discharge | 1 in |
| Dimensions | 16.3″ x 8.3″ x 10.6″ |
| Weight | 20.7 lbs |
