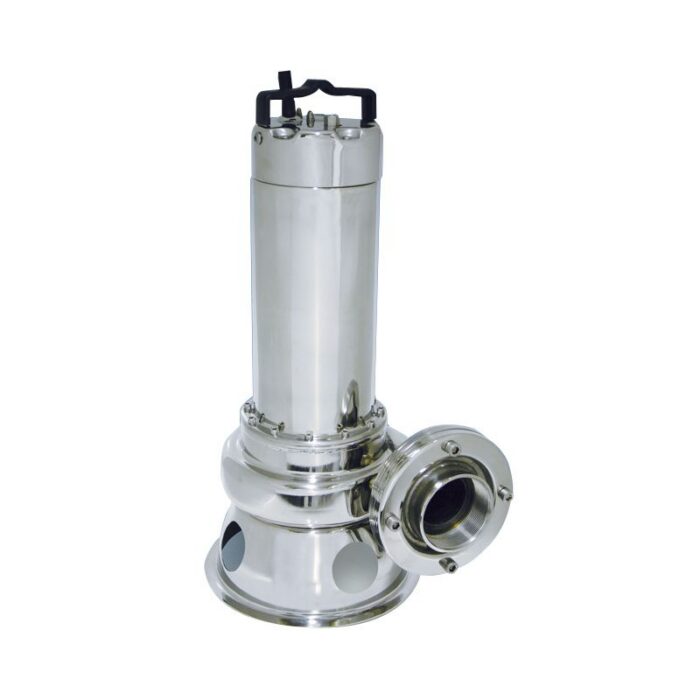

JENAX-F 600 Manual – Sewage Submersible Pump- 8.6HP-Three Phase

Submersible single-channel electric pump for very foul wastewater, featuring a counter flange

Applications

  • Decantation pit, slurry collection pit pump out.
  • Lavatory/foul water with floating/non-floating solids and fiber suspensoids pump out.
  • Domestic and industrial lavatory/black water handling systems.

3,798.00$

In Stock

Description

Submersible single-channel electric pump for very foul wastewater, featuring a counter flange.

Applications

  • Decantation pit, slurry collection pit pump out.
  • Lavatory/foul water with floating/non-floating solids and fiber suspensoids pump out.
  • Domestic and industrial lavatory/black water handling systems.

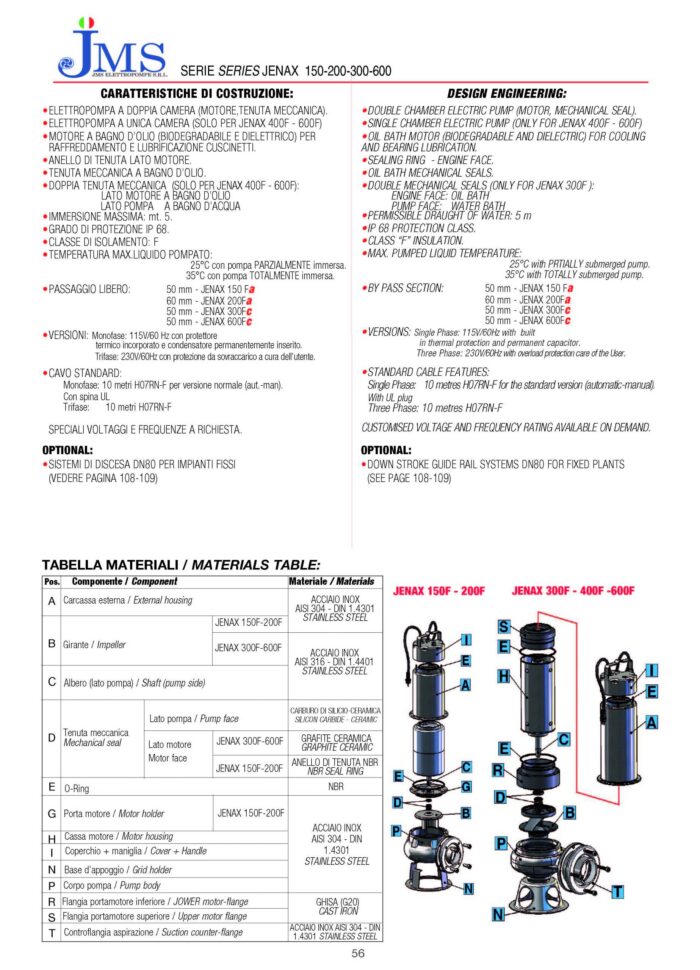

Design engineering

  • Double chamber electric pump (motor, mechanical seal).
  • Single chamber electric pump (only for JENAX 300F – 600F).
  • Oil bath motor (biodegradable and dielectric) for cooling and bearing lubrication.
  • Sealing ring – engine face.
  • Oil bath mechanical seals.
  • Double mechanical seals (only for JENAX 300F – 600F): engine face: oil bath/pump face: water bath.
  • Permissible draught of water: 5 mt.
  • IP68 protection class.
  • Class “F” insulation.

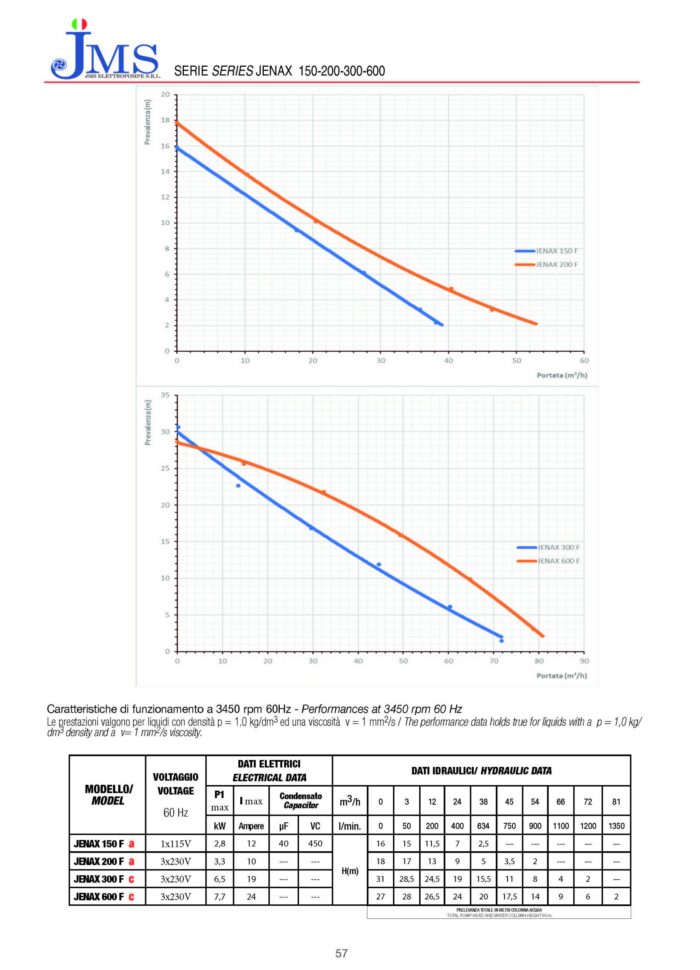

  • Max Head: 88.5 ft.
  • Max Flow: 21,600 Gph
  • Max. pumped liquid temperature: 25°C with partially submerged pump. / 35°C with a totally submerged pump.
  • Bypass section:
    – 1.96 inch – JENAX 600F.
  • Three Phase: 230V/60Hz with built-in thermal protection and permanent capacitor.
  • Motor power:
  • Manual Version without floater.
  • Standard cable features: 32.8 ft.  H07RN-F for the standard version (automatic-manual).

 Made In Italy

Made in Italy



Additional information

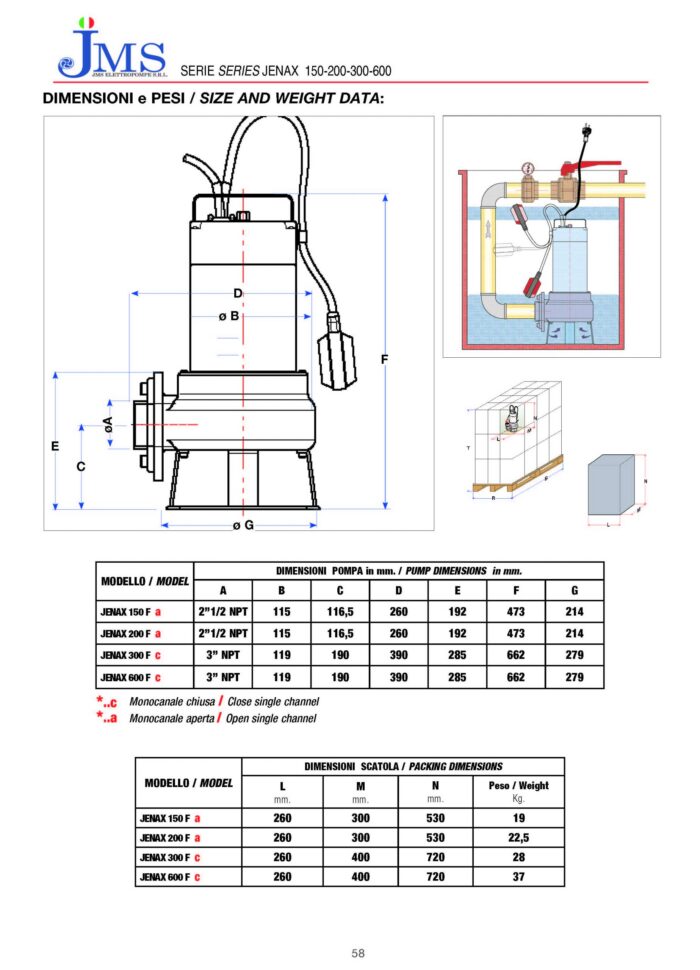

Weight 62 lbs
Dimensions 10.5 × 16 × 29 in
