Description
Applications
The SAER Self Priming stainless steel well Jet Pump M94, 0.5 HP, Single Phase, 115-Volt, 60 HZ, NPT TREAD, BRASS & CAST-IRON IMPELLER.
Can be used for general water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, the farm also industrial applications. Water transfer and garden watering applications. The maximum lift is 128 ft. and the Maximum flow 870 GPH.
Features
- Stainless Steel body for rugged durability
- Pressed brass impeller provides corrosion resistance
- Carbon/ceramic mechanical seal for wear resistance and long life
- The stainless steel rotor shaft is strong and resists corrosion
- Totally enclosed fan-cooled motor
More Details
- Pump body in Stainless Steel
- Diffuser in thermoplastic resin
- Mechanical seal in carbon/ceramic
- Maximum temperature of pumped liquid 5°F to 122°F
- Maximum working pressure 130.5 psi
- Maximum ambient temperature 104°F; for higher temperatures
Technical Specifications
| Model | M-94 |
| Brand | SAER-USA |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Pump Material
Impeller Material |
Stainless Steel 304
Brass |
| Port Size (in.) | 1″ |
| Flow (GPH) | 870 GPH |
| HP | 1/2 |
| Volts | 115V – Single Phase |
| AMP | 7.2A |
| Max. Total Head (ft.) | 128ft |
| Max. Suction Lift (ft.) | 17ft |
| Max. PSI | 56psi |
| Suction Port (in.) | 1″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 15.5″ x 7.8″ x 8.1″ |
| Product Weight (lbs.) | 22lbs |

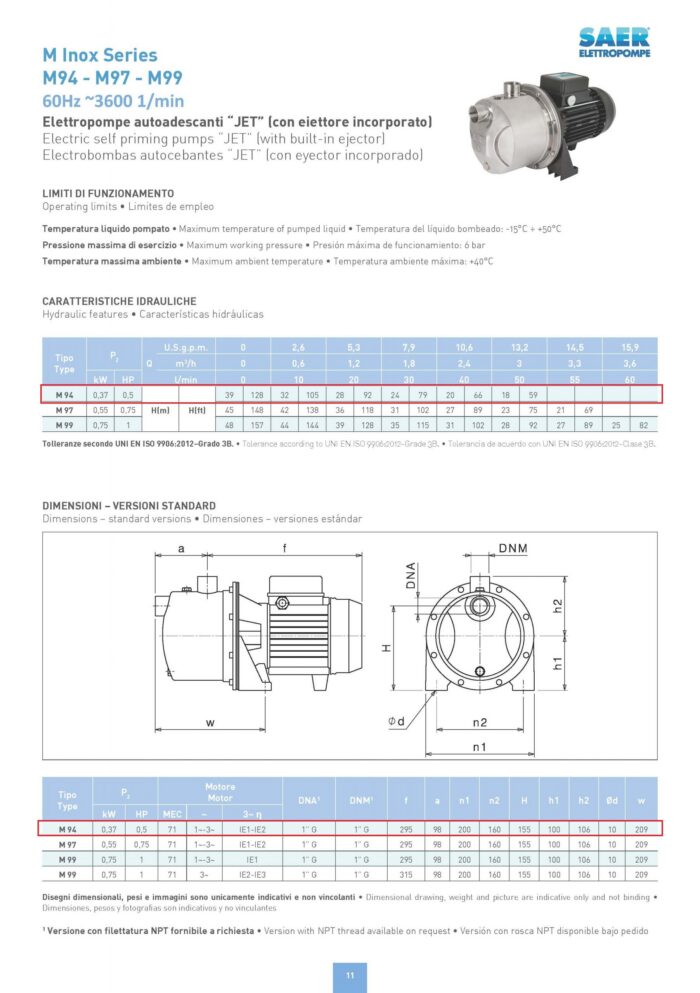

Download Catalog: SpringPump-SAER-Products.pdf
| 1 Year Warranty |
