SAER – Self Priming – Jet M70 – 0.75HP
242.00$
This SAER®-USA M70 Shallow well Jet Pump is a self-priming, 0.75 Hp, 1″ NPT threaded jet pump and is ideal for water transfer, irrigation, heating/cooling systems, industrial applications, and more.
Out of stock
Description
Applications
The SAER Self Priming Cast Iron Shallow Well Jet Pump M70, 0.75 HP, Single phase, 115-Volt, 60 HZ, NPT TREAD, BRASS & CAST-IRON IMPELLER. can be used in general water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, the farm also industrial applications. Water transfer and garden watering applications. The maximum lift is 171 ft. and the Maximum flow 792 GPH.
Features
- Cast iron body for rugged durability
- Pressed brass impeller provides corrosion resistance
- Carbon/ceramic mechanical seal for wear resistance and long life
- The stainless steel rotor shaft is strong and resists corrosion
- Totally enclosed fan-cooled motor
More Details
- Pump body in cast iron
- Diffuser in thermoplastic resin
- Mechanical seal in carbon/ceramic
- Maximum temperature of pumped liquid 5°F to 122°F
- Maximum working pressure 130.5 psi
- Maximum ambient temperature 104°F

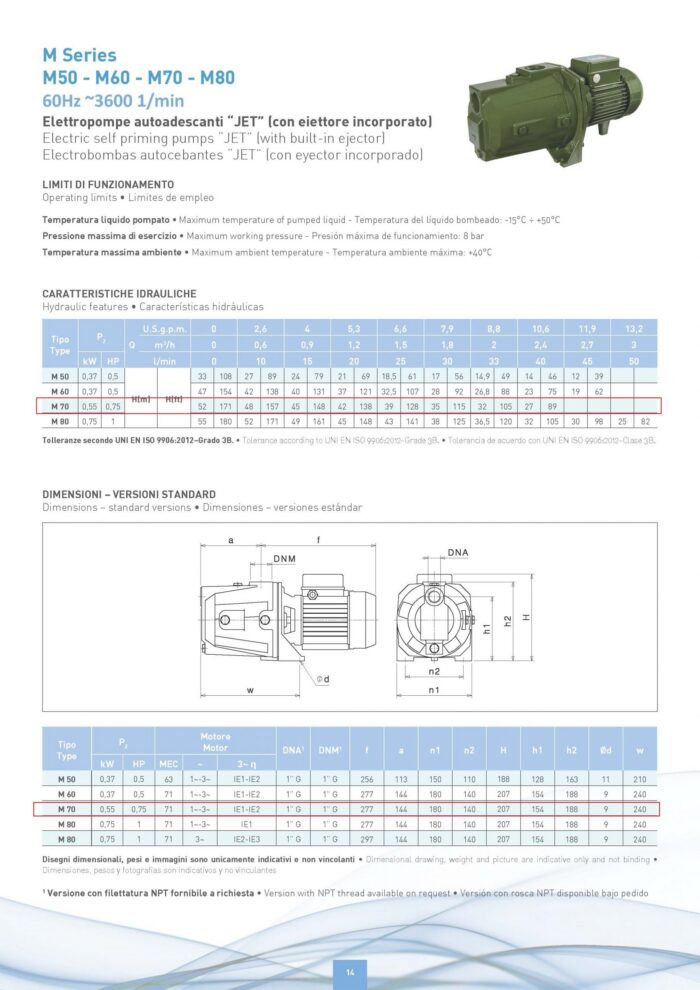

Download Catalog: SpringPump-SAER-Products.pdf
| 1 Year Warranty |
Technical Specifications
| Model | M-70 |
| Brand | SAER-USA |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Impeller Material | Brass |
| Port Size (in.) | 1 |
| Flow (GPH) | 640 |
| HP | 0.75 |
| Volts | 115V – 1 PHASE |
| Max. Total Head (ft.) | 171ft |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 75.5 |
| Suction Port (in.) | 1″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 18 x 11 x 11 |
| Product Weight (lbs.) | 33 |
Additional information
| Weight | 33 lbs |
|---|---|
| Dimensions | 16.6 × 7.1 × 8.2 in |
| Brand | |
| HP | |
| Phase | |
| Voltage |
