Description
Applications

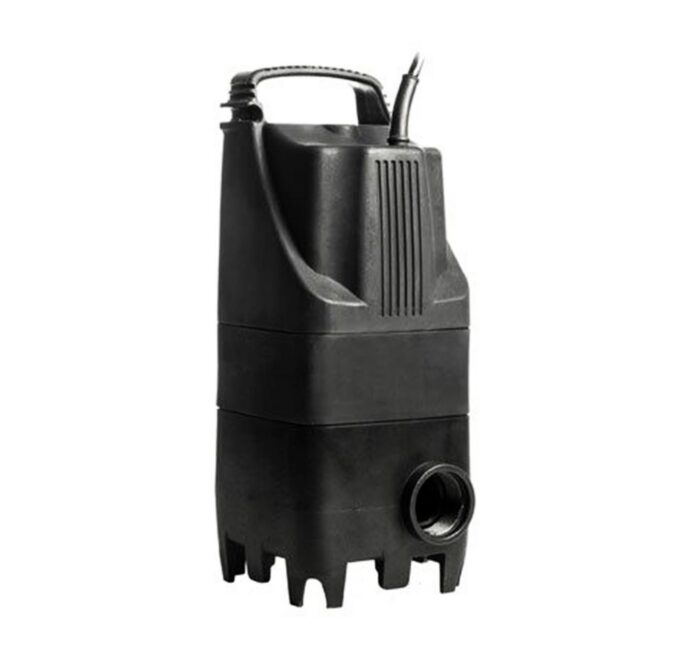

This product is a submersible pump to circulate water in garden ponds, create waterfalls and play water features. It is designed to work in both horizontal and vertical installations. This pump is suitable to pump clear water containing particles with a maximum diameter up to 1” 1/4.
Features
- Plug & Play
- Designed to work in horizontal and vertical installations
- Large range to cover various requirements
- Provides Excellent flows “In a compact design”
- New Efficient motors
- 115v 60Hz
- CSA approval for USA & Canada
- New more robust motor and housing
- Built-in thermic overload
Constructional Features of the Pump
Technopolymer pump body. Technopolymer impeller, diffuser, self-priming disc. Anti-debris stainless steel strainer.
Constructional Features of the Motor
- The induction motor closed and cooled with the liquid being pumped.
- Wear-resistant shaft with triple lip seals to ensure a long life.
- Built-in thermic overload protection
- Capacitor permanently in the circuit.
- Manufactured according to UL 778 -2010 & CSA 108-1
- Motor protection: NEMA6P
- Insulation class: F
- Cable Length: 16ft
- Standard voltage: 115v 60Hz
SOLID ANSWER Technical Data. PDF
SOLID_ ANSWER_Instructions. PDF

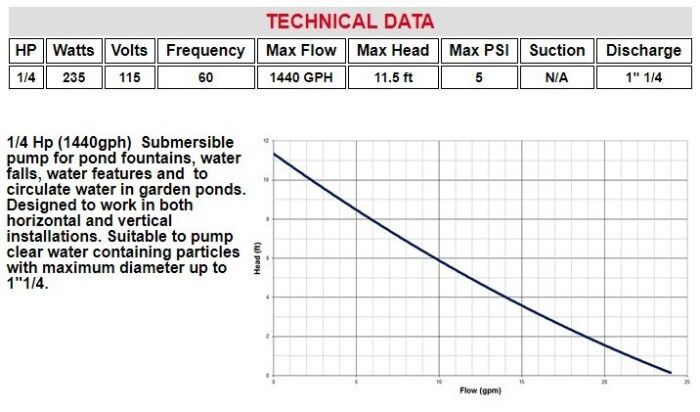

Technical Specifications
| Brand | LEADER |
| HP | 0.25 |
| Operating Range | From 5 to 24 GPM with a head up to 11.5 ft ( 5 psi ) |
| Liquid Quality Requirement | clean, free from solids or abrasive substances, nonviscous, nonaggressive, non crystallized, chemically neutral, close to the characteristics of water |
| Liquid Temperature Range | From 32°F to 95°F |
| Maximum Submersion | 16 ft |
| Maximum Ambient Temperature | 104°F |
| Maximum Solids | 1.25 in |
| Installation | fixed or portable in a vertical or horizontal position |
| Power Supply | 115v 60Hz |
| Amps | 1.9 |
| Max Flow | 24 GPM |
| Max Head | 157 ft |
| Max Pressure | 5 psi |
| Dimensions | 5.25″ x 10.5″ x 6.1″ |
| Weight | 10.5 lbs |
