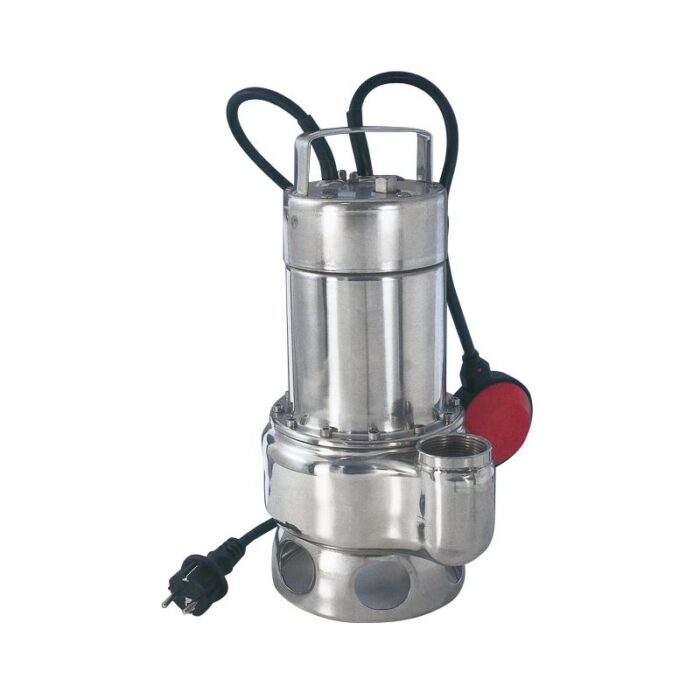

JKIPPER- 200 Auto-Sewage Submersible Pump-2HP – Single Phase

Description

Applications

• Decantation pit, slurry collection pit pump out.
• Pump out of lavatory/foul water with possible floating solids contents.
• Domestic and industrial lavatory/black water handling systems

Design engineering

• Double chamber electric pump (motor, mechanical seal).
• Oil bath motor (biodegradable and dielectric) for cooling and bearing lubrication.
• Sealing ring – engine face.
• Oil bath mechanical seals.
• Double mechanical seals: engine face: oil bath.
• Permissible draught of water: 5 m
• IP68 protection class.
• Class “F” insulation.
• Max. pumped liquid temperature: 25°C with partially submerged pump. / 35°C with a totally submerged pump.
• Bypass section:
  – 1.96 inch – JKIPPER  200
• Max Head: 42.5 ft.
• Max Flow: 7920 Gph
• Single-phase: 230V/60Hz with built-in thermal protection and permanent capacitor.
• Motor power: 1,5 kW (2 HP)
• AUTOMATIC with floater
• Standard cable features: 16.4 ft. H07RN-F

 Made In Italy
