VERTY GO 300- 1/3 HP

Multi-purpose submersible pumps for drainage, emptying, and pumping water between containers.

Specifically designed for uses in narrow pits with dimensions down to 8” x 8”.

Suitable to pump clear water containing particles with maximum diameter up to 1/4”.

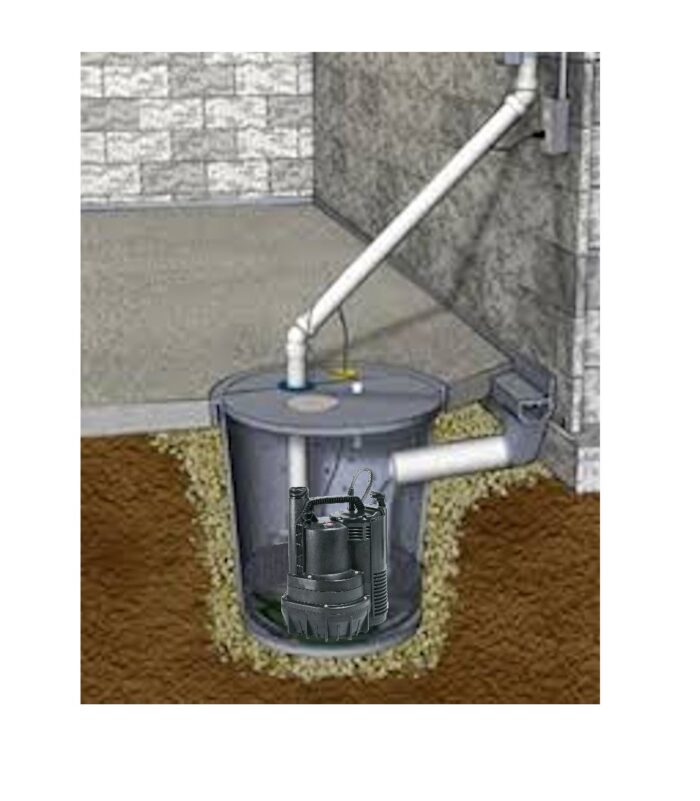

• Drainage
• Emptying sumps
• Transferring water between large containers
• Hydroponics

Technical Data

Operating Range: From 1 to 52 gpm with a head up to 30ft (13 psi)

Liquid quality requirements: Clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized, chemically neutral, close to the characteristics of water

Liquid temperature Range: From 32°F to 95°F

Maximum solids 1/4”

Maximum ambient temp. 104°F

Maximum operating pressure 13 psi

Maximum submersion 16 ft

Installation: fixed or portable in a vertical position

Special version on request other voltages and/or frequencies

Constructional features

• Technopolymer pump body.
• Technopolymer impeller.
• Technopolymer Vertical float switch.

Constructional features of the motor

• Induction motor, closed and cooled with liquid being pumped
• Wear resistant shaft with triple lip seals to ensure a long life.
• Built-in thermic overload protection
• Capacitor permanently in circuit.
• Motor protection: NEMA6P
• Insulation class: F
• Cable Length: 16ft
• Standard voltage: 115v 60Hz
