Description

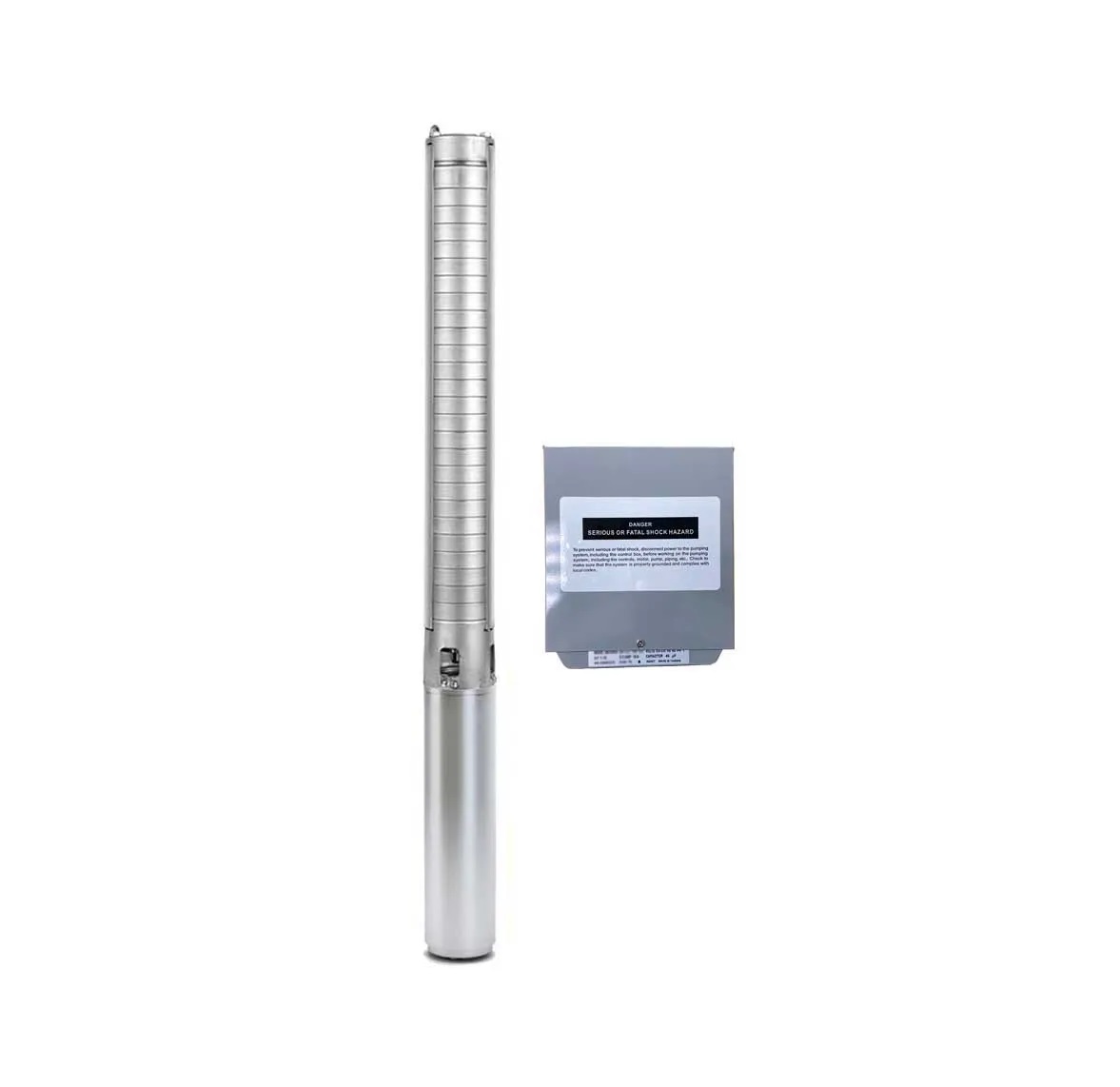

GolPumps 3HP Encapsulated Resin-Filled Motor – High-Performance Stainless Steel Submersible Well Pump
GolPumps’ 3HP encapsulated resin-filled motor is designed to meet market demands for durability, energy efficiency, and high performance in 4-inch and larger wells. Built with robust stainless steel construction, this deep well submersible pump ensures long-lasting reliability for agriculture, irrigation, and high-demand water systems. Every motor is 100% tested before shipment and comes with a control panel included for easy installation and operation.
Pump Specifications:
- Max Head: 250 ft
- Max Flow Rate: 53 GPM
- Discharge Size: 2″
- Horsepower: 3 HP
- Pump Material: Stainless Steel 304
- Pump Model: SP 4009
Key Product Features:
✔ Hermetically sealed stator with anti-tracking resin prevents motor burnout
✔ High-efficiency design lowers energy costs and enhances water output
✔ Premium copper wiring ensures superior conductivity and durability
✔ Pressure equalizing diaphragm maintains steady performance
✔ Removable lead connector for fast installation and easy maintenance
✔ Single-phase control box compatibility for flexible power options
✔ Standard NEMA mounting dimensions for universal fit and quick replacement
Technical Specifications:
- Upper Bracket: Cataphoresis-treated cast iron with SS304 cover cap
- Protection Rating: IP68 (fully submersible)
- Max Starts Per Hour: Up to 20 at regular intervals
- Sealing: Sand slinger and lip seal for enhanced durability
- Insulation Class: F
- Rated Ambient Temperature: 86°C
- Cooling Requirement: Minimum 0.08 m/s water flow speed
- Installation Orientation: Vertical and horizontal compatible
🔧 Includes Wire Splice Kit for easy setup.
Ideal for deep wells, agricultural irrigation, municipal water systems, and industrial applications. Order now and experience GolPumps’ cutting-edge submersible pump technology!
