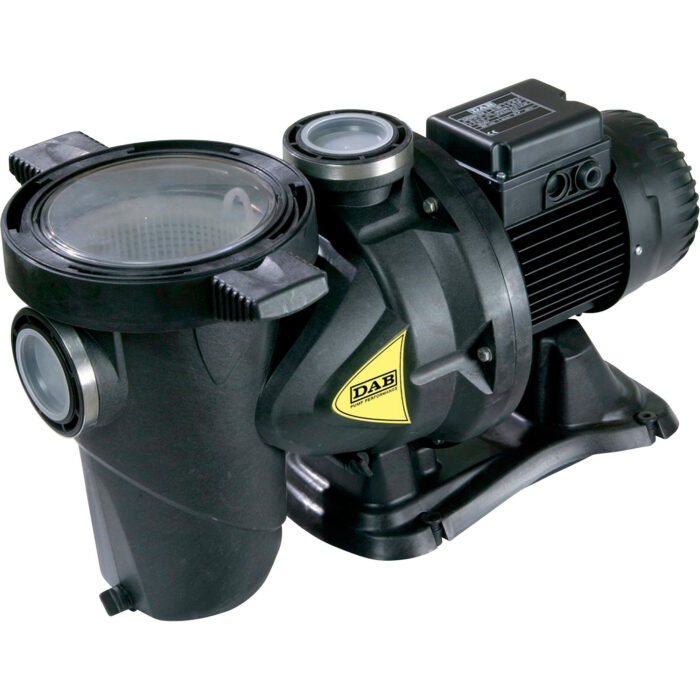

EUROSWIM 150 – Swimming Pool Pump – 1.5 HP – 230V- 6840 GPH

Description

The EUROSWIM 150 is a high-performance self-priming centrifugal electric pump with a built-in high-capacity prefilter. Motor completely isolated from the water. Extremely quiet and highly reliable developed for water circulation and filtration in domestic and residential swimming pools. Also suitable for specific applications requiring handling of aggressive liquids in the fishing, agricultural, and industrial sectors.

• Energy Star, NSF, and CSA certified
• Extremely quiet
• Easy to clean internal filter


  Design

  This innovative solution combines aesthetics with sturdy materials with high resistance to corrosion and oxidation.

  Quick and Easy Connection

  In & Out connection female, threaded 2”.

  Terminal Board Box

  Easy and fast line connection, It is totally closed against electrical motor to avoid any accidentally solid bodies entry.

  Integrated Prefilter

  It has a large canister, a cover that can be removed without tools, and an internal filter easy to take out and clean.

  Motor

  All metallic components have a special surface treatment. Suitable for working in high-temperature situations up to 122°F (50°C). With condensate drain holes The capacitor is housed inside the terminal board box. Waterproof bearings.

  Hydraulic Components

  All components in contact with the liquid are made in polypropylene or noryl with glass fiber. The high-efficiency Impeller has a special design to cover and protect the motor shaft against corrosion (the motor is completely insulated).

  Anti Vibration Feet

  The base support guarantees stability with its integrated rubber feet that reduce any vibrations.

  Applications

  High-performance self-priming centrifugal electric pumps with built-in high capacity prefilter. Motor completely isolated from the water. Extremely quiet and highly reliable developed for water circulation and filtration in domestic and residential swimming pools. Also suitable for specific applications requiring handling of aggressive liquids in the fishing, agricultural, and industrial sectors.

  Construction Features of the Pump

  Fiberglass reinforced technopolymer pump body. Transparent antioxidant polycarbonate prefilter covers ensuring constant visibility over a long period. Nylon strainer. Fiberglass reinforced technopolymer impeller designed to ensure total cover and insulation of the motor shaft from the pumped liquid. Reinforced technopolymer diffuser. Carbon / alumina / NBR / AISI 316 mechanical seal. NBR pump body O-ring, AISI 316 stainless steel reinforcement ring nuts and screws. Butterfly filling and drain plugs that can be removed and refitted without tools.

  Construction Features of the Motor

  Continuous service 2-pole asynchronous motor (S1) with a wide power range, from 0,5 HP to 3 HP, both single and three-phase (see technical specifications). Die-cast aluminum motor casing with cataphoresis paint coating to avoid oxidation also in aggressive environments. Support base supplied with rubber feet to reduce vibrations. Single-phase version with built-in thermal and current protection, and permanent split capacitor (PSC) inside the terminal box for all versions.

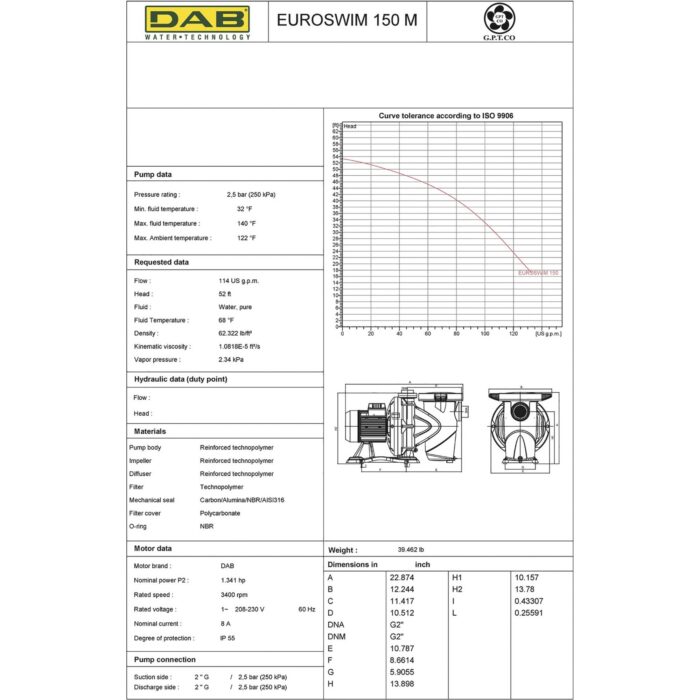

  Technical Specifications

  Brand	DAB-USA
  Manufacturer’s Warranty	1-year Limited Warranty

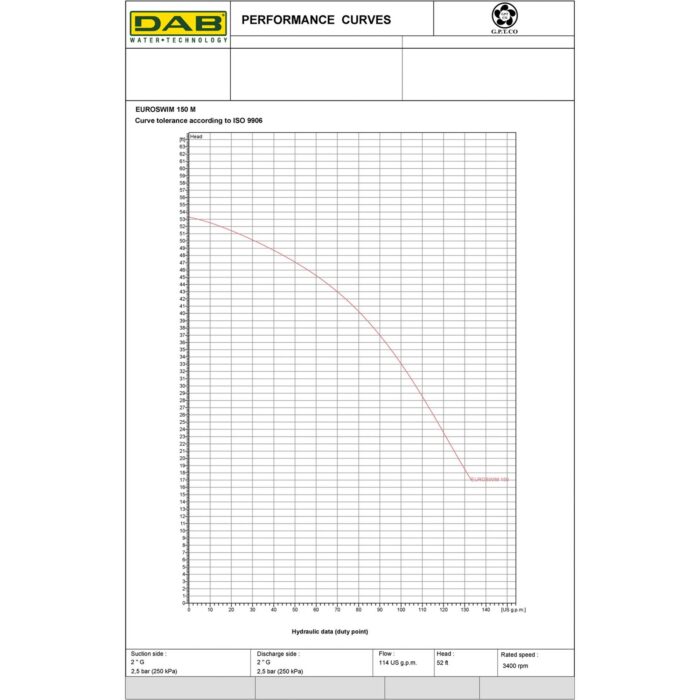

  Operating Range	up to 114 GPM with the head of up to 52 ft
  Pumped Liquid	clean water, or slightly contaminated water with suspended solid debris, or long fibers; highly aggressive water with a high percentage of chlorine/bromine and PHMB (Polyhexamethylene biguanide), or chlorine electrolysis treated water.
  Ph Range	6.5-8.4
  Pumped Liquid Temperature Range	up to 140°F  (60°C)
  Maximum Ambient Temperature	122 °F (50 °C)
  Maximum Operating Pressure	36 psi ( 2.5 bar)
  Nominal Working Pressure	11.6 – 17.4 psi (ideally 14.5 psi)
  Installation	fixed or portable, horizontal position
  Ports(in.)	2
  Port Size (in.)	2 in
  Flow (GPH)	6840
  Volts	230
  Amps	7 A
  HP	1.5HP
  Max. Total Head (ft.)	52ft
  Product Weight	40lbs
