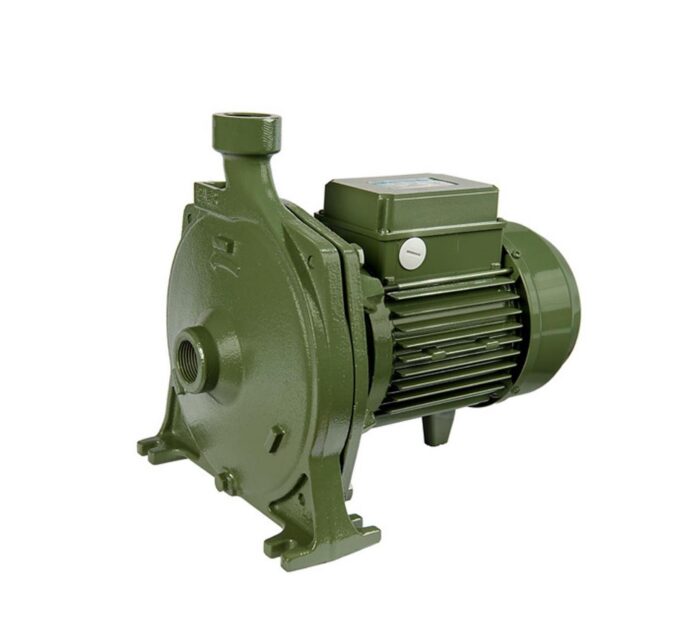

This SAER CM1 Centrifugal Pump is suitable for domestic systems, water supply, small gardening applications, and increasing pressure in main water supply systems.
Features
- Fitted with an overhung impeller directly splined key-way on to the motor shaft
- Cast iron body and motor support for rugged durability
- Pressed brass impeller resists corrosion
- Carbon/ceramic mechanical seal or wear resistance and long life
- Totally enclosed fan-cooled motor
- 5°F–158°F temperature range
- 130.5 PSI max. working pressure
Download Catalog: SpringPump-SAER-Products.pdf
| 1 Year Warranty |
Technical Specifications
| Model | CM1 |
| Brand | SAER-USA |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Ship Weight | 50.0 lbs |
| Port Size (in.) | 1″ |
| Flow (GPH) | 2106 GPH |
| HP | 1.5 |
| Volts | 115V – Single Phase |
| Amps | 21A |
| Max. Total Head (ft.) | 131ft |
| Max. Suction Lift (ft.) | 17ft |
| Max. PSI | 63.8psi |
| Suction Port (in.) | 1″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 13.5″ x 9.5″ x 11.5″ |
| Product Weight (lbs.) | 50lbs |
