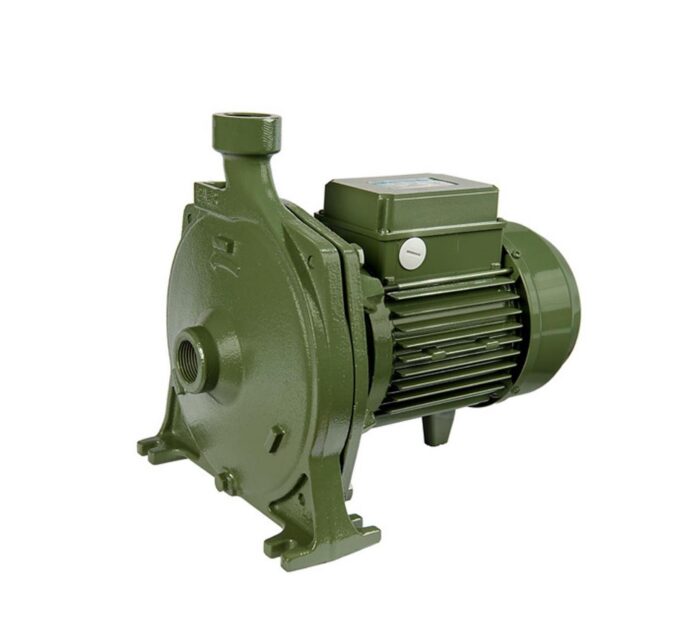

SAER Centrifugal CM1C – 3 HP

This SAER CM1C Centrifugal Pump is a great choice for domestic systems, water supply, small gardening applications, and increasing pressure in main water supply systems.

588.00$

In Stock
SKU: 1613105 Categories: , ,

Description

This SAER CM1C Centrifugal Pump is a great choice for domestic systems, water supply, small gardening applications, and increasing pressure in main water supply systems.

Features

  • Fitted with an overhung impeller directly splined key-way on to the motor shaft
  • Cast iron body and motor support for rugged durability
  • Pressed brass impeller resists corrosion
  • Carbon/ceramic mechanical seal or wear resistance and long life
  • Totally enclosed fan-cooled motor
  • 5°F–158°F temperature range
  • 130.5 PSI max. working pressure

Download Catalog: SpringPump-SAER-Products.pdf

1 Year Warranty

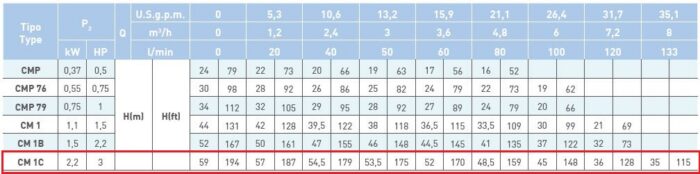

Technical Specifications

Model CM1C
Brand SAER-USA
Manufacturer’s Warranty 1-year Limited Warranty
Ship Weight 61.0lbs
Port Size (in.) 1″
Flow (GPH) 2400
HP 3
Volts 220V   1-Phase
Amps 10 / 5.8
Max. Total Head (ft.) 194ft
Max. Suction Lift (ft.) 17ft
Max. PSI 85.5psi
Suction Port (in.) 1″
Discharge Port (in.) 1″
Self-Priming No

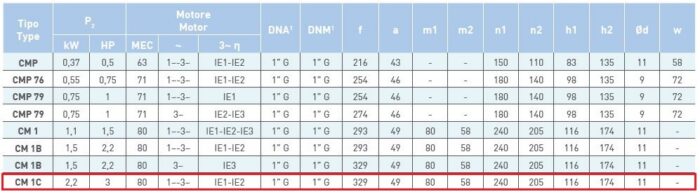

Dimensions L x W x H (in.) 14.9″ x 9.5″ x 11.5″
Product Weight (lbs.) 61lbs

Additional information

Weight 61 lbs
Dimensions 14.9 × 9.5 × 11.5 in
Brand

HP

Phase

Voltage
