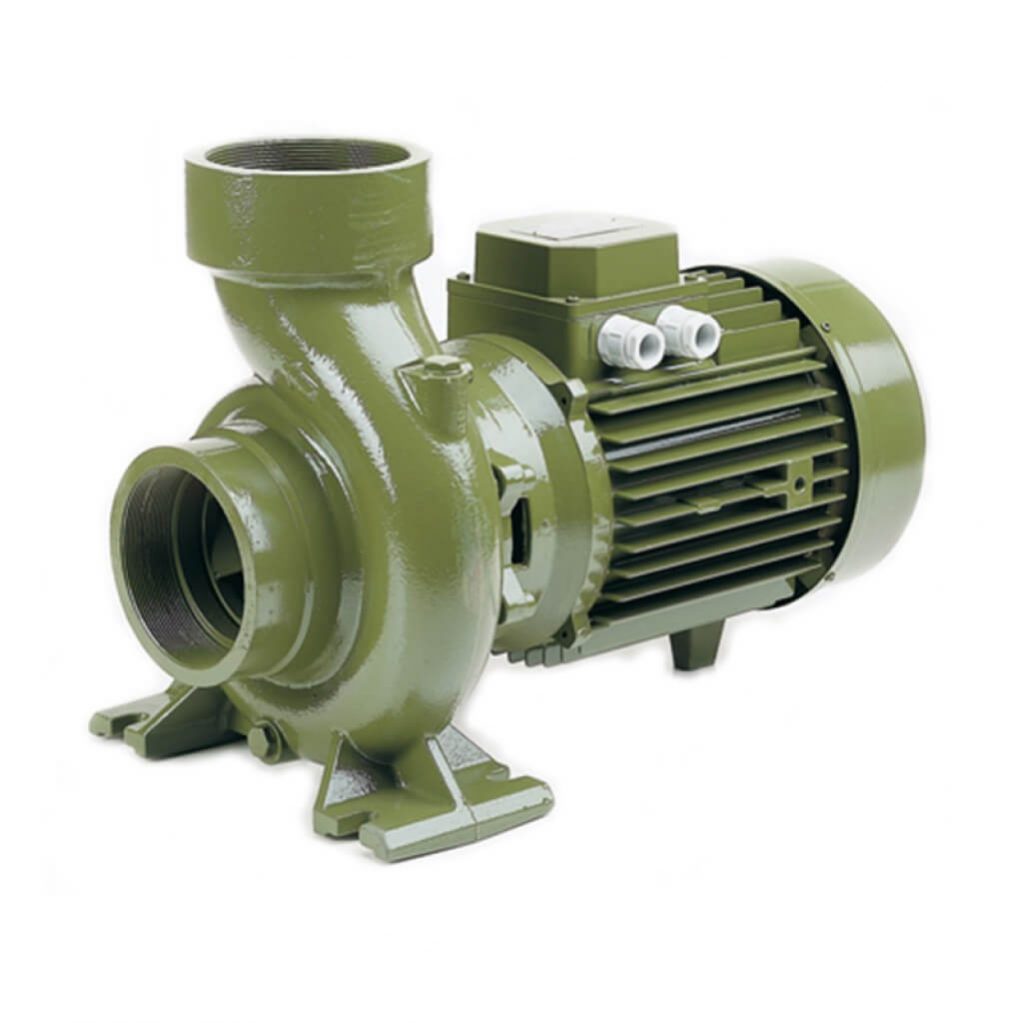

SAER Centrifugal – 6BP 11/137 – 4Hp – Single Phase

This SAER®-USA 6BP9/150 Heavy Duty Threaded Centrifugal Water Pump is used in surface and overhead irrigation systems, for taking water from lakes, rivers, tanks, and many other industrial uses.

Made in Italy

933.00$

In Stock

Description

Applications

The centrifugal water pump 6BP series can be used for surface flooding and spray irrigation systems, lifting water from lakes, rivers, and tanks, and for various industrial applications.

Features

  • NPT Threaded suction and discharge for a quick, easy connection
  • Closed impeller obtains best efficiency levels
  • Totally enclosed motor
  • Stainless steel shaft provides strength and resistance to corrosion
  • Greased pre-lubricated ball bearings
  • Cast iron body for rugged durability
  • Graphite/ceramic mechanical seal for wear resistance
  • Protection IP55

Advantages

  • Gas threaded Suction and discharge (NPT on request) for a quick and easy connection
  • Grey cast iron pump body designed with suitable thickness to guarantee greater resistance and life to the working pressure
  • Closed impeller to obtain the best efficiency levels and reduce pump NPSHr.
  • Different configurations of a mechanical seal according to chemical compatibility with the pumped fluid
  • Stainless steel shaft with cross-section increased to resist generated loads
  • Grease pre-lubricated ball bearings oversized and protected from outer agents to provide low noise operation without the need for maintenance.

Pump Construction

The pump body and motor support are in cast iron. There is a wide range of available material for the impellers: cast iron. Mechanical seal in graphite/ceramic, totally enclosed motor with external ventilation, a rotor mounted on maintenance-free ball bearings. The pumps can be supplied with built-in thermal overload protection on request. The capacitor is permanently in the circuit in the single-phase version.

Pump Performance Data

  • The temperature of pumped liquid: 5°F to 158°F
  • Maximum working pressure: 87 psi
  • Maximum ambient temperature: 104°F

The performance data shown is based on continuous service for clear water (specific weight 62.5 lb/ft³) with a maximum manometric suction lift of 5 feet w.c. For higher manometric lifts, up to a maximum of 16 ft, pump capacities are reduced. The suction pipe must be perfectly airtight to ensure the performance data shown.

Installation

This centrifugal water pump can be installed with the motor shaft mounted either horizontally or vertically. In the event of vertical installations, the motor must always be positioned above the pump body.

Download Catalog: SpringPump-6BP-Single-Stage-Centrifugal-SAER.PDF

1 Year Warranty

Technical Specifications

Model 6BP11/137
Brand SAER-USA
Manufacturer’s Warranty 1-year Limited Warranty
Ship Weight 95lbs
Port Size (in.) 2″ & 2.5″
Flow (GPH) 9480 GPH
Horsepower 4HP
Volts 230V / Single Phase
Amps 17 A
Max. Total Head (ft.) 110ft
Max. Suction Lift (ft.) 17ft
Max. PSI 48.5 psi
Suction Port (in.) 2.5″
Discharge Port (in.) 2″
Self-Priming No
Dimensions L x W x H (in.) 21″ x 11″ x 19″
Product Weight (lbs.) 95lbs

Additional information

Weight 95 lbs
Dimensions 21 × 11 × 19 in
