SAER- Jet M202 – Convertible Deep Well Jet Pump – 2HP -Single Phase- 792 GPH

This SAER®-USA M202 Convertible Deep Well Jet Pump is a 2HP, convertible, deep Well Jet Pump that is ideal for water transfer, irrigation, heating/cooling systems, industrial applications, and more.

586.88$

In Stock

Description

This SAER®-USA M202 Convertible Deep Well Jet Pump is a 2HP, convertible, deep Well Jet Pump that is ideal for water transfer, irrigation, heating/cooling systems, industrial applications, and more.

Made in Italy.

Features

  • Cast iron body for rugged durability
  • Pressed brass impeller provides corrosion resistance
  • Carbon/ceramic mechanical seal for wear resistance and long life
  • The stainless steel rotor shaft is strong and resists corrosion
  • Totally enclosed fan-cooled motor

Applications

The SAER Convertible Deep Well Jet M202, 2 HP, 1 HP, 230-Volt, 60 HZ, NPT TREAD, BRASS & CAST-IRON IMPELLER.

General water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, farm also industrial applications.

Water transfer and garden watering applications.

The maximum lift is 49 ft. and the Maximum flow 792 GPH. (With External Ejector For Deep Wells 2″)

Made in Italy

More Details

  • Pump body in cast iron
  • Diffuser in thermoplastic resin
  • Mechanical seal in carbon/ceramic
  • Maximum temperature of pumped liquid 5°F to 122°F
  • Maximum working pressure 130.5 psi
  • Maximum ambient temperature 104°F; for higher temperatures
  • Ejector Type: P1/20

Technical Specifications

Model M-202
Brand SAER-USA
Manufacturer’s Warranty 1-year Limited Warranty
Impeller Material Brass
Port Size (in.) 1″
Flow (GPH) 792 GPH
HP 2HP
Volts 230V – 1 Phase
Max. Total Head (ft.) 243ft
Max. Suction Lift (ft.) 49ft
Max. PSI 107.3psi
Suction Port (in.) 1.25″
Discharge Port (in.) 1″
Self-Priming Yes
Dimensions L x W x H (in.) 13″ x 8.5″ x 9.2″

Download:

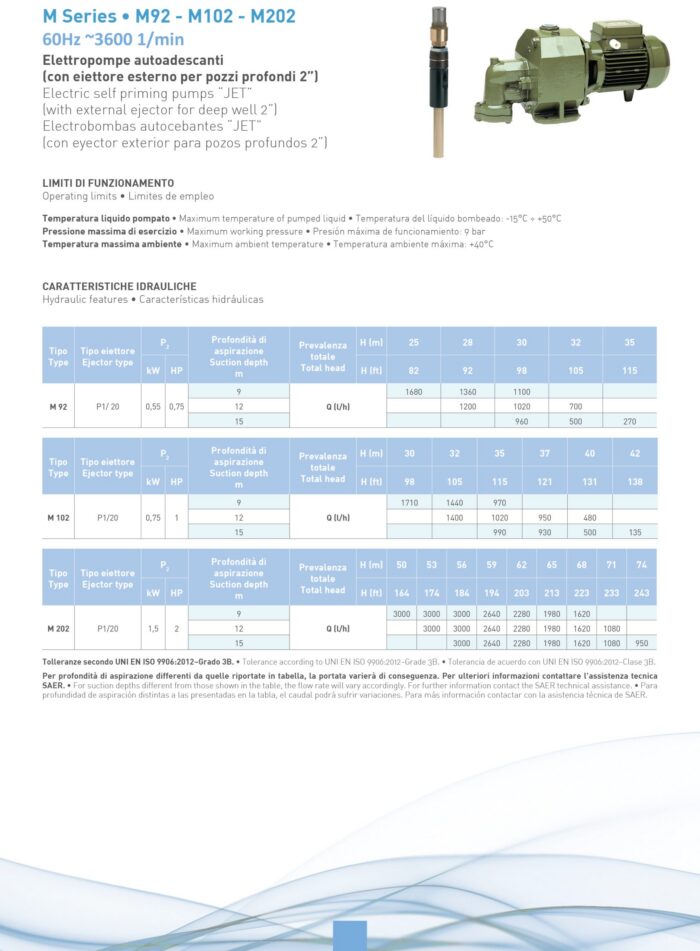

SAER-m-series-manual.pdf

SAER-USA-Jet-Self-Priming-Pump-With-External-Ejector.pdf
