Description
This 2″ submersible pump from GOL Pumps is the perfect solution for water supply in wells and reservoirs. Offering a maximum head of 123 feet, it is specifically designed for wells with a 2.5″ diameter, making it a reliable choice for residential, commercial, and industrial water pumping needs.
Key Features of the 2″ Submersible Pump:
- Ideal for water supply from wells and reservoirs
- Includes an automatic control box for seamless operation
- Rewindable motor for easy maintenance and long-lasting performance
Applications of the GOL 2″ Submersible Pump:
- Domestic water supply from wells or reservoirs
- Suitable for civil and industrial applications
- Garden irrigation and landscape watering
Operating Conditions:
- Maximum fluid temperature: +35°C
- Maximum sand content: 0.25%
- Minimum well diameter: 2″
Motor and Pump Specifications:
- Rewindable motor for added durability
- Available in single-phase options: 110V/60Hz or 220V/60Hz
- Equipped with a start control box for efficient operation
- Designed with casing stressed curve tolerance in compliance with ISO 9906
Additional Information:
- Includes a wire splice kit for easy installation
Whether you need a pump for domestic water supply, irrigation systems, or industrial water needs, this GOL 2″ submersible pump provides the reliability and performance you require. Get yours today for efficient and durable water pumping solutions!
Description
Technical Specifications
| Pump Type | Thin Submersible Pump |
| Pump Brand | GOL Pumps |
| Pump Model | 2SDM0.7/19 |
| Warranty | 1 Year |
| Maximum Head | 123ft |
| Minimum Head | 30ft |
| Maximum Flow | 312 GPH |
| Minimum Fluid Temperature | 50°F |
| Maximum Fluid Temperature | 95°F |
| Maximum Ambient Temperature | 104°F |
| Discharge | 3/4″ NPT |
| Pump Material | Stainless Steel 304 |
| Pump Diameter | 2″ |

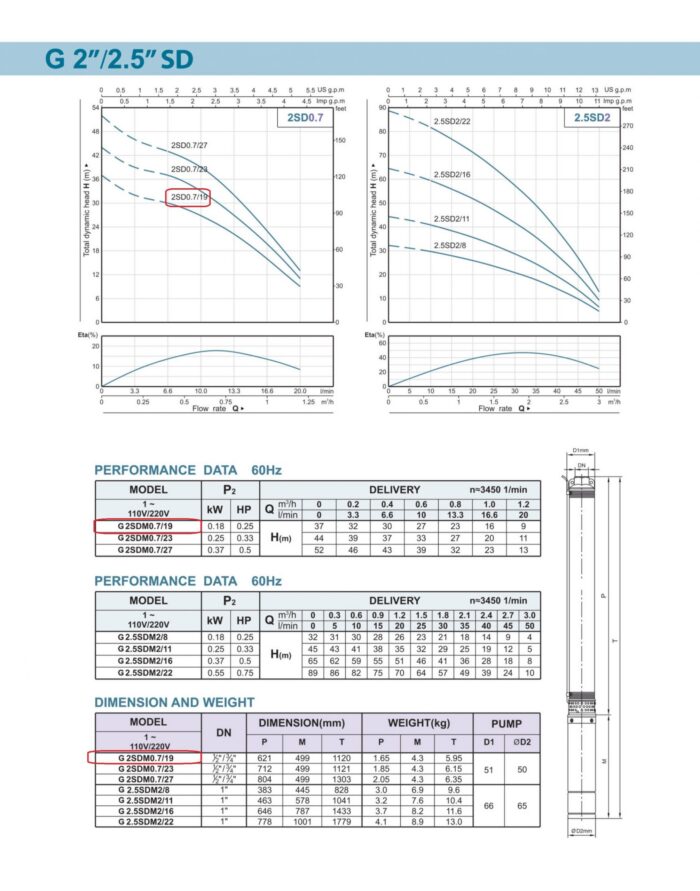

G 2″/2.5″ SD
Performance Data
| MODEL | P2 | DELIVERY N = 3450 1/min | |||||||||
| 1~
110V/220V |
KW | HP | Q | m3/h | 0 | 0.2 | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 |
| l/min | 0 | 3.3 | 6.6 | 10 | 13.3 | 16.6 | 20 | ||||
| G 2SDM0.7/19 | 0.18 | 0.25 | H (m) | 37 | 32 | 30 | 27 | 23 | 16 | 9 | |
Dimension and Weight
| MODEL | DN | DIMENSION(inch) | WEIGHT(lbs) | PUMP | |||||
| 1~
110V/220V |
P | M | T | P | M | T | D1 | D2 | |
| G 2SDM0.7/19 | 1/2″ | 3/4″ | 24.4 | 20 | 44 | 4 | 9.5 | 13.1 | 51 | 50 |
| Components | Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM C85500 |
| Suction lantern | Cast-Cu ASTM C85500 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | AISI 304 SS |
| Shaft coupling | AISI 304 SS |
| Wear ring | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
| Shaft | AISI 303 SS-ASTM 1045/5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
