GPT 3″ Thin Submersible Well Pump – 130 Ft – 942 GPH – 3 Wire – 0.3HP*

Description

This 3″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach up to 130 feet of head and is a great fit for 3.5″ diameter wells.

• Water supply from wells and reservoirs
• Comes with a control  box
• Rewindable motor

Applications

• For water supply from wells or reservoirs
• For domestic use
• for civil and industrial applications
• For garden use and irrigation

Operating conditions

• Maximum fluid temperature up to 95°F
• Maximum sand content: 0.25%
• Minimum well diameter: 3″

Motor and Pump

• Rewindable motor
• Single-phase:110V/60Hz or 220V/60Hz
• Equip with start control box or digital auto-control box Pumps are designed by casing stressed Curve tolerance according to ISO 9906

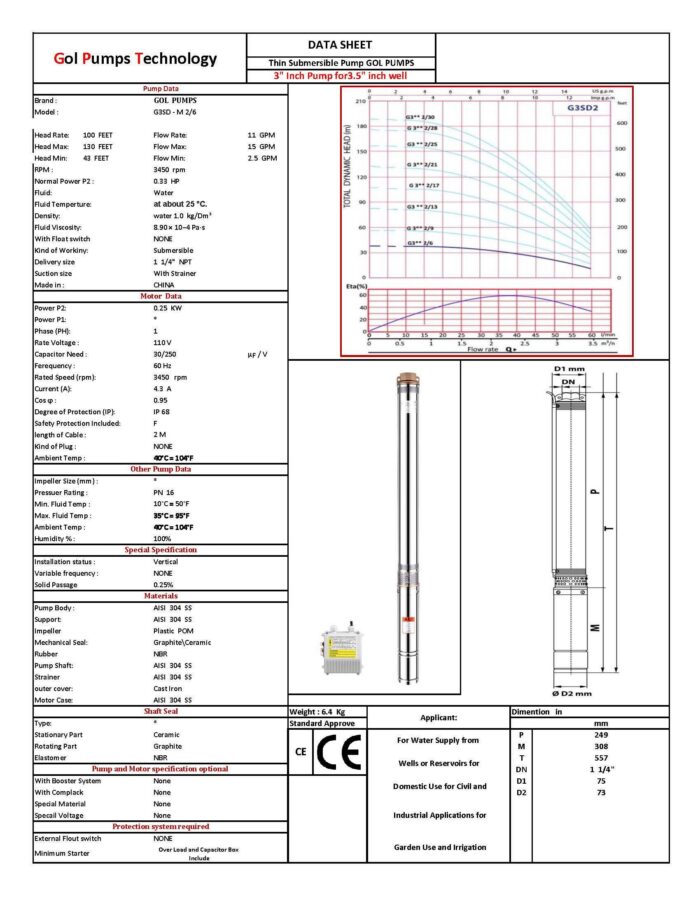

  Technical Specifications

  Pump Type	Thin Submersible Pump
  Pump Brand	GOL Pumps
  Pump Model	3SDM0 2/6
  Warranty	1 Year
  Maximum Head	130ft
  Minimum Head	43ft
  Maximum Flow	942 GPH
  Minimum Fluid Temperature	50°F
  Maximum Fluid Temperature	95°F
  Maximum Ambient Temperature	104°F
  Discharge	1.25″ NPT
  Pump Material	Stainless Steel 304
  Pump Diameter	3″
