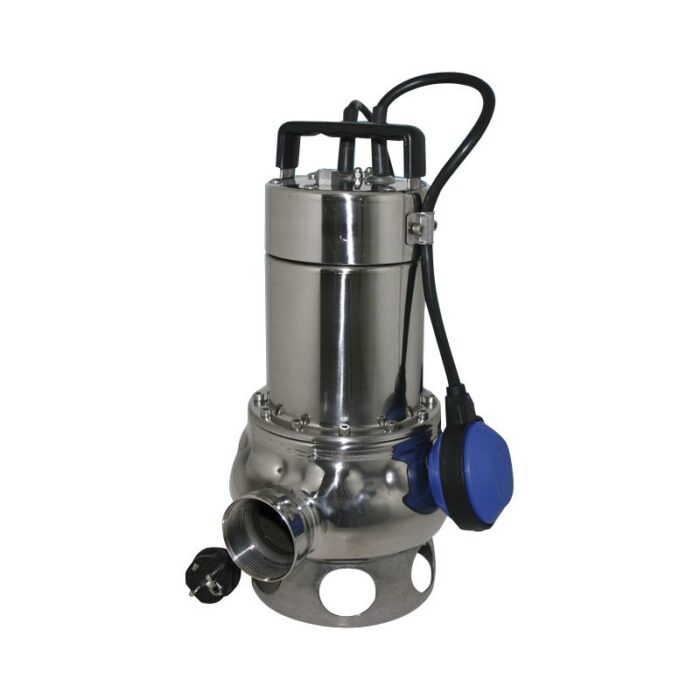

JRVEX 150/S Auto- SS316 Sewage Submersible Pump – 1.5HP- Single Phase

Description

Submersible VORTEX and TWIN-CHANNEL electric pumps for wastewater and aggressive liquids

Applications

• Decapitation pit, sewage pit, and slurry collection pit pump out.
• Pump out of lavatory/foul water with possible floating solids contents.
• Domestic and industrial lavatory/black water handling systems.
• Pumping of aggressive media.

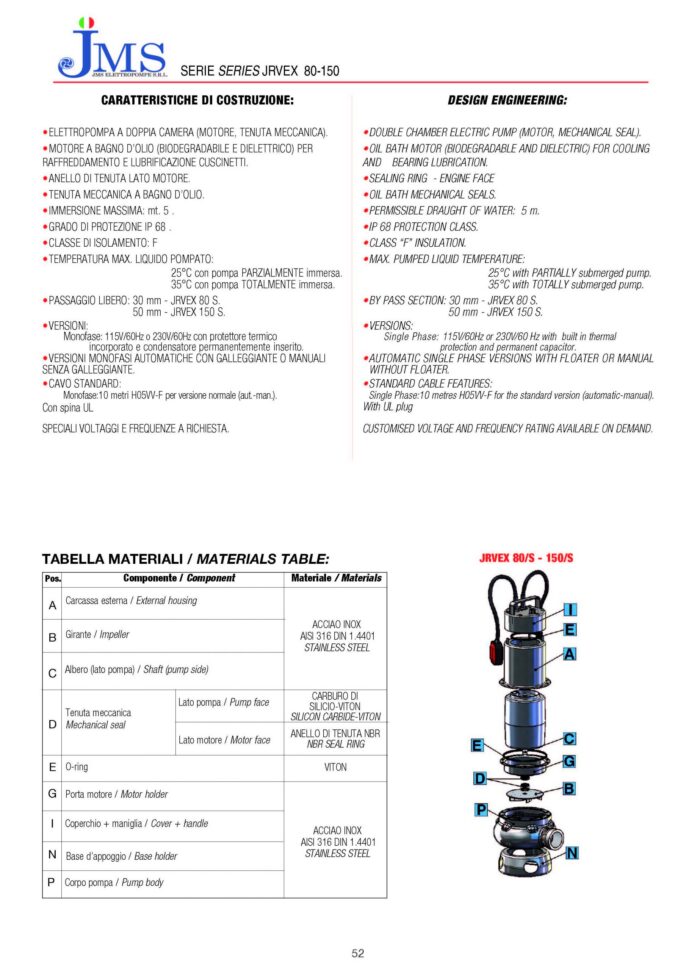

Design engineering

• Double chamber electric pump (motor, mechanical seal).
• Oil bath motor (biodegradable and dielectric) for cooling and bearing lubrication.
• Sealing ring – engine face.
• Oil bath mechanical seals.
• Permissible draught of water: 5 m.
• IP68 protection class.
• Class “F” insulation.
• Max. pumped liquid temperature: 25°C with partially submerged pump / 35°C with totally submerged pump.
• Bypass section:
  – 1.95 inch – JRVEX 150 S.
• Motor Power: 1,1 Kw,  1.5 Hp

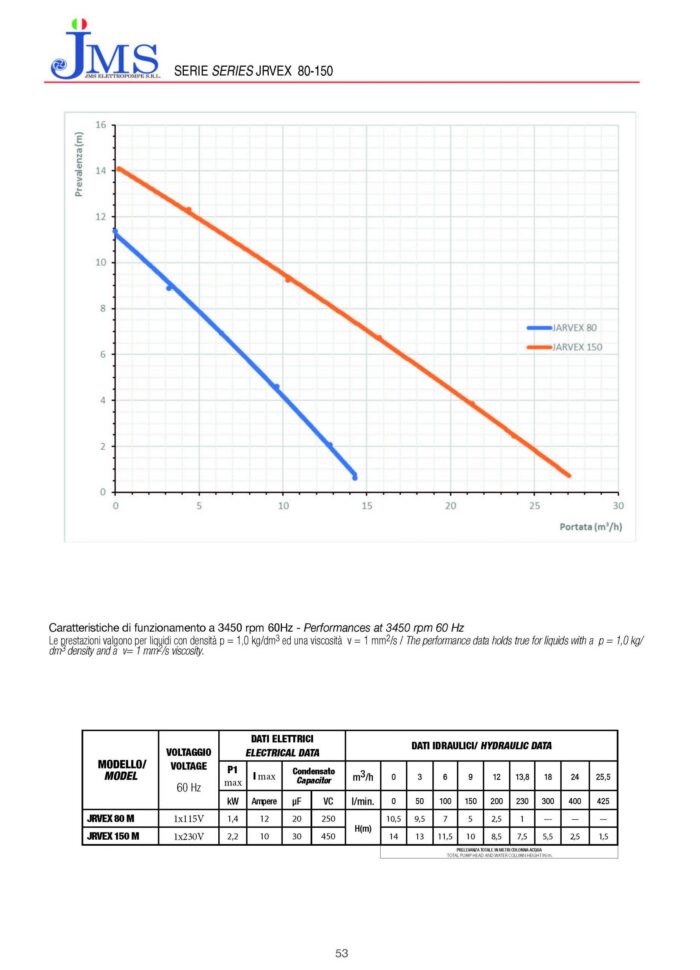

• Max Head: 46 ft.
• Max Flow: 6720 Gph
• Single-phase: 230V/60Hz with built-in thermal protection and permanent capacitor.
• Automatic with floater
• Standard cable features: 32.8 ft.  H05VV-F

 Made In Italy

Made in Italy
