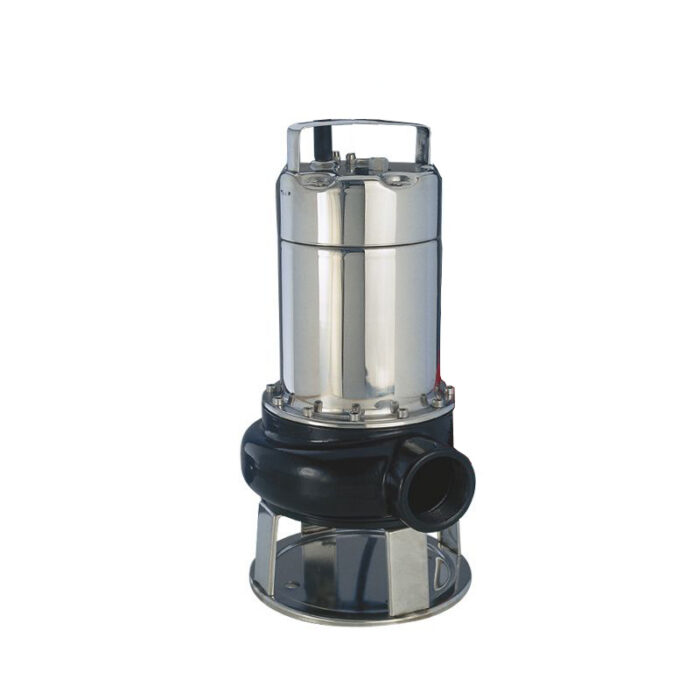

JUTTER 300 Manual -Grinder Submersible Sewage Pump- 3HP – Three Phase

Description

Applications

• Grinding and pump out of lavatory/foul water with floating solids and fiber suspensoids.
• Decantation pit, sewage pit, and slurry collection pit pump out.
• Domestic and industrial lavatory/black water handling systems.

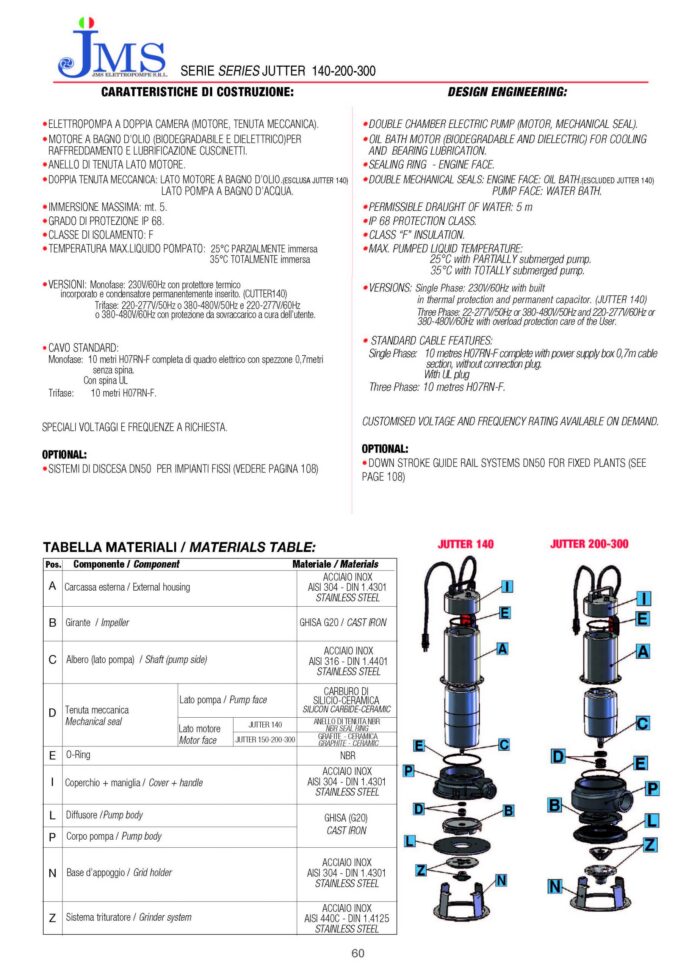

Design engineering

• Double chamber electric pump (motor, mechanical seal).
• Oil bath motor (biodegradable and dielectric) for cooling and bearing lubrication.
• Sealing ring – engine face.
• Double mechanical seals: engine face: oil bath (excluded JUTTER 140) – pump face: water bath.
• Permissible draught of water: 5 mt.
• IP68 protection class.
• Class “F” insulation.

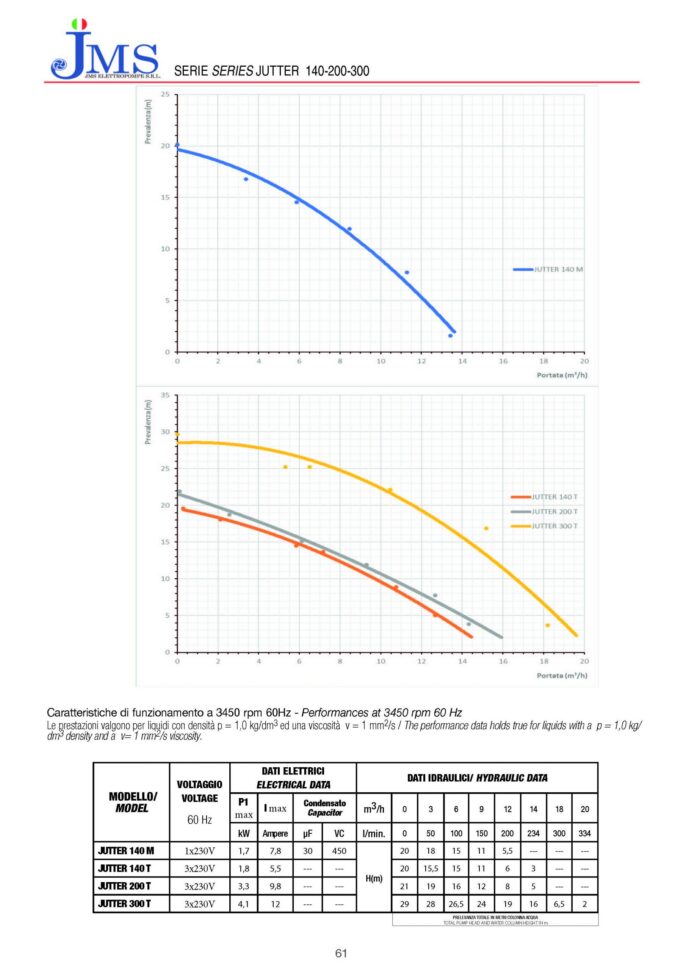

• Max Head: 64 ft.
• Max Flow: 5400 Gph
• Max. pumped liquid temperature: 25°C with partially submerged pump; 35°C with totally submerged pump.
• Three Phase: 230V/60Hz with built-in thermal protection and permanent capacitor.
• Motor power: from 2.7 HP, 2 kW
• Standard cable features: 32.8 ft H07RN-F for the standard version (automatic-manual).

Made In Italy
