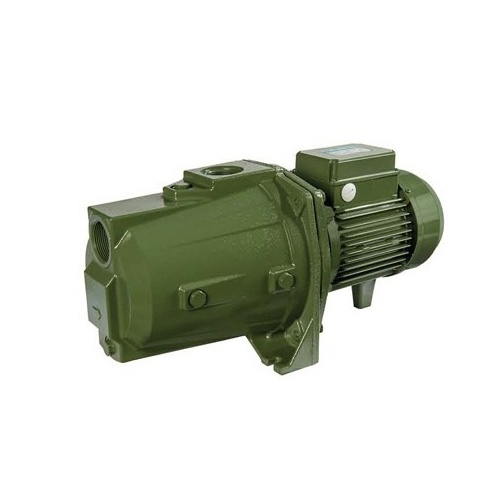

SAER – Self Priming – Jet M300C – 1.5HP

This SAER M300C is a self-priming, 1.5 Hp, shallow well jet pump, and is ideal for water transfer, irrigation, heating/cooling systems, industrial applications, and more.

568.98$

In Stock

Description

Applications

The SAER Self Priming Cast Iron Shallow Well Jet M300C, 1.5 HP, 1 & 3 PH, 115-Volt, 60 HZ, NPT TREAD, BRASS & CAST-IRON IMPELLER. Can be used for general water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, the farm also industrial applications. Water transfer and garden watering applications. The maximum lift is 157 ft. and the Maximum flow 2112 GPH.

Features

  • Cast iron body for rugged durability
  • Pressed brass impeller provides corrosion resistance
  • Carbon/ceramic mechanical seal for wear resistance and long life
  • The stainless steel rotor shaft is strong and resists corrosion
  • Totally enclosed fan-cooled motor

More Details

  • Pump body in cast iron
  • Diffuser in thermoplastic resin
  • Mechanical seal in carbon/ceramic
  • Maximum temperature of pumped liquid 5°F to 122°F
  • Maximum working pressure 130.5 psi
  • Maximum ambient temperature 104°F; for higher temperatures

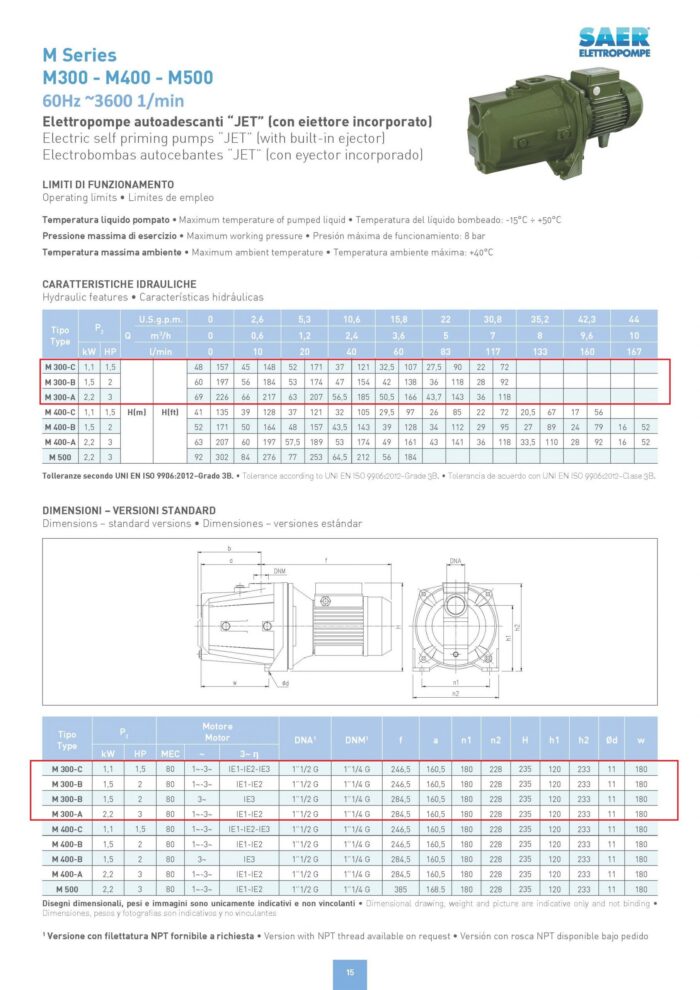

Download Catalog: SpringPump-SAER-Products.pdf

1 Year Warranty

Technical Specifications

Model M-300C
Brand SAER-USA
Manufacturer’s Warranty 1-year Limited Warranty
Impeller Material Brass
Port Size (in.) 1-1/2 and 1-1/4
Flow (GPH) 2112
HP 1.5
Volts 115V – Single Phase
Max. Total Head (ft.) 157
Max. Suction Lift (ft.) 17
Max. PSI 69.7
Suction Port (in.) 1.5″
Discharge Port (in.) 1″
Self-Priming Yes
Dimensions L x W x H (in.) 16 x 9 x 9.5
Product Weight (lbs.) 70



Additional information

Weight 70 lbs
Dimensions 16.6 × 9 × 9.2 in
Brand

HP

Phase

Voltage
