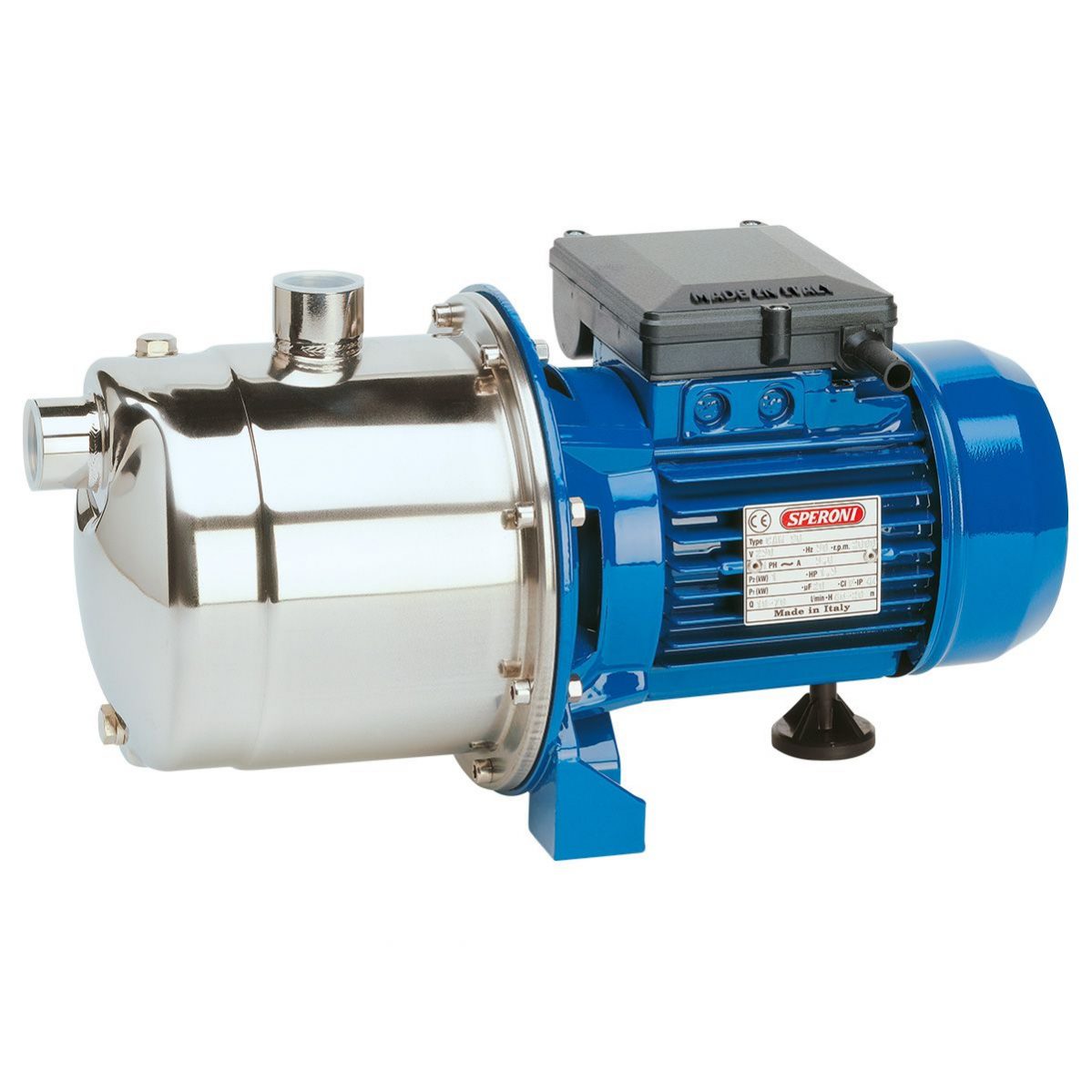

Speroni Shallow Well Jet Pump – CAM85 – 0.9HP – 792 GPH – 1″ – 60 Hz Single Phase

Description

Applications

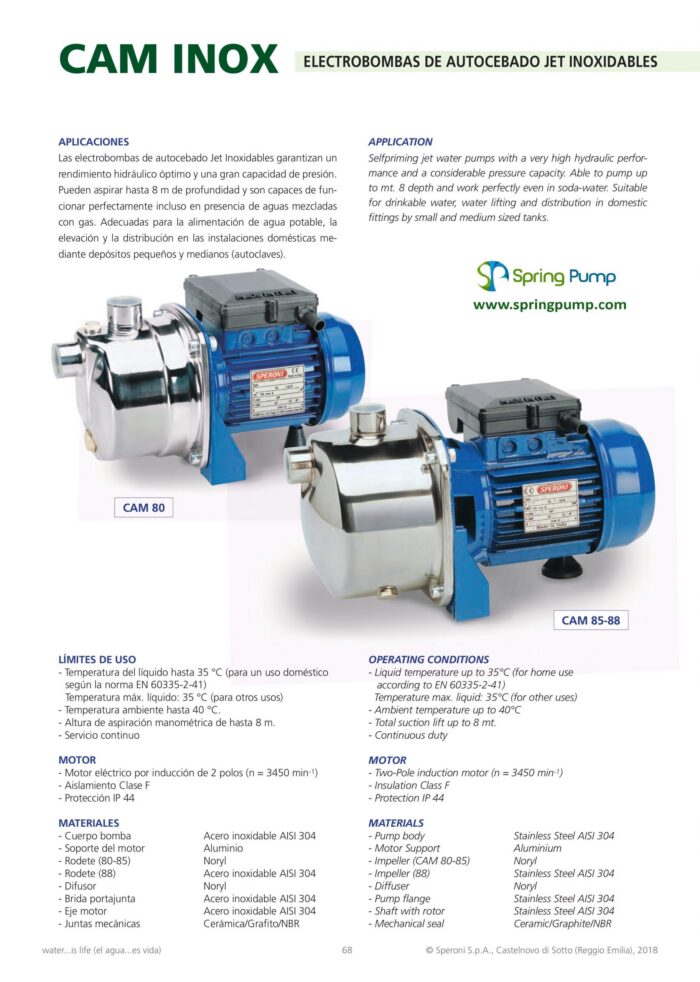

This self-priming jet water pump is engineered for high hydraulic performance and exceptional pressure capacity. Capable of lifting water from depths of up to 26.2 feet (8 meters), it operates reliably even in soda or mineral-rich water. Ideal for domestic water supply systems, it supports drinking water distribution, water lifting, and integration with small to medium-sized water storage tanks.

Perfect for residential settings, this stainless steel water pump ensures consistent flow and pressure for household needs.

Key Features

• Self-Priming Jet Pump: Reliable priming for hassle-free starts, even with air-mixed water.

• High Pressure Output: Suitable for water supply systems requiring strong, stable pressure.

• Safe for Potable Water: Built with food-grade materials for clean water handling.

• Versatile Applications: Excellent for homes, cottages, farms, and light commercial use.

Operating Conditions

• Maximum Liquid Temperature:

  • Up to 95°F (35°C) for domestic use (per EN 60335-2-41)

  • Up to 95°F (35°C) for other general applications

• Maximum Ambient Temperature: Up to 104°F (40°C)

• Total Suction Lift: Up to 26.2 ft (8 m)

• Continuous Duty: Designed for long-lasting, reliable operation

Motor Specifications

• Voltage: Single-phase 110/220V – 60Hz

• Insulation Class: F

• Protection Rating: IP 44 (splash-proof and dust-resistant)

Durable Construction Materials

• Pump Body: Corrosion-resistant Stainless Steel 304

• Motor Support: Lightweight, robust Aluminium

• Impeller & Diffuser: High-efficiency Noryl thermoplastic

• Pump Flange: Stainless Steel 304 for enhanced durability

• Shaft with Rotor: Precision-crafted Stainless Steel 304

• Mechanical Seal: Ceramic/Graphite/NBR for long-lasting, leak-free performance

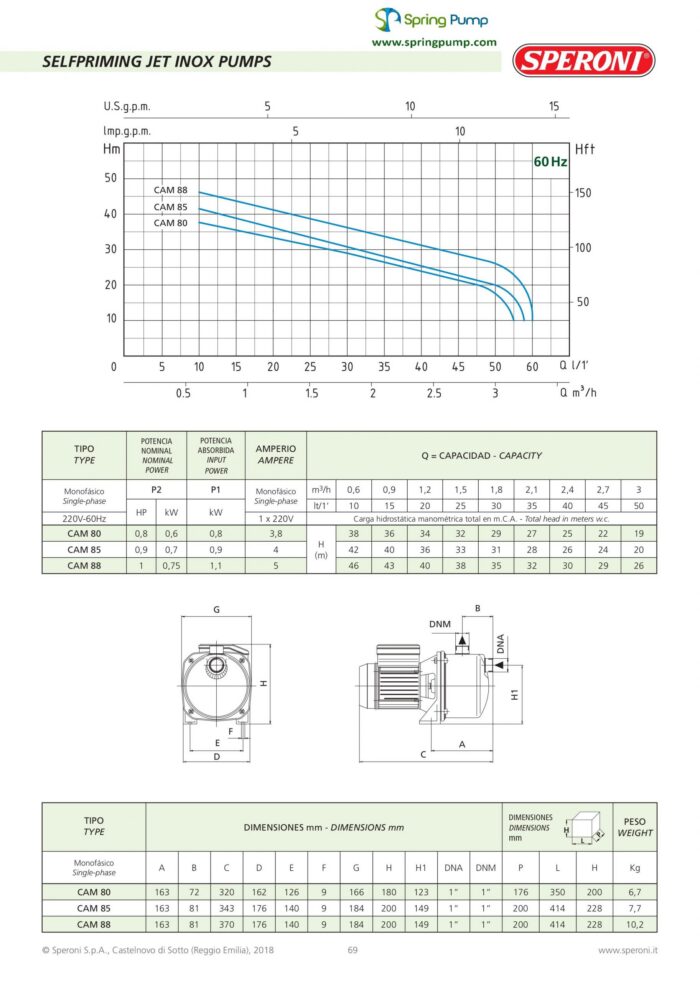

Technical Specifications
