Description

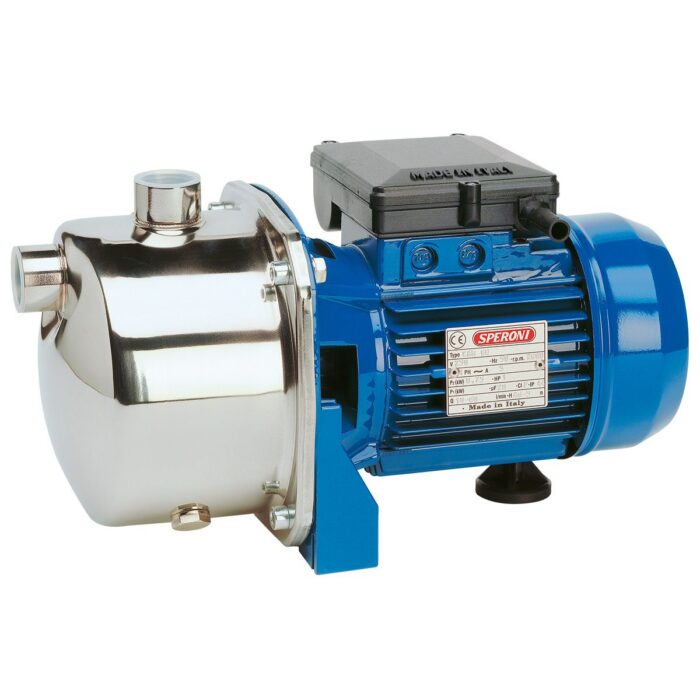

High-Performance Self-Priming Jet Water Pump – Stainless Steel

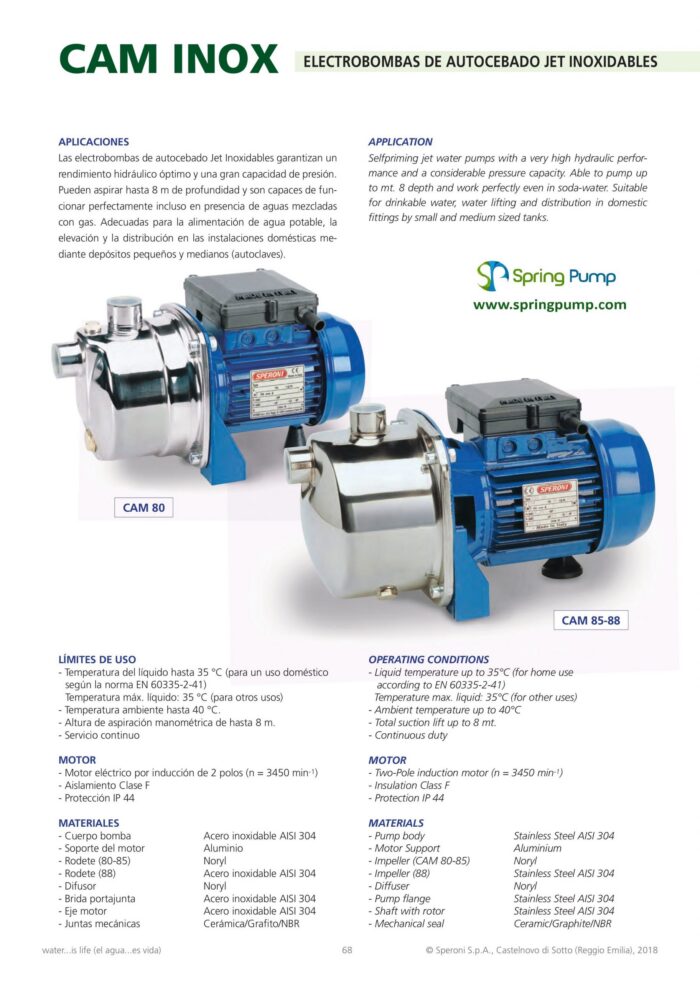

Product Description
This self-priming jet water pump delivers exceptional hydraulic performance and impressive pressure capabilities. Designed for efficient water lifting up to 26.2 feet (8 meters), it operates flawlessly even in soda or mineral-rich water. Ideal for a variety of residential applications, this durable pump is perfect for potable water systems, water transfer, and distribution through small to medium-sized tanks in domestic installations.
Key Applications
-
Domestic water supply systems
-
Potable water pumping
-
Garden irrigation and sprinkler systems
-
Water transfer from wells or tanks
-
Boosting water pressure in home installations
Operating Conditions
-
Liquid temperature: Up to 95°F (35°C) for household use (per EN 60335-2-41)
-
Maximum fluid temperature: 95°F (35°C) for all applications
-
Ambient temperature: Up to 104°F (40°C)
-
Maximum suction lift: 26.2 ft. (8 meters)
Motor Specifications
-
Voltage: Single-phase 110/230V – 60Hz
-
Insulation class: F
-
Protection level: IP44 – Splash and dust-resistant design
Durable Construction Materials
-
Pump body: Corrosion-resistant Stainless Steel 304
-
Motor support: Lightweight, robust Aluminum
-
Impeller & Diffuser: High-efficiency Noryl for long-lasting performance
-
Pump flange: Stainless Steel 304 for added durability
-
Shaft with rotor: Stainless Steel 304
-
Mechanical seal: Ceramic/Graphite/NBR for reliable leak protection

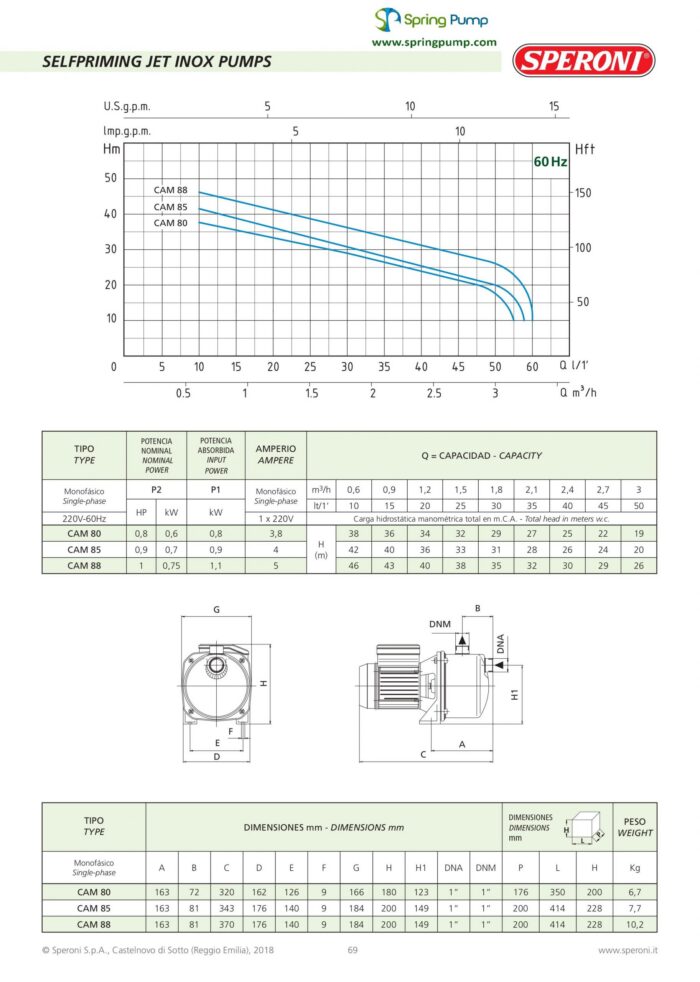

Technical Specifications
| Model | CAM80 |
| Brand | Speroni |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Noryl |
| Port Size (in.) | 1″ |
| Flow (GPH) | 792 GPH |
| HP | 4/5HP |
| Volts | 110/220V – 1 Phase |
| AMP | 8.8/3.8 |
| Max. Total Head (ft.) | 125ft |
| Max. Suction Lift (ft.) | 26.2ft |
| Max. PSI | 55 psi |
| Suction Port (in.) | 1″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 12.6″ x 6.4″ x 7″ |
| Product Weight (lbs.) | 14.7lbs |
