Description
Applications

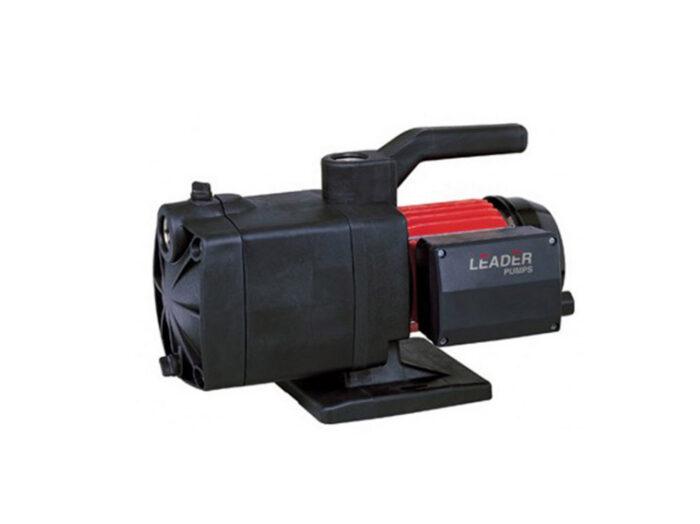

Multi-stage, self-priming centrifugal pump with horizontal shaft, with optimal liquid aspiration even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurization, irrigation of gardens, and general water movement.
Features
- Can be used with multiple different types of controls
- Anti-corrosive and rust-proof materials
- Motor with thermic overload protection
- Wear-resistant shaft and impeller
- The double sealing system between the motor and the hydraulic section
- Resistance to frost and icing
- Manual on /off switch
- Supplied with power cable with plug
Constructional Features of the Pump
Techno-polymer pump body and motor support. Techno-polymer impeller, diffuser, self-priming disc. Carbon/ceramic mechanical seal.
Constructional Features of the Motor
The induction motor closed and cooled with external ventilation. Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life. Built-in thermal and resettable overload protection on ECOPLUS 240/250. Capacitor permanently in the circuit. Manufactured according to UL 778 -2010 & CSA 108-1. Motor protection: NEMA3. Terminal Box protection: NEMA3. Insulation class: F.
ECOPLUS_ECOTRONIC INSTRUCTIONS. PDF
Technical Specifications
| Brand | LEADER |
| HP | 0.75 |
| Operating Range | From 1 to 27 GPM with a head up to 157 ft ( 68 psi ) |
| Liquid Quality Requirement | clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water |
| Liquid Temperature Range | From 32°F to 95°F for domestic use or 32°F to 120°F for other uses. |
| Maximum Suction Depth | 21 ft |
| Maximum Operating Pressure | 118 psi |
| Maximum Ambient Temperature | 104°F |
| Installation | fixed or portable in a horizontal position |
| Power Supply | 115v 60Hz |
| Amps | 8 |
| Max Flow | 27 GPM |
| Max Head | 118 ft |
| Max Pressure | 51 psi |
| Suction | 1″ |
| Discharge | 1″ |
| Dimensions | 16.125″ x 8.75″ x 8.5″ |
| Weight | 19 lbs |
