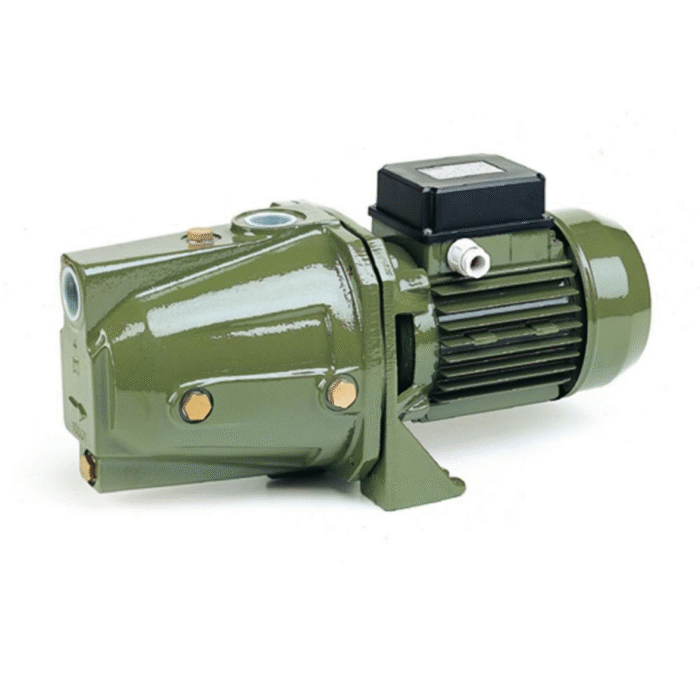

SAER-Self Priming – Jet M80 -1HP- Single Phase

This SAER®-USA Shallow Well Jet Pump is a self priming 1 Hp pump that is ideal for water transfer, irrigation, heating/cooling systems, industrial applications, and more.

Made in Italy.

279.88$

In Stock

Description

Applications

The SAER Self Priming Cast Iron Shallow Well Jet pump M80, 1 HP, 1 HP, 115-Volt, 60 HZ, NPT TREAD, BRASS & CAST-IRON IMPELLER. Can be used for general water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, the farm also industrial applications. Water transfer and garden watering applications. The maximum lift is 180 ft. and the Maximum flow 900 GPH.

  • Pump body in cast iron
  • Diffuser in thermoplastic resin
  • Mechanical seal in carbon/ceramic
  • Maximum temperature of pumped liquid 5°F to 122°F
  • Maximum working pressure 130.5 psi
  • Maximum ambient temperature 104°F; for higher temperatures

Features

  • Cast iron body for rugged durability
  • Pressed brass impeller provides corrosion resistance
  • Carbon/ceramic mechanical seal for wear resistance and long life
  • The stainless steel rotor shaft is strong and resists corrosion
  • Totally enclosed fan-cooled motor

Download Catalog: SpringPump-SAER-Products.pdf

1 Year Warranty



Technical Specifications

Model M-80
Brand SAER-USA
Manufacturer’s Warranty 1-year Limited Warranty
Impeller Material Brass
Port Size (in.) 1
Flow (GPH) 900
HP 1
Volts 115V – Single Phase
Max. Total Head (ft.) 180ft
Max. Suction Lift (ft.) 17ft
Max. PSI 80 psi
Suction Port (in.) 1″
Discharge Port (in.) 1″
Self-Priming Yes
Dimensions L x W x H (in.) 16.6 x 7.1 x 8.2
Product Weight (lbs.) 33

Additional information

Weight 33 lbs
Dimensions 16.6 × 7.1 × 8.2 in
Brand

HP

Phase

Voltage
