Description
Applications
Self-priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to mt. 8 depth and work perfectly even in soda-water. Suitable for drinkable water, water lifting, and distribution in domestic fittings by small and medium-sized tanks.
Features
Operating Conditions
- Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
- Temperature max. liquid: 95°F (for other uses)
- Ambient temperature up to 104°F
- Total suction lift up to 26.2 ft.
- Continuous duty
Motor
- Single-phase 110/230V-60Hz
- Insulation Class F
- Protection IP 44
Materials
- Pump body: Stainless Steel 304
- Motor Support: Aluminium
- Impeller: Noryl
- Diffuser: Noryl
- Pump flange: Stainless Steel 304
- Shaft with rotor: Stainless Steel 304
- Mechanical seal: Ceramic/Graphite/NBR

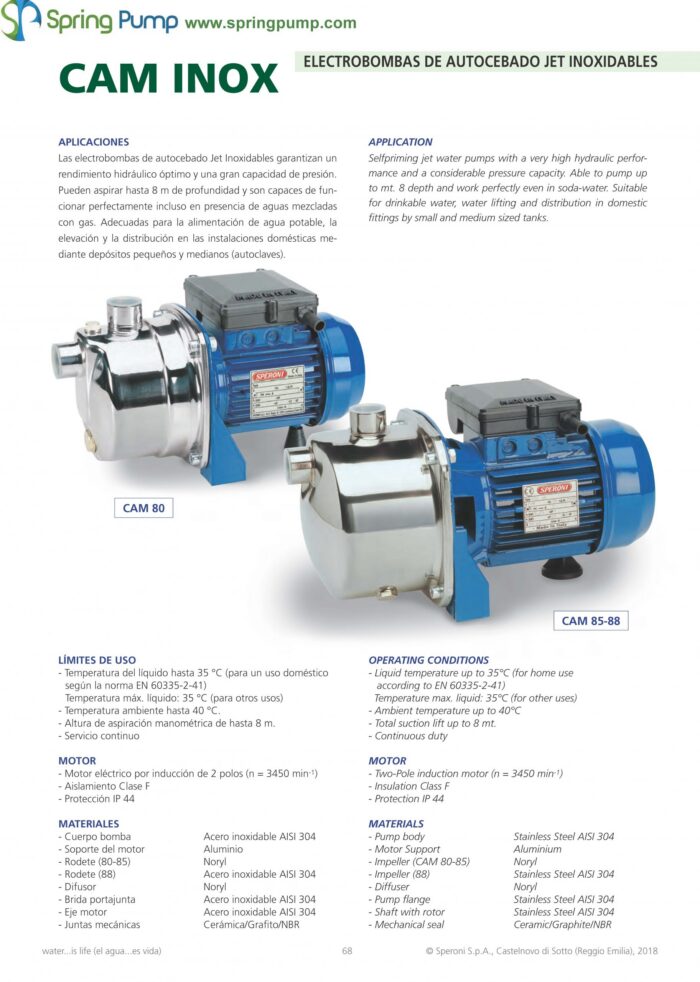

Download Catalog: SpringPump-SPERONI-SS-Catalog-CAM80-85-88.pdf
1 Year Warranty
Technical Specifications

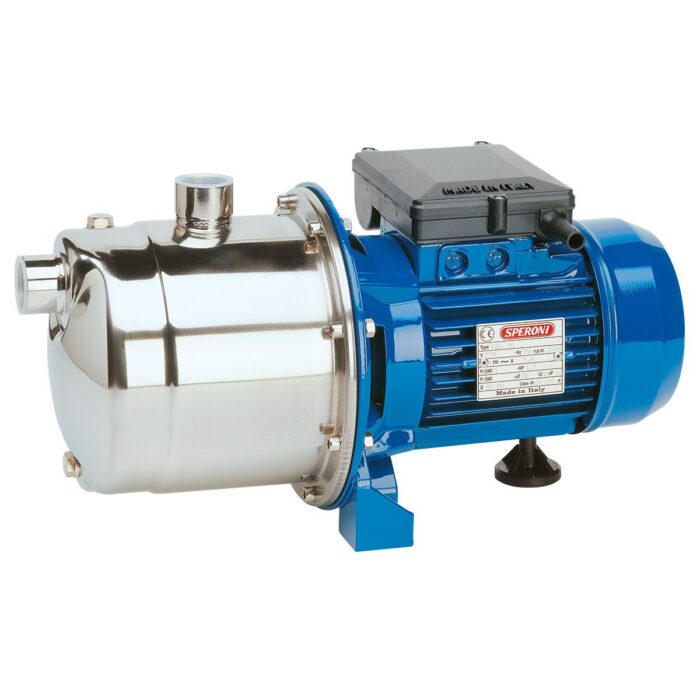

| Model | CAM88 |
| Brand | Speroni |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Impeller Material | Noryl |
| Port Size (in.) | 1 |
| Flow (GPH) | 792 |
| HP | 1 |
| Volts | 110/220V – 1 Phase |
| AMP | 11.5/5.0 |
| Max. Total Head (ft.) | 151 |
| Max. Suction Lift (ft.) | 26.2 |
| Max. PSI | 66.7 |
| Suction Port (in.) | 1″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 14.5 x 7 x 8 |
| Product Weight (lbs.) | 22.5 |
