Description
Applications

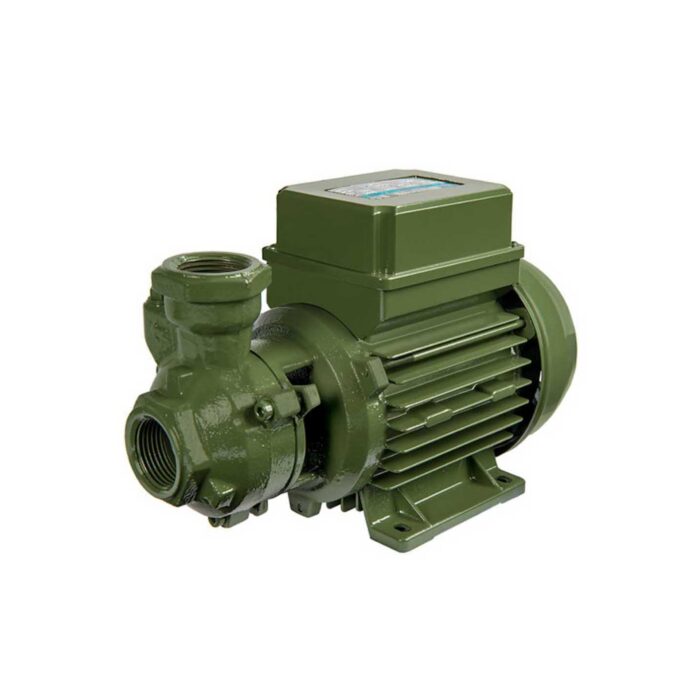

This SAER KF3 Booster Pump has a peripheral type impeller with brass material. These pumps are made in this way because on the extremities of the impeller there are several radial paddles that give more energy to the pumped liquid. The special shaping of the paddles gives the fluid a fast radial recycling motion between the paddles of the impeller and the pump body. This characteristic enables. The KF3 Water Booster Pump is great for general water supply, pressurized water using pressure vessels (autoclaves), horticultural irrigation, mist irrigation, boosting showers, dairy and farm applications, garden watering applications, to empty and fill cisterns for clean liquids only.
Features
- Mechanical seal in carbon/ceramic
- Rotor shaft in stainless steel with a seal for life bearings
- Maximum temperature of pumped liquid 5°F to 158°F
- Maximum ambient temperature 104°F
- Maximum working pressure 90 psi
- The working features listed in the catalog are based on continuous service for clear water with a specific weight of 62.5 lbs./3 ft.

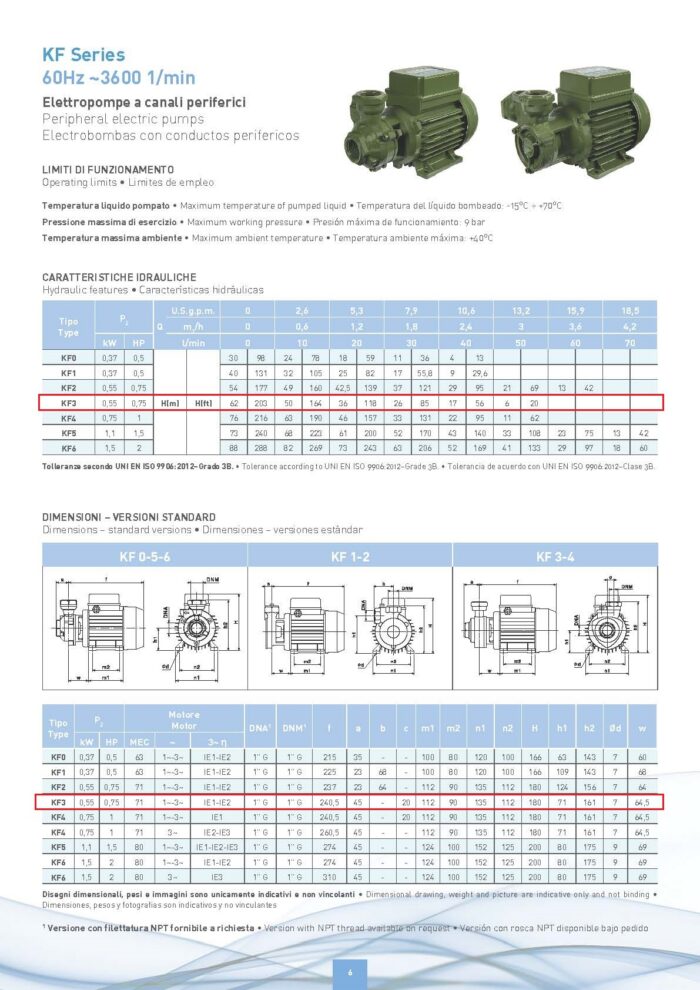

Download Catalog: SpringPump-SAER-Products.pdf
| 1 Year Warranty |
Technical Specifications
| Model | KF-3 Booster Pump |
| Brand | SAER |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Ship Weight | 24lbs |
| Port Size (in.) | 1″ |
| Flow (GPH) | 954 GPH |
| HP | 0.75 HP |
| Volts | 115V – Single Phase |
| Max. Total Head (ft.) | 203ft |
| Max. Suction Lift (ft.) | 17ft |
| Max. PSI | 90 psi |
| Suction Port (in.) | 1″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | Yes |

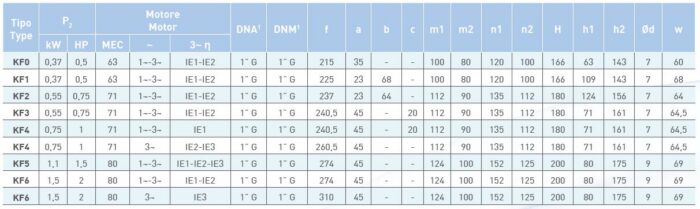

| Dimensions L x W x H (in.) | 11.3″ x 5.3″ x 7.1″ |
| Product Weight (lbs.) | 24lbs |
