Description
Applications

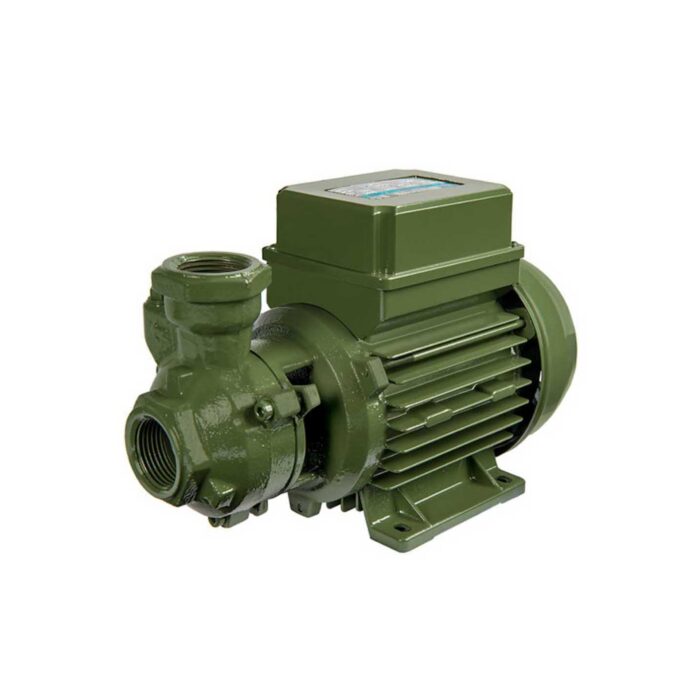

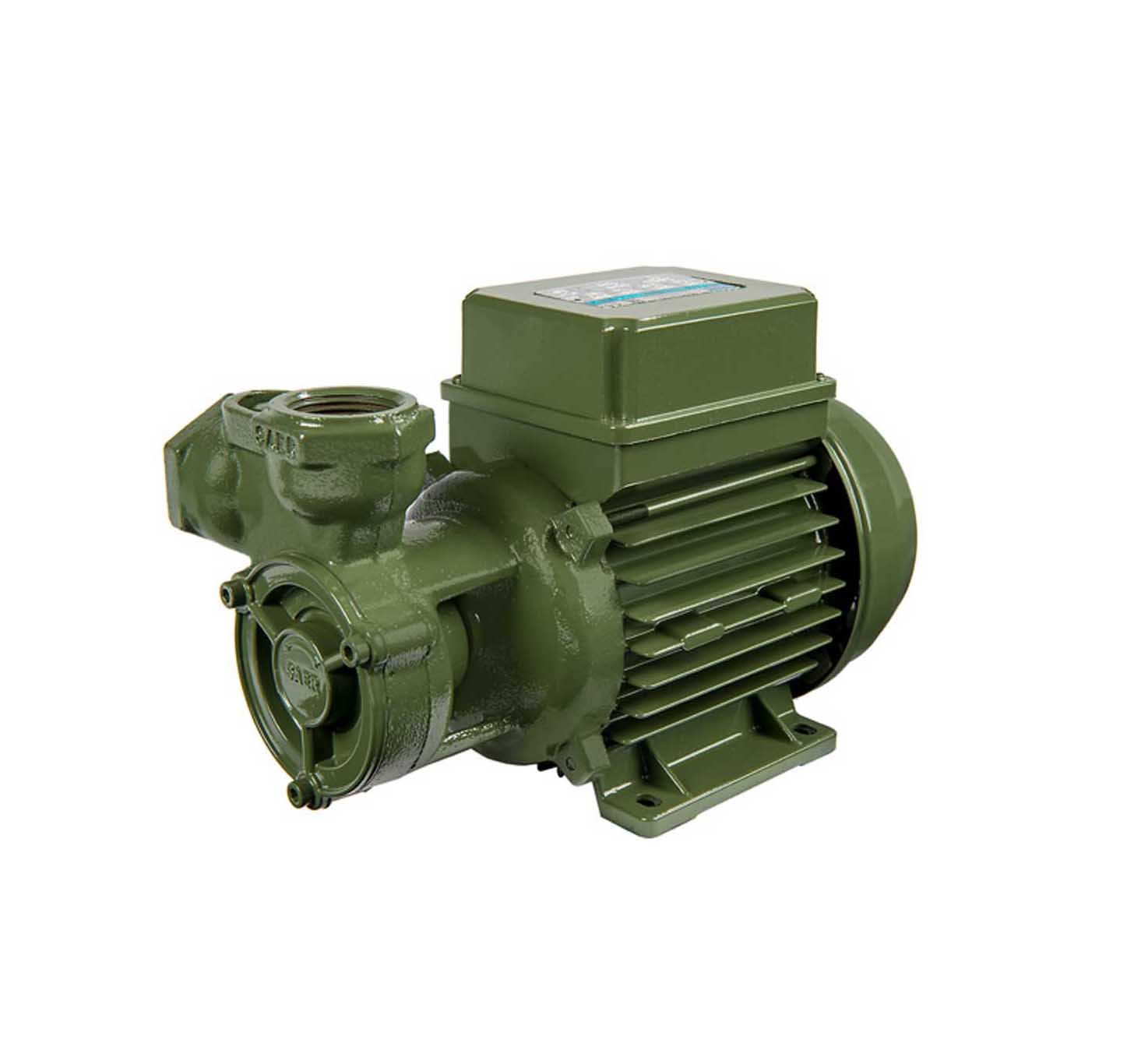

The SAER KF1 Booster Pump is a peripheral pump capable of 960 gallons per hour of flow. It can be used in a wide range of applications from domestic water supply to irrigation and farming.
This series of electric KF pumps have a peripheral type impeller with brass material. These pumps are made in this way because on the extremities of the impeller there are several radial paddles that give more energy to the pumped liquid. The special shaping of the paddles gives the fluid a fast radial recycling motion between the paddles of the impeller and the pump body. This characteristic enables. General water supply, pressurized water using pressure vessels (autoclaves), horticultural irrigation, mist irrigation, boosting showers, dairy and farm applications, garden watering applications, to empty and fill cisterns for clean liquids only.
Features
- Mechanical seal in carbon/ceramic
- Rotor shaft in stainless steel with seal for life bearings
- Maximum temperature of pumped liquid 5°F to 158°F
- Maximum ambient temperature 104°F
- Maximum working pressure 58 psi
- Working features listed in the catalog are based on continuous service for clear water with a specific weight of 62.5 lbs./3 ft.
More Details
- Cast iron body and motor support for rugged durability
- Pressed brass impeller provides corrosion resistance
- Carbon/ceramic mechanical seal for wear resistance and long life
- The stainless steel rotor shaft is strong and resists corrosion
- Totally enclosed fan-cooled motor
- 5°F–158°F temperature range
- 130.5 PSI max. working pressure

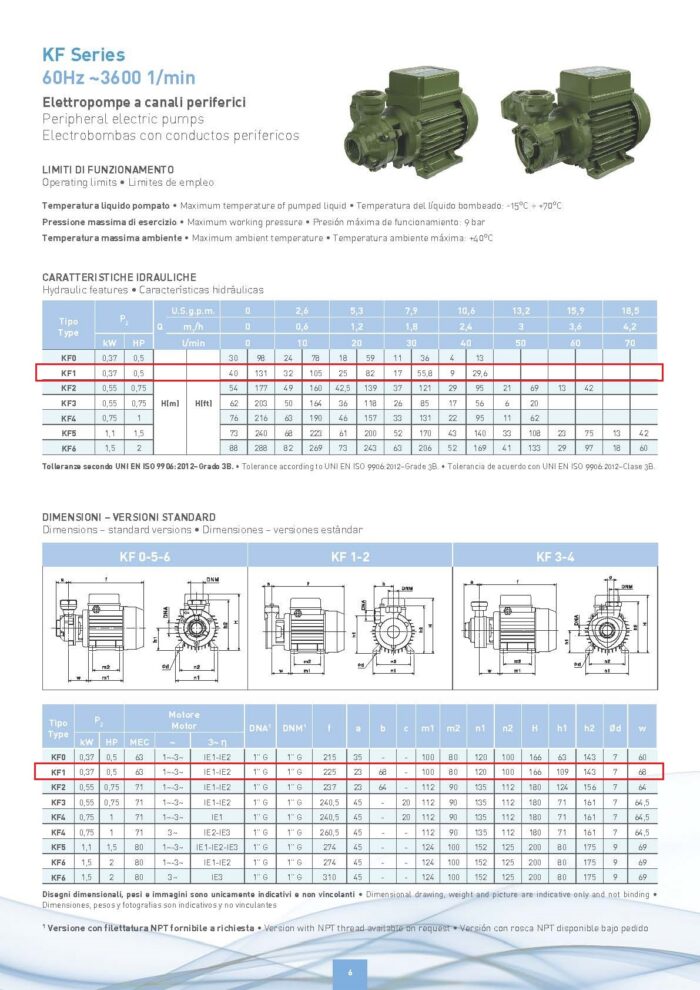

Download Catalog: SpringPump-SAER-Products.pdf
| 1 Year Warranty |
Technical Specifications
| Model | KF-1 |
| Brand | SAER-USA |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Ship Weight | 20lbs |
| Port Size (in.) | 1 |
| Flow (GPH) | 960GPH |
| HP | 0.5 HP |
| Volts | 115V – Single Phase |
| AMP | 4.6A |
| Max. Total Head (ft.) | 131ft |
| Max. Suction Lift (ft.) | 17ft |
| Max. PSI | 58 |
| Suction Port (in.) | 1″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 12″ x 6.5″ x 8.5″ |
| Product Weight (lbs.) | 15lbs |
