Description
This 2″ submersible pump from GOL Pumps is designed for efficient water supply in wells and reservoirs. With a maximum head of up to 146 feet, it is an excellent choice for 3″ diameter wells. This versatile pump is ideal for residential, industrial, and garden irrigation applications.
Key Features:
- Water supply from wells and reservoirs
- Comes with an integrated control box for easy operation
- Rewindable motor for durability and easy maintenance
Applications:
- Water supply from wells and reservoirs
- Suitable for domestic use and civil and industrial applications
- Perfect for garden irrigation and landscape watering
Operating Conditions:
- Maximum fluid temperature: 95°F (35°C)
- Maximum sand content: 0.25%
- Minimum well diameter: 2″
Motor and Pump Specifications:
- Rewindable motor for long-term performance
- Available in single-phase: 110V/60Hz or 220V/60Hz
- Comes with a start control. This 2″ submersible pump from GOL Pumps is an excellent solution for water supply in wells and reservoirs. With a powerful capacity to reach up to 146 feet of head, it is perfect for 3″ diameter wells. This high-performance pump is ideal for both domestic water supply and industrial applications.
Key Features:
- Water supply for wells and reservoirs
- Includes a control box for easy setup and operation
- Features a rewindable motor for long-lasting durability and ease of maintenance
Applications:
- Water supply from wells and reservoirs
- Designed for domestic use, civil and industrial applications
- Ideal for garden irrigation, landscape watering, and irrigation systems
Operating Conditions:
- Maximum fluid temperature: 95°F (35°C)
- Maximum sand content: 0.25%
- Minimum well diameter: 2″
Motor and Pump Specifications:
- Rewindable motor for reliable performance
- Available in single-phase motor options: 110V/60Hz or 220V/60Hz
- Equipped with a start control box for convenient operation
- Engineered to meet ISO 9906 casing stressed curve tolerance for optimal pump performance
This 2″ submersible pump is your go-to solution for reliable, efficient water pumping. Whether for domestic water supply, industrial water needs, or garden irrigation, the GOL 2″ pump ensures top-tier performance and durability. Get yours now for dependable, high-quality water management.
Description
Technical Specifications
| Pump Type | Thin Submersible Pump |
| Pump Brand | GOL Pumps |
| Pump Model | 2SDM7/23 |
| Warranty | 1 Year |
| Maximum Head | 146ft |
| Minimum Head | 36ft |
| Maximum Flow | 312 GPH |
| Minimum Fluid Temperature | 50°F |
| Maximum Fluid Temperature | 95°F |
| Maximum Ambient Temperature | 104°F |
| Discharge | 3/4″ NPT |
| Pump Material | Stainless Steel 304 |
| Pump Diameter | 2″ |

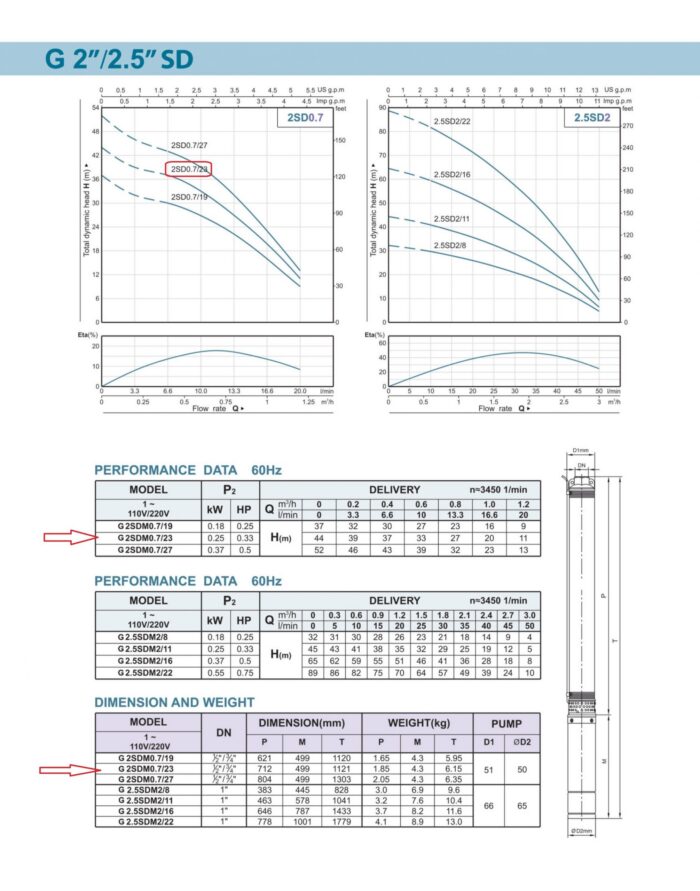

G 2″/2.5″ SD
Performance Data
| MODEL | P2 | DELIVERY N = 3450 1/min | |||||||||
| 1~
110V/220V |
KW | HP | Q | m3/h | 0 | 0.2 | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 |
| l/min | 0 | 3.3 | 6.6 | 10 | 13.3 | 16.6 | 20 | ||||
| G 2SDM0.7/23 | 0.25 | 0.33 | H (m) | 44 | 39 | 37 | 33 | 27 | 20 | 11 | |
Dimension and Weight
| MODEL | DN | DIMENSION(inch) | WEIGHT(lbs) | PUMP | |||||
| 1~
110V/220V |
P | M | T | P | M | T | D1 | D2 | |
| G 2SDM0.7/23 | 1/2″ | 3/4″ | 28 | 20 | 44 | 4 | 9.5 | 13.5 | 51 | 50 |
| Components | Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM C85500 |
| Suction lantern | Cast-Cu ASTM C85500 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | AISI 304 SS |
| Shaft coupling | AISI 304 SS |
| Wear ring | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
| Shaft | AISI 303 SS-ASTM 1045/5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
