GOL Pumps 2” Thin Submersible Well Pump – Auto Control Box, Rewindable Motor, 123ft Head
The GOL Pumps 2” Submersible Well Pump is designed for efficient water supply from wells and reservoirs, making it ideal for residential, agricultural, industrial, and irrigation applications. Engineered to operate in 2.5” diameter wells, this high-performance pump delivers a 123 ft max head and includes an auto control box for easy operation.
Key Features:
Thin 2” Submersible Pump – perfect for 2.5” wells
Max Head: 123 ft for deep well applications
Auto Control Box Included – hassle-free operation
Rewindable Motor for durability and long lifespan
Single-Phase Compatibility: 110V/60Hz or 220V/60Hz
ISO 9906 Compliant for superior efficiency
Ideal Applications:
✔ Water supply from wells and reservoirs
✔ Residential & domestic water systems
✔ Industrial and civil applications
✔ Garden irrigation & agricultural use
Operating Conditions:
🔹 Max Fluid Temperature: Up to 35°C
🔹 Max Sand Content: 0.25%
🔹 Minimum Well Diameter: 2”
Motor & Pump Specifications:
Rewindable motor for extended durability
Single-phase power options – 110V/60Hz or 220V/60Hz
Equipped with a start control box for reliable performance
Casing-stressed pump design ensures long-lasting efficiency
(Includes Wire Splice Kit for Easy Installation)
Upgrade your water system with the GOL Pumps 2” Thin Submersible Well Pump, built for efficiency, durability, and optimal water flow.
Description
Technical Specifications
Pump Type | Thin Submersible Pump |
Pump Brand | GOL Pumps |
Pump Model | 2SDM0.7/19 |
Warranty | 1 Year |
Maximum Head | 123ft |
Minimum Head | 30ft |
Maximum Flow | 312 GPH |
Minimum Fluid Temperature | 50°F |
Maximum Fluid Temperature | 95°F |
Maximum Ambient Temperature | 104°F |
Discharge | 3/4″ NPT |
Pump Material | Stainless Steel 304 |
Pump Diameter | 2″ |

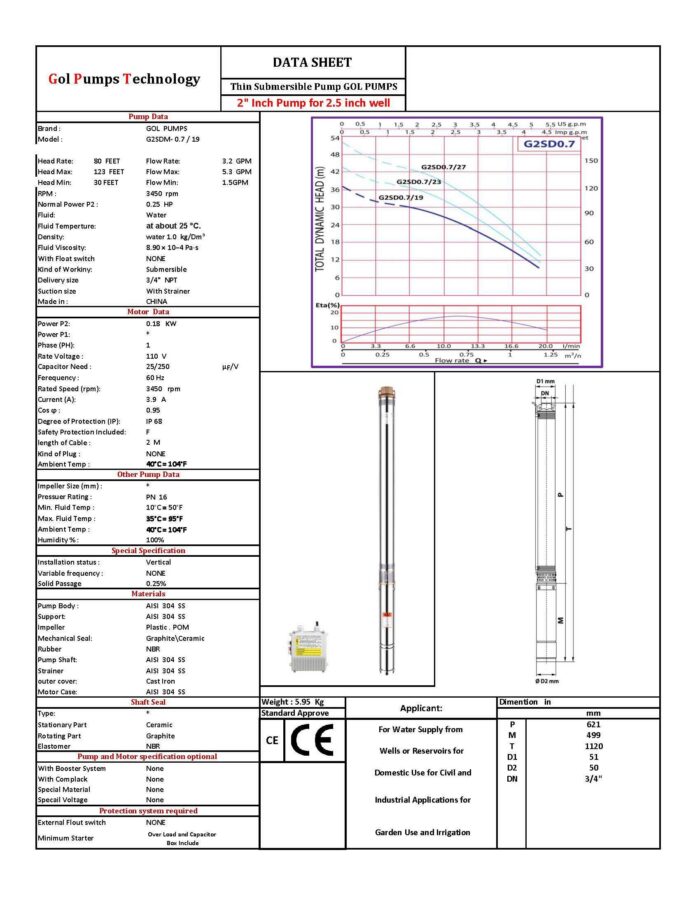

Performance Data
MODEL |
P2 | DELIVERY N = 3450 1/min | |||||||||
1~
110V/220V |
KW | HP | Q | m3/h | 0 | 0.2 | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 |
l/min | 0 | 3.3 | 6.6 | 10 | 13.3 | 16.6 | 20 | ||||
G 2SDM0.7/19 | 0.18 | 0.25 | H (m) | 37 | 32 | 30 | 27 | 23 | 16 |
9 |
Dimension and Weight
MODEL |
DN | DIMENSION(inch) | WEIGHT(lbs) | PUMP | |||||
1~
110V/220V |
P | M | T | P | M | T | D1 | D2 | |
G 2SDM0.7/19 | 1/2″ | 3/4″ | 24.4 | 20 | 44 | 4 | 9.5 | 13.1 | 51 |
50 |
Components | Material |
Pump external casing | AISI 304 SS |
Delivery casing | Cast-Cu ASTM C85500 |
Suction lantern | Cast-Cu ASTM C85500 |
Diffuser | Plastic.PC |
Impeller | Plastic.POM |
Shaft | AISI 304 SS |
Shaft coupling | AISI 304 SS |
Wear ring | AISI 304 SS |
Motor external casing | AISI 304 SS |
Top cover | Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 |
Bottom support | AISI 304 SS |
Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
Shaft | AISI 303 SS-ASTM 1045/5140 |
Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
