Thin-Submersible-Pump-springpump
GPT 3″ Thin Submersible Well Pump - 526Ft - 942 GPH - 3 Wire - 1.5HP* - Image 2
Thin-Submersible-Pump-springpump-M2-25

GPT 3″ Thin Submersible Well Pump – 526Ft – 942 GPH – 3 Wire – 1.5HP*

This 3″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach up to 526 feet of head and is a great fit for 3.5″ diameter wells.

428.00$

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0
SKU: N/A Categories: , , , ,

Description

This 3″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach up to 526 feet of head and is a great fit for 3.5″ diameter wells.

  • Water supply from wells and reservoirs
  • Comes with a control  box
  • Rewindable motor

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions

  • Maximum fluid temperature up to 95°F
  • Maximum sand content: 0.25%
  • Minimum well diameter: 3″

Motor and Pump

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box or digital auto-control box Pumps are designed by casing stressed Curve tolerance according to ISO 9906

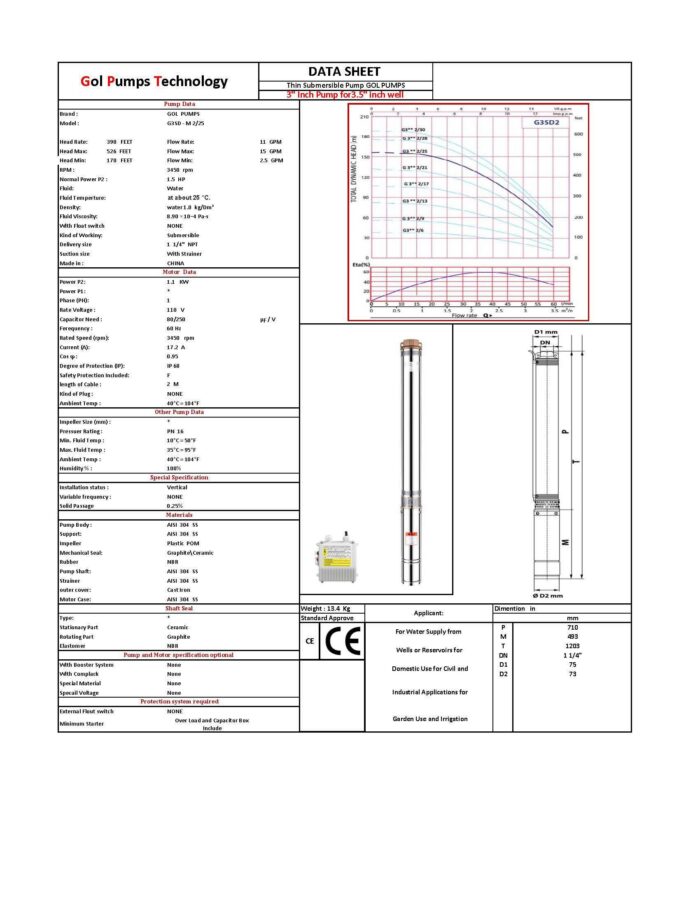

Technical Specifications

Pump Type Thin Submersible Pump
Pump Brand GOL Pumps
Pump Model 3SDM0.2/25
Warranty 1 Year
Maximum Head 526ft
Minimum Head 170ft
Maximum Flow 942 GPH
Minimum Fluid Temperature 50°F
Maximum Fluid Temperature 95°F
Maximum Ambient Temperature 104°F
Discharge 1.25″ NPT
Pump Material Stainless Steel 304
Pump Diameter 3″

Additional information

Brand

HP

Phase

Voltage

,
