Thin-Submersible-Pump-springpump
GPT 3.5″ Thin Submersible Well Pump - 110 Ft - 1890 GPH - 3 Wire - 0.75HP* - Image 2
GPT 3.5″ Thin Submersible Well Pump - 110 Ft - 1890 GPH - 3 Wire - 0.75HP* - Image 3

GPT 3.5″ Thin Submersible Well Pump – 110 Ft – 1890 GPH – 3 Wire – 0.75HP*

This 3.5″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach up to 110 feet of head and is a great fit for 4″ diameter wells.

298.00$

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0
SKU: N/A Categories: , , , ,

Description

This 3.5″ thin submersible pump from GOL Pumps can be used for water supply in wells and reservoirs. It can reach up to 110 feet of head and is a great fit for 4″ diameter wells.

  • Water supply from wells and reservoirs
  • Comes with a control  box
  • Rewindable motor

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions

  • Maximum fluid temperature up to 95°F
  • Maximum sand content: 0.25%
  • Minimum well diameter: 3.5″

Motor and Pump

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz
  • Equip with start control box or digital auto-control box Pumps are designed by casing stressed Curve tolerance according to ISO 9906

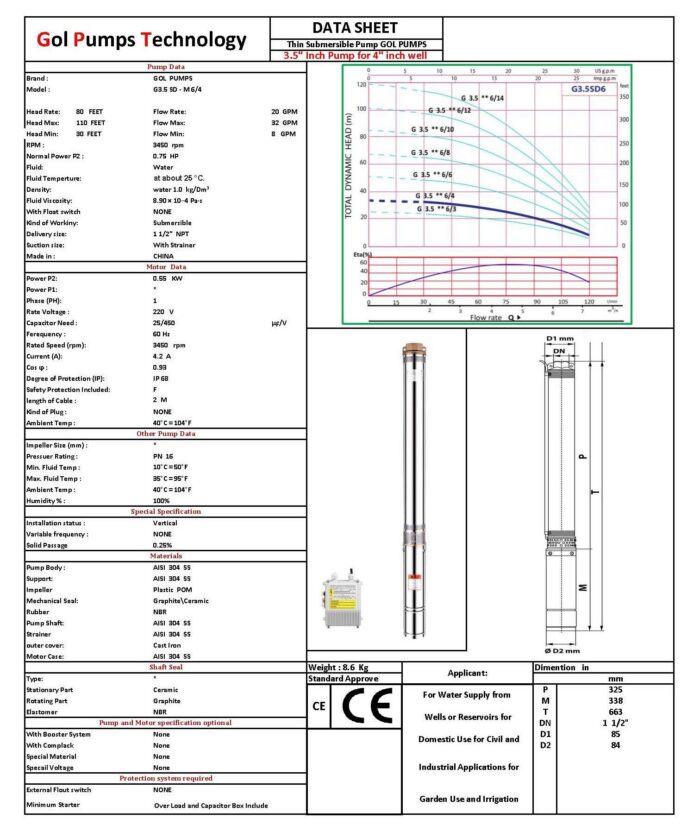

    Technical Specifications

    Pump Type Thin Submersible Pump
    Pump Brand GOL Pumps
    Pump Model 3.5SDM6/4
    Warranty 1 Year
    Maximum Head 110ft
    Minimum Head 30ft
    Maximum Flow 1920 GPH
    Minimum Fluid Temperature 50°F
    Maximum Fluid Temperature 95°F
    Maximum Ambient Temperature 104°F
    Discharge 1.5″ NPT
    Pump Material Stainless Steel 304
    Pump Diameter 3.5″

Additional information

Brand

HP

Phase

Voltage

,
