Description

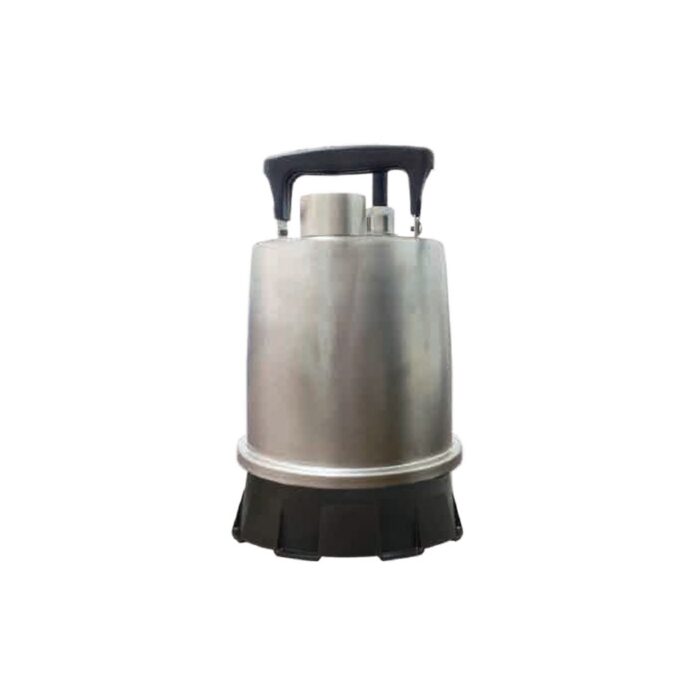

The Gol Pumps X1 03M32 Sump Pump is a submersible drainage pump with a maximum flow of 2532 GPH and a maximum head of 28.5ft.

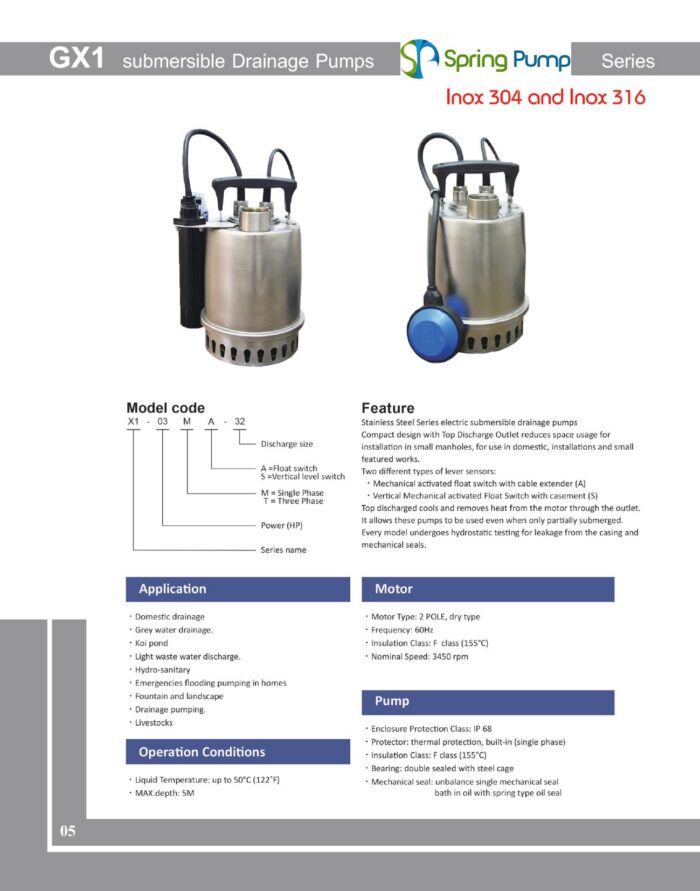

Features
- Stainless Steel Series electric Automatic submersible drainage sump pump
- Compact design with Top Discharge Outlet reduces space usage for installation in small manholes, for use in domestic, installations and small featured works
- Two different types of lever sensors:
- Mechanically activated float switch with cable extender (A)
- Vertical Mechanical activated Float Switch with casement (S)
Top discharged cools and removes heat from the motor through the outlet. It allows these pumps to be used even when only partially submerged. Every model undergoes hydrostatic testing for leakage from the casing and mechanical seals.
Applications
- Domestic drainage
- Greywater drainage
- Koi ponds
- Light wastewater discharge
- Hydro-sanitary
- Emergency flooding in homes
- Fountains and landscapes
- Drainage pumping.
- Livestock
Operation Conditions
- Liquid Temperature: up to 50°C (122˚F)
- Max depth: 16.5ft
- Max Head: 28.5ft.
- Max F: 2532 GPH
Motor
- Motor Type: 2 pole, dry type
- Frequency: 60Hz
- Voltage: 220V – Single Phase
- Insulation Class: F class (311°F)
- Nominal Speed: 3450 rpm
Pump
- Enclosure Protection Class: IP 68
- Protector: thermal protection, built-in (single phase)
- Insulation Class: F class (155°C)
- Bearing: double sealed with steel cage
- Mechanical seal: unbalance single mechanical seal (bath in oil with spring type oil seal)

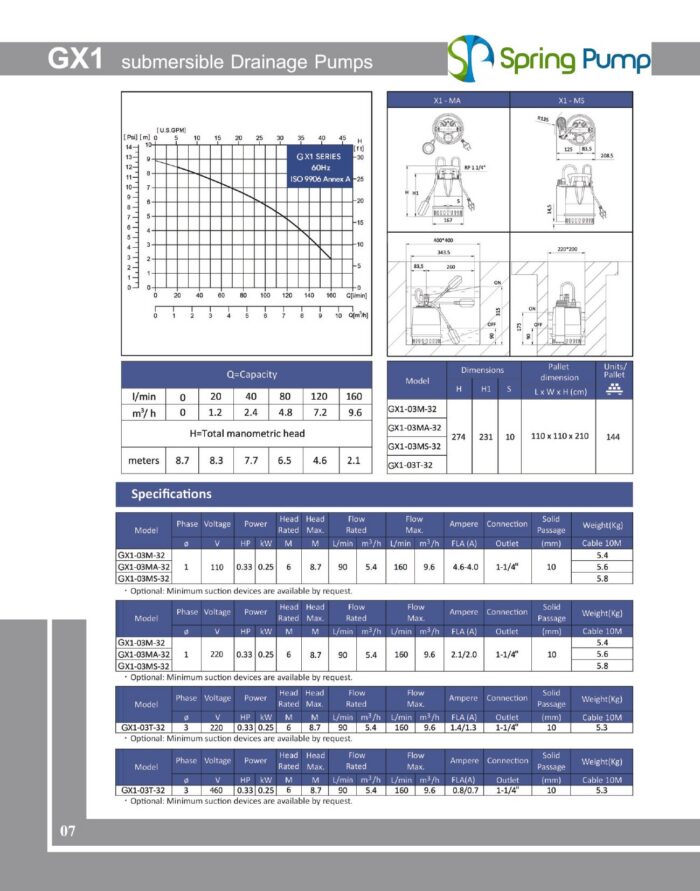

Technical Specifications
| Brand | Gol Pumps |
| Item | X1 03M32 |
| Warranty | 1 Year |
| Volts | 220v |
| Amps | 2.1 A |
| Connection | 1.25″ |
| Max Flow | 2532 GPH |
| Max Head | 28.5ft |
| Product Width | 13 in |
| Product Length | 13 in |
| Product Height | 11 in |
| Weight | 15lb |
Download the Manual:
