Gol Pumps – X1 03MS32 (110V)- Sump Pump – 2532 GPH – 0.3HP – Single Phase

Description

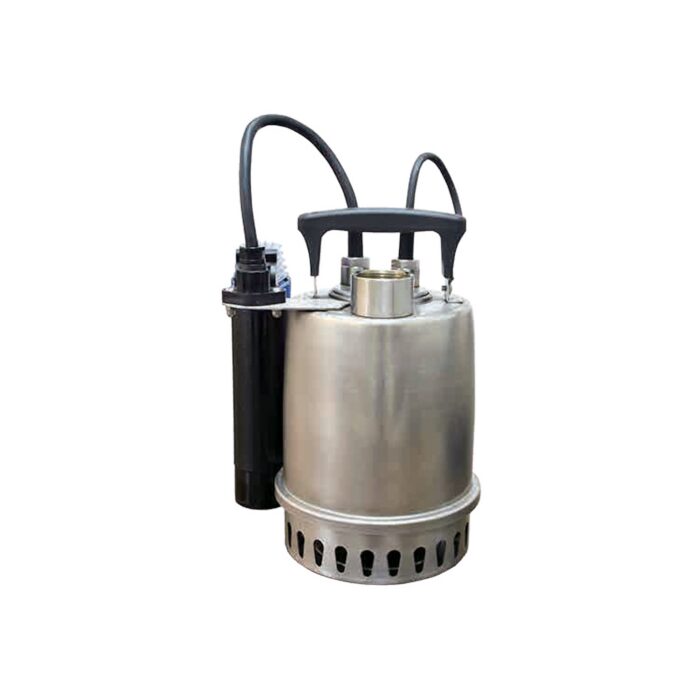

Gol Pumps X1 03MS32 Automatic Submersible Sump Pump – 2,532 GPH, 28.5 ft Head

The Gol Pumps X1 03MS32 is a high-efficiency submersible sump pump engineered for residential drainage, light wastewater management, and emergency water removal. With a maximum flow rate of 2,532 gallons per hour (GPH) and a maximum head of 28.5 feet, this compact pump delivers powerful performance in a small, durable design.

Key Features

• Stainless Steel Construction
  Built from high-quality stainless steel for durability and corrosion resistance, ideal for long-term use in wet and corrosive environments.

• Compact Top Discharge Design
  Designed for tight installations such as small sump pits or shallow manholes. The top discharge layout efficiently cools the motor, even when only partially submerged.

• Automatic Operation with Float Switch Options
  Choose from two sensor types to suit your setup:

  • (A) Mechanical float switch with cable extender

  • (S) Vertical float switch with casing

• Leak-Proof and Tested
  Each pump undergoes hydrostatic testing to ensure no leakage through the casing or seals, providing peace of mind and consistent performance.

Common Applications

This automatic submersible drainage pump is ideal for a variety of residential and light-duty applications, including:

• Basement sump and crawl space drainage

• Greywater and light wastewater disposal

• Koi ponds and backyard water features

• Emergency home flood response

• Fountains and landscape irrigation

• Livestock area drainage

• Small-scale hydro-sanitary systems

Operating Conditions

• Maximum Flow: 2,532 GPH

• Maximum Head: 28.5 ft

• Maximum Submersion Depth: 16.5 ft

• Liquid Temperature: Up to 122°F (50°C)

Motor Specifications

• Type: 2-pole, dry motor

• Speed: 3450 RPM

• Voltage: 110V, Single Phase

• Frequency: 60Hz

• Insulation Class: F (311°F)

• Thermal Protection: Built-in for safe operation

Pump Design

• Enclosure Rating: IP68 – fully submersible and sealed against water and debris

• Bearings: Double-sealed with steel cage for extended lifespan

• Mechanical Seal: Oil-bathed unbalanced seal with spring-type oil seal for leak prevention

• Pump Insulation: F class (155°C) for reliable heat resistance
