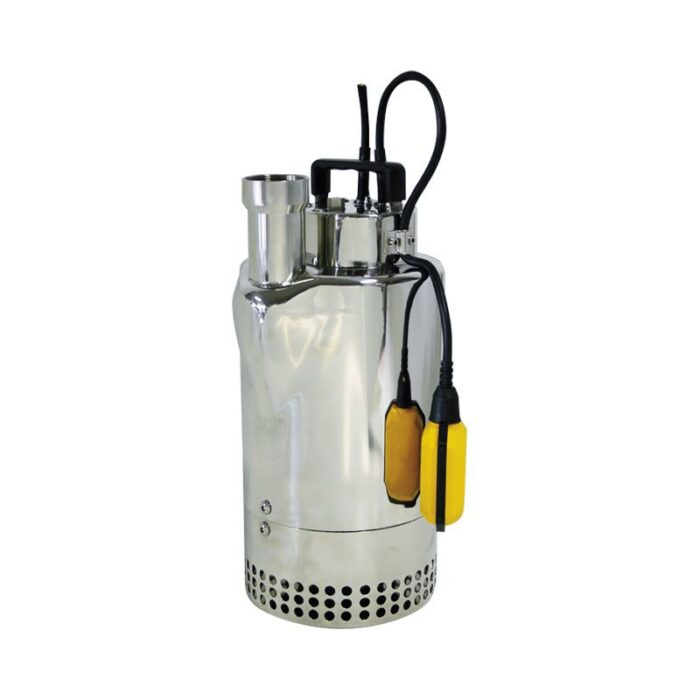

JONTRACT – 250 Auto-DRAINAGE SUBMERSIBLE PUMP-3.3HP – SINGLE PHASE

Description

Applications

• Worksite, trench ducts, and underground passage pump out.
• Suited to cellar, garage, and basement pump out.
• Handling of moderately foul water with material and/or abrasive material contents.

Features

• Oil bath motor (biodegradable and dielectric oil) for cooling and bearing lubrication.
• Double mechanical seals: engine face: oil bath. pump face: water bath.
• Permissible draught of water: 5 m.
• Max Head: 74 ft.
• IP68 protection class.
• Class “F” insulation.
• Max. pumped liquid temperature: 35°C.
• Bypass section: 10 mm.
• Versions:
  Single-phase: 230V/ 60Hz: with built-in thermal protection and permanent capacitor. (3.35HP) / with built-in thermal protection and plastic casing power supply box comprising capacitor and switch.
• Motor power: From 2,5 kW – (3.35 HP) single phase.
• Automatic version with a floater.
  Single-phase: 32.8 ft. H07RN-F complete with power supply box / 2.29 ft. cable section, without connection plug. (3.35 HP)

 Made In Italy

Made in Italy
