Description
Applications
The SAER Self Priming Cast Iron Shallow Well Jet M400C, 1.5 HP, Single phase, 115-Volt, 60 HZ, NPT TREAD, BRASS & CAST-IRON IMPELLER. General water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, farm also industrial applications. Water transfer and garden watering applications. The maximum lift is 135 ft. and the Maximum flow 2640 GPH.
Features
- Cast iron body for rugged durability
- Pressed brass impeller provides corrosion resistance
- Carbon/ceramic mechanical seal for wear resistance and long life
- The stainless steel rotor shaft is strong and resists corrosion
- Totally enclosed fan-cooled motor
More Details
- Pump body in cast iron
- Diffuser in thermoplastic resin
- Mechanical seal in carbon/ceramic
- Maximum temperature of pumped liquid 5°F to 122°F
- Maximum working pressure 130.5 psi
- Maximum ambient temperature 104°F; for higher temperatures

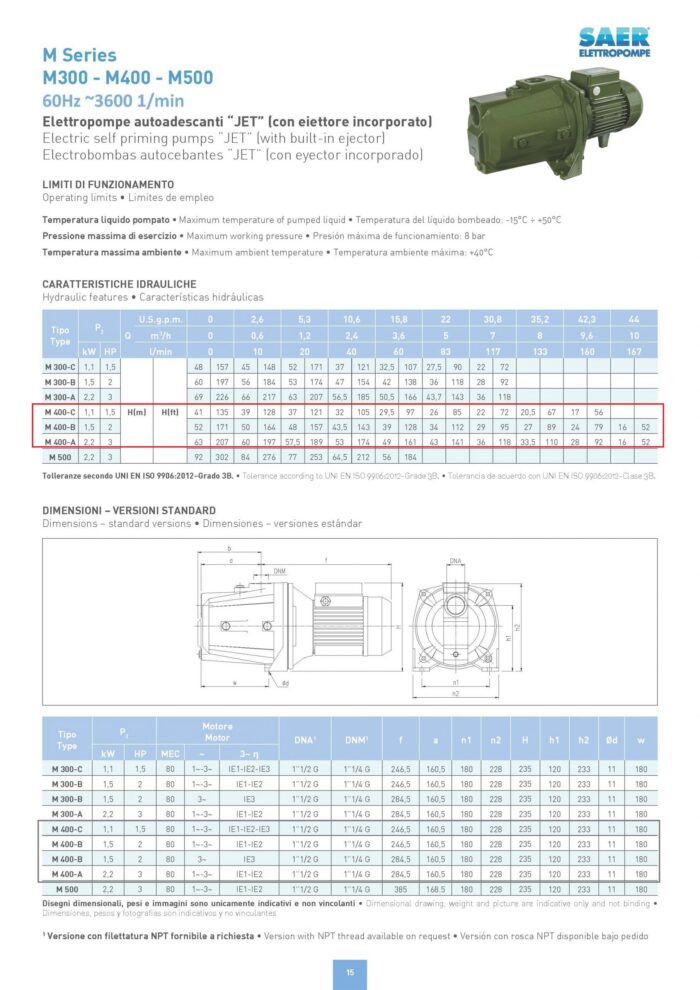

Download Catalog: SpringPump-SAER-Products.pdf
| 1 Year Warranty |
Technical Specifications
| Model | M-400C |
| Brand | Saer-USA |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Ship Weight | 72.0 lbs |
| Port Size (in.) | 1-1/2 and 1-1/4 |
| Flow (GPH) | 2640 |
| HP | 1.5 |
| Volts | 115V – Single Phase – 60Hz |
| Amp | 21A |
| Max. Total Head (ft.) | 135ft |
| Max. Suction Lift (ft.) | 17ft |
| Max. PSI | 59.5 |
| Suction Port (in.) | 1.5″ |
| Discharge Port (in.) | 1.25″ |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 16.3 x 9 x 9.2 |
| Product Weight (lbs.) | 72 |
