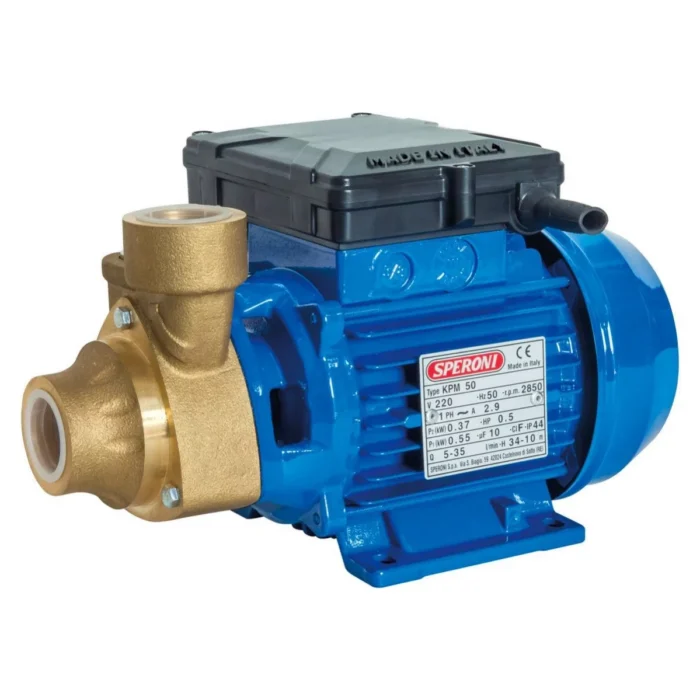

The Speroni KPM 50 BR Booster Pump is a 1/2HP, 554 GPH, water-boosting volumetric pump for clear water.
388.99$
In Stock1 Year Warranty
Technical Specifications
| Model | KPM50 BR Booster Pump |
| Brand | Speroni |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Ship Weight | 14lb |
| Port Size (in.) | 1″ |
| Flow (GPH) | 554 GPH |
| HP | 1/2HP |
| Volts | 110V / 220V |
| AMP 110V | 5.7A |
| AMP 220V | 2.9A |
| Max. Total Head (ft.) | 125ft |
| Max. Suction Lift (ft.) | 23ft |
| Max. PSI | 55 psi |
| Suction Port (in.) | 1″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 8.8″ x 4.8″ x 5.6″ |
| Product Weight (lbs.) | 13.5lbs |
| Weight | 13.5 lbs |
|---|---|
| Dimensions | 8.8 × 4.8 × 5.6 in |
| Brand | |
| HP | |
| Phase | |
| Voltage |
4” Asynchronous two-poles submersible motor, made in AISI 304 stainless steel for parts in contact with water. Cooling and lubrication of the thrust bearing assembly and carbon bushes are provided by a mixture of water and glycol. Squirrel-cage rotor mounted on Kingsbury self-centering thrust bearing. Stator housed in an airtight stainless steel casing (canned-type) with both flangs and shell in AISI 304L stainless steel. Removable cable connector to allow fast and easy maintenance. The cable is certified ACS, WRAS, and KTW. Motor suitable for use with (60 Hz) frequency drive. For the single-phase 60 Hz version the thermal protection is included in the motor (from 0,5 HP to 1 HP). Overload protection must be provided by the user for the three-phase versions.
4″ Asynchronous two-poles submersible motor, made in AISI 304 stainless steel for parts in contact with water. Cooling and lubrication of the thrust bearing assembly and carbon bushes are provided by a mixture of water and glycol. Squirrel-cage rotor mounted on Kingsbury self-centering thrust bearing. Stator housed in an airtight stainless steel casing (canned-type) with both flangs and shell in AISI 304L stainless steel. Removable cable connector to allow fast and easy maintenance. The cable is certified ACS, WRAS, and KTW. Motor suitable for use with (60 Hz) frequency drive. For the single-phase 60 Hz version the thermal protection is included in the motor (from 0,5 HP to 1 HP). Overload protection must be provided by the user for the three-phase versions.
4” Asynchronous two-poles submersible motor, made in AISI 304 stainless steel for parts in contact with water. Cooling and lubrication of the thrust bearing assembly and carbon bushes are provided by a mixture of water and glycol. Squirrel-cage rotor mounted on Kingsbury self-centering thrust bearing. Stator housed in an airtight stainless steel casing (canned-type) with both flangs and shell in AISI 304L stainless steel. Removable cable connector to allow fast and easy maintenance. The cable is certified ACS, WRAS, and KTW. Motor suitable for use with (60 Hz) frequency drive. For the single-phase 60 Hz version the thermal protection is included in the motor (from 0,5 HP to 1 HP). Overload protection must be provided by the user for the three-phase versions.
