Description
Description
The Gol Pumps Full Trash Water Pump delivers powerful performance to handle big jobs. The sturdy frame protects the pump and provides a tie-down location during transportation. The cast iron volute and impeller increase the pump life.
The engine is easy to start and provides ample power for the toughest conditions. The TG features abrasion-resistant silicone-carbide seals for extended wear. The frame protects the pump while offering a convenient tie-down location for transport. 4-stroke 196CC OHV engine pumps water and debris up to 9/16 in. size. Also features a tubular steel frame, 8 in. Never Flat tires and foldaway handle. It has a delivery volume of 158 GPM 0.9 Gal. fuel capacity. 26 ft. suction-head length. 98 ft. total-head length. 2 in. inlet and outlet diameter. 19.2 in. L x 20.8 in. W x 25 in. H. weight: 66.1 lbs.
- Cast iron volute and impeller reduces case wear, increasing the life of the pump
- Protects the pump by shutting the engine off when low oil is detected
- Providing metal filter with solid size capacity 14 mm
- TG is designed for quick and easy service

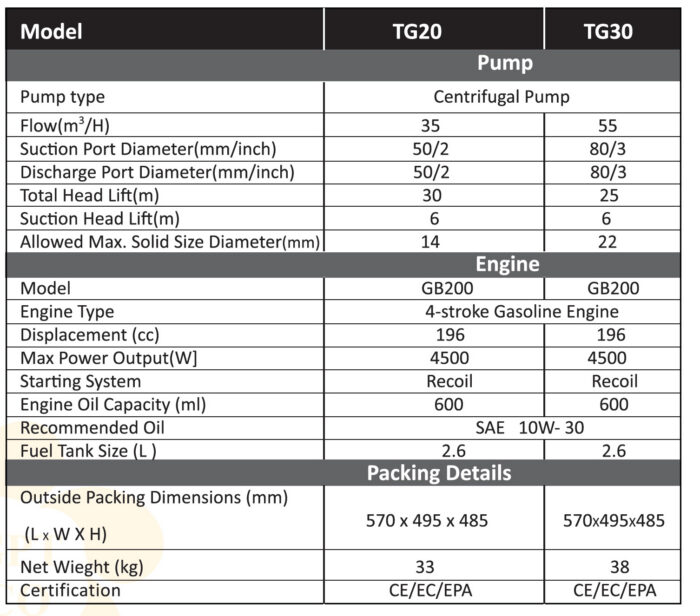

Specifications & Technical information
| Item | TG30 |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1-year Limited Warranty |
| Ship Weight | 81.6 lbs |
| Engine Displacement (cc) | 196 |
| Flow (GPH) | 14,529 |
| Engine | GB200 |
| Engine Type | 4-stroke gasoline |
| HP | 6 |
| Max. PSI | 36.2 |
| Engine Speed (RPM) | 3,800 |
| Suction Port (in.) | 3 |
| Discharge Port (in.) | 3 |
| Max. Suction Lift (ft.) | 23 |
| Max. Total Head (ft.) | 81 |
| Self-Priming | Yes |
| Solid Handling (in.) | 0.87 |
| Seals | Silicon carbide |
| Impellers | Cast iron |
| Volute | Cast iron |
| Max. Fluid Temp. (°F) | 104 |
| Start Type | Recoil |
| Fuel Capacity (gal.) | 0.68 |
| Run Time | 4 |
| Low Oil Shutdown | Yes |
| Dimensions L x W x H (in.) | 22.5 x 19.6 x 19.1 |
| Product Weight (lbs.) | 81.6 |
