Description
HG50-1.5 is a SPERONI self-priming “Trash Pump” which is suitable to drain the clean or slightly dirty water and in flood irrigation systems. The power of this pump is 2 HP and the voltage is 220V with 4.5 Amp. The electricity power is three-phase with 60HZ. The Inlet/Outlet of this pump is 2″.
HG50-1.5 is a trash pump and is able to pump clean or slightly dirty water and in flood irrigation systems. The open impeller of this pump enables it to pump clean and slightly dirty water.
APPLICATION
Self-priming monoblock water pumps with open impeller.
The check valve inside the suction outlet avoids the siphoning effect when stopping and assures the automatic re-start each time.
This pump self primes even if partially filled and if the suction hose is completely empty.
Suitable to drain the clean or slightly dirty water and in flood irrigation systems.
PERFORMANCE
HG50-1.5 Suitable to drain the clean or slightly dirty water and in flood irrigation systems. and the maximum head of pumping water is 62.3 ft and the water flow is 158.5 GPM (gallon per minute).

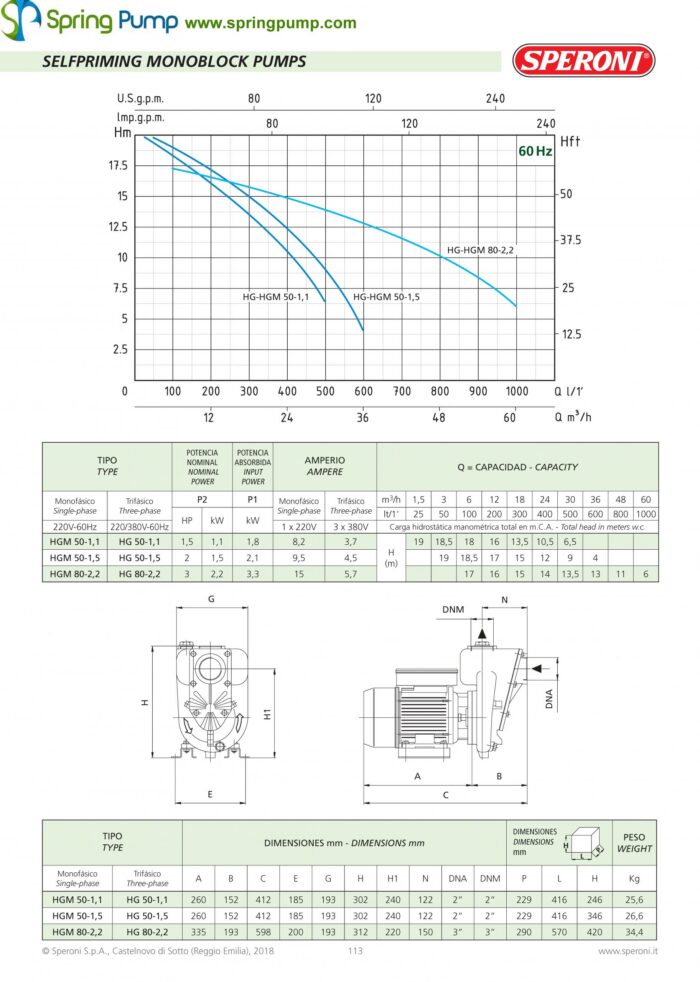

As you may know, the water flow is not the same at different heights. Please see the performance graph to find the exact water flow at the needed pumping head.
- Max Head: 62.3 ft
- Flow: 158.5 GPM
OPERATING CONDITIONS
– Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
– Temperature max. liquid: 90°C (for other uses)
– Ambient temperature up to 40°C
– Total suction lift up to 7 mt.
– Continuous duty
MOTOR
– Two-Pole induction motor (n = 3450 min-1)
– Insulation Class F
– Protection IP 55
MATERIALS
– Pump body: Cast Iron
– Motor Support: Cast Iron
– Impeller: Cast Iron
– Shaft with rotor: Stainless Steel AISI 304
– Mechanical seal: Ceramic/Graphite/NBR

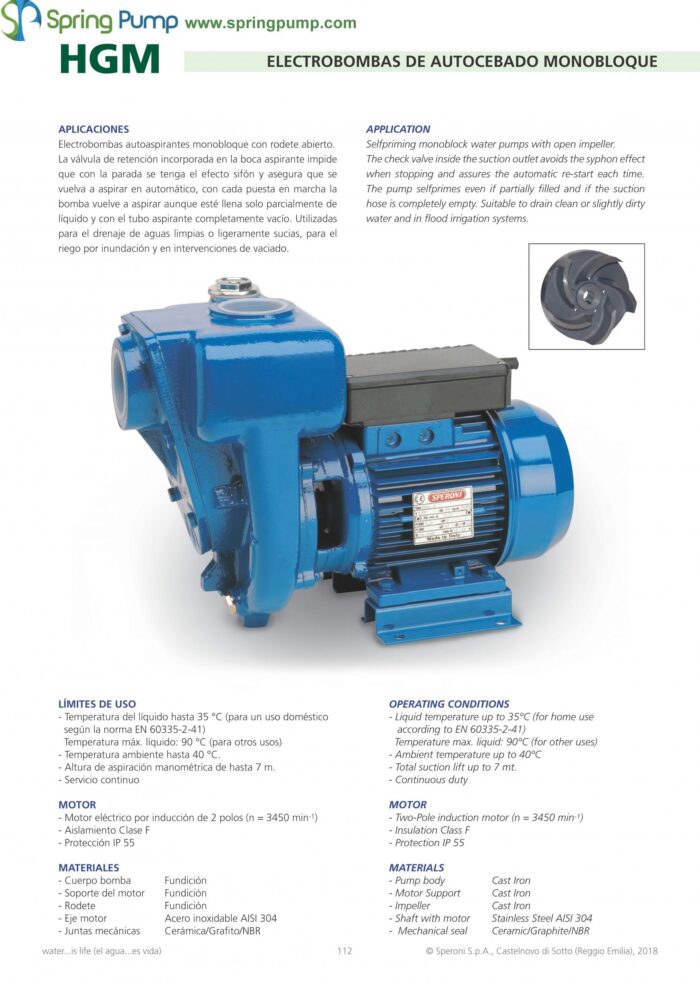

Download Catalog: SpringPump-SPERONI-Catalog-HGM50-HG50.pdf
1 Year Warranty
You may want to check out the features of the different power of this pump:
