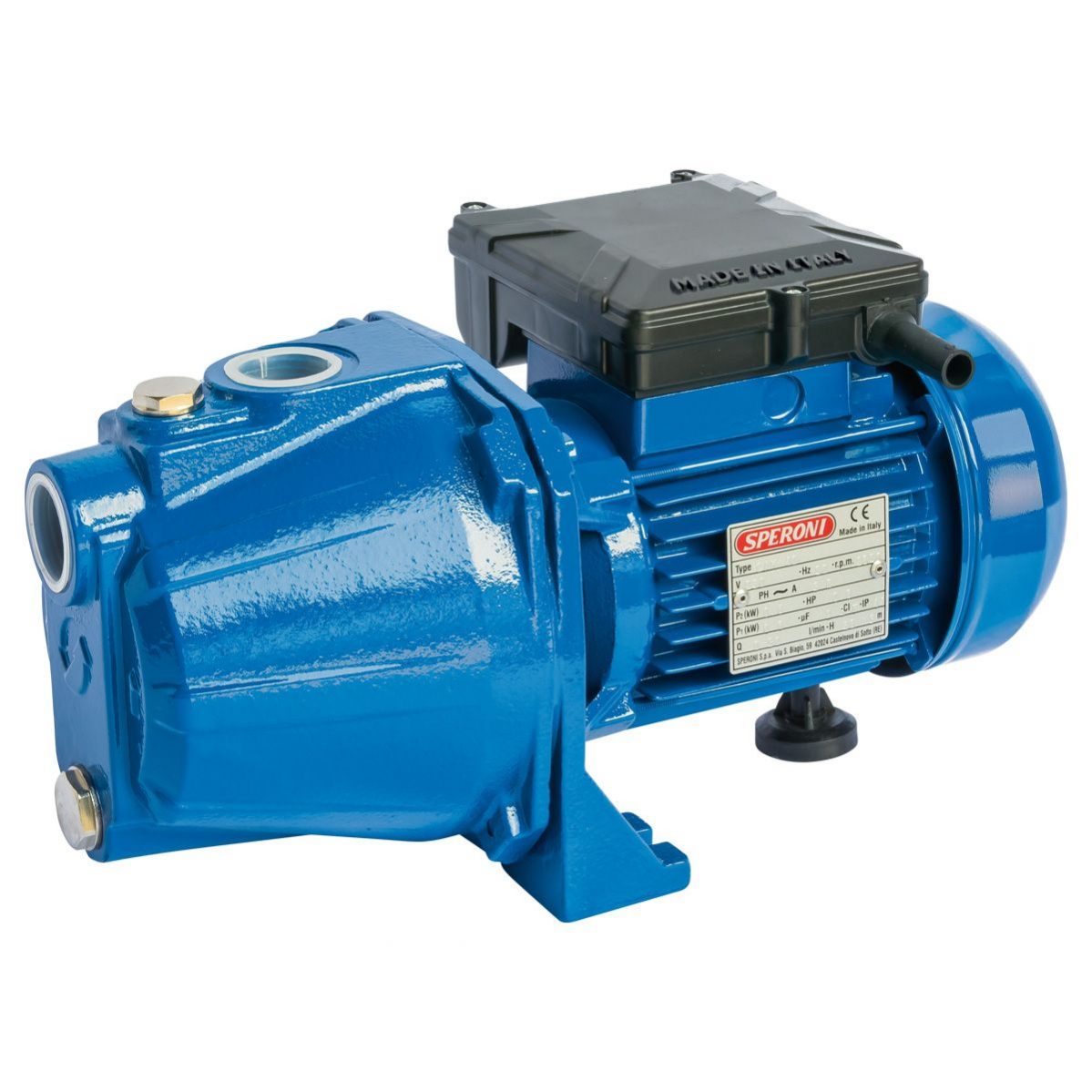

Speroni CAM60 Shallow Well Jet Pump – 4/5HP – 792 GPH – 1″

The Speroni CAM60 is a 4/5 HP shallow well jet pump, delivering up to 792 GPH (gallons per hour). Designed for domestic water supply, irrigation, and pressure boosting, this pump ensures efficient water flow in shallow well applications.

Estimated Delivery Time: 3 – 5 Business Days

348.00$

In Stock
SKU: 1811101 Categories: , Tag:

Description

Speroni CAM60 Shallow Well Jet Pump – High Performance & Durable Build

The Speroni CAM60 is a 4/5 HP shallow well jet pump, delivering up to 792 GPH (gallons per hour). Designed for domestic water supply, irrigation, and pressure boosting, this pump ensures efficient water flow in shallow well applications.

Key Features

  • High Performance: 4/5 HP motor delivers 792 GPH for efficient water transfer
  • Durable Construction: Built with high-quality materials for longevity
  • Ideal for Shallow Wells: Designed for residential, irrigation, and pressure-boosting applications

Material Construction

  • Pump Body: Heavy-Duty Cast Iron – Ensures stability & durability
  • Pump Flange: Stainless Steel 304 – Corrosion-resistant for extended lifespan
  • Shaft & Rotor: Stainless Steel 304 – Enhancing efficiency & longevity

The Speroni CAM60 Shallow Well Jet Pump is reliable, powerful, and durable for all shallow well water needs.

Speroni CAM60 Shallow Well Jet Pump – High Performance & Reliable Design

The Speroni CAM60 is a self-priming shallow well jet pump designed for efficient water lifting and distribution. With its high hydraulic performance and strong pressure capacity, it is ideal for domestic water supply, small irrigation systems, and pressure-boosting applications.

Applications

  • Self-priming with a suction depth of up to 26.2 ft
  • Operates efficiently even in soda water
  • Suitable for water lifting and distribution in domestic and small to medium-sized tank systems

Operating Conditions

  • Liquid Temperature: Up to 95°F
  • Ambient Temperature: Up to 104°F
  • Total Suction Lift: Up to 26.2 ft

Motor Specifications

  • Single-phase: 110/230V – 60Hz
  • Insulation Class F for enhanced protection
  • IP 44-rated for dust and water resistance

Material Construction

  • Pump Body: Heavy-duty Cast Iron – Ensures stability and durability
  • Motor Support: Aluminum – Lightweight yet sturdy
  • Impeller & Diffuser: Noryl – Corrosion-resistant for extended lifespan
  • Pump Flange & Shaft with Rotor: Stainless Steel 304 – Enhances efficiency and longevity
  • Mechanical Seal: Ceramic/Graphite/NBR – Designed for reliability

The Speroni CAM60 Shallow Well Jet Pump is a powerful, durable, and efficient solution for residential water supply, irrigation, and pressure-boosting needs.

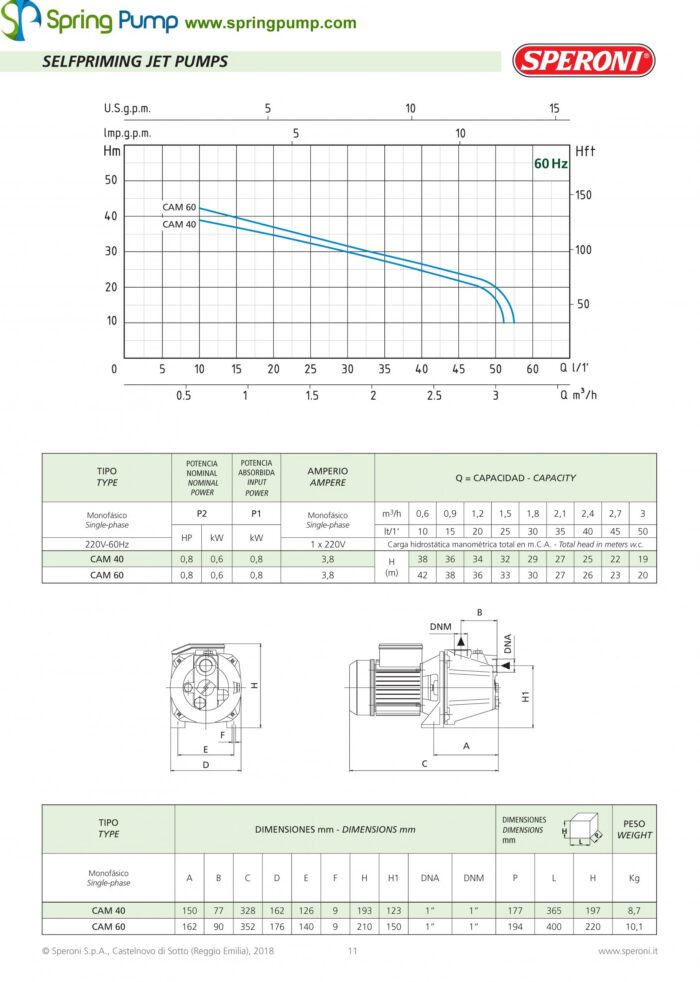

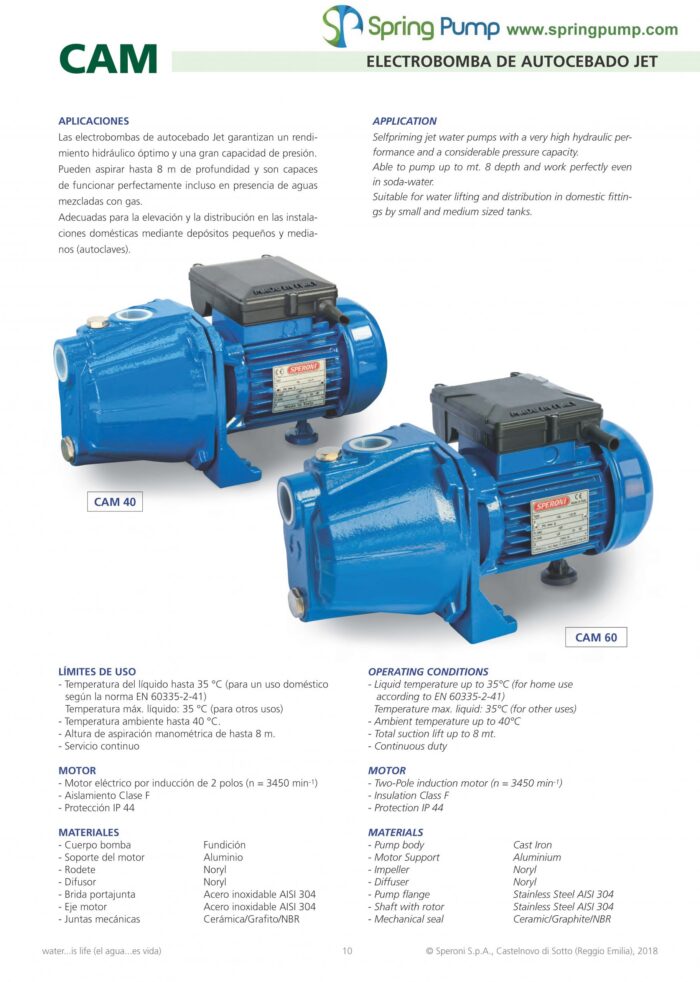

Downloadable Information

Users Manual

Tech Data

1 Year Warranty

Technical Features

Model CAM60
Brand Speroni
Manufacturer’s Warranty 1-year Limited Warranty
Impeller Material Noryl
Port Size (in.) 1″
Flow (GPH) 792 GPH
HP 4/5HP
Volts 110/220V – 1 Phase
AMP 8.8/3.8
Max. Total Head (ft.) 137.7ft
Max. Suction Lift (ft.) 26.2ft
Max. PSI 61psi
Suction Port (in.) 1″
Discharge Port (in.) 1″
Self-Priming Yes
Dimensions L x W x H (in.) 13.8″ x 7″ x 8.2″
Product Weight (lbs.) 22.2lbs

Additional information

Weight 22 lbs
Dimensions 13.8 × 7 × 8.2 in
