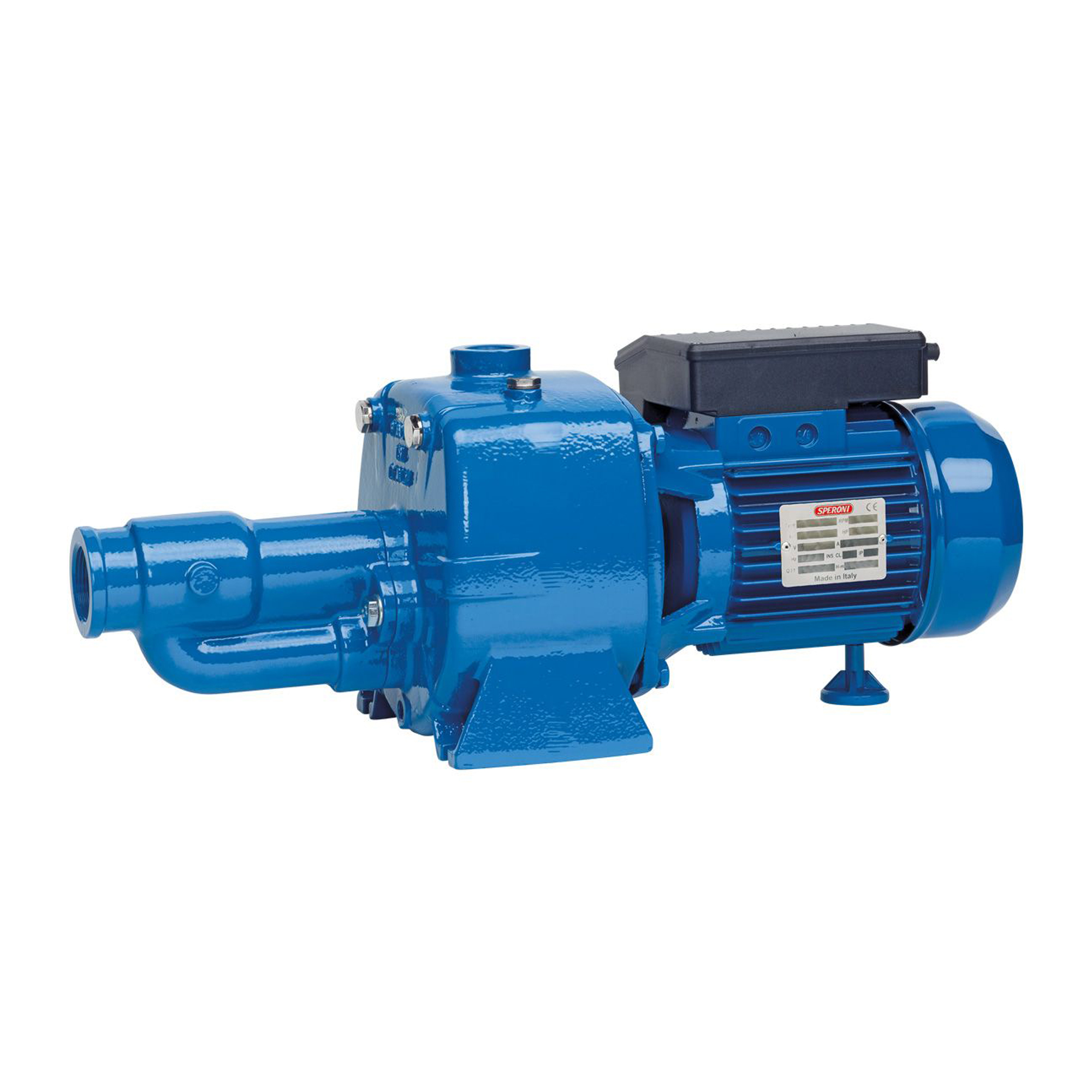

Self-Priming Water Pump – 29 ft Suction Lift – 230V Single-Phase
This high-quality self-priming water pump is designed for residential water supply, light irrigation systems, and general water transfer needs. Built for durability and efficiency, it offers a maximum suction lift of up to 29 feet, making it ideal for shallow well applications and other domestic water tasks.
Operating Conditions
-
Max liquid temperature: 95°F (35°C), compliant with EN 60335-2-41 for home use
-
Max temperature (all uses): 95°F (35°C)
-
Max ambient temperature: 104°F (40°C)
-
Max suction lift: 29 ft (8.8 m)
Motor Specifications
-
Power Supply: Single-phase 230V, 60Hz
-
Motor Type: Two-pole induction motor (3450 RPM)
-
Insulation Class: F
-
Protection Rating: IP55 (dust and water-resistant)
Construction Materials
-
Pump Body: Heavy-duty cast iron for strength and durability
-
Motor Support: Cast iron for added stability
-
Impellers & Diffuser: Corrosion-resistant Norly (engineered thermoplastic)
-
Ejector: Cast iron for reliable deep suction performance
-
Shaft with Rotor: Stainless steel AISI 304 for enhanced corrosion resistance
-
Mechanical Seal: Ceramic/Graphite/NBR for leak-free, long-lasting performance
Ideal Applications
-
Shallow well water pumping
-
Residential water systems
-
Pressure boosting for home plumbing
-
Garden and landscape irrigation
-
Water transfer from storage tanks or cisterns

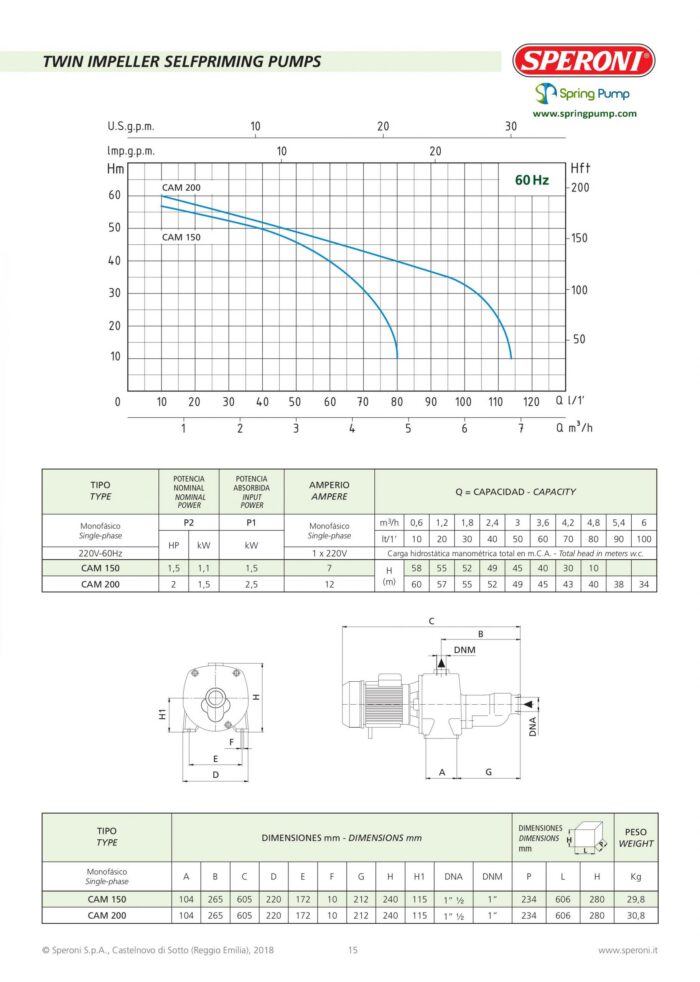

Performance Curve
| Type | Motor | Pump | |||||||||||||||
| Nominal Power (P1) | Input Power (P2) | Volt | Phase | Ampere | Q = Capacity | ||||||||||||
| HP | KW | KW | V | PH | A | Gal/Min | 2.6 | 5.3 | 7.9 | 10.6 | 13.2 | 15.9 | 18.5 | 21.1 | 23.8 | 26.4 | |
| CAM-150 | 1.5 | 1.1 | 1.5 | 230V | 1 | 7 | Ft. | 190.3 | 180.4 | 170.6 | 160.8 | 147.6 | 131.2 | 98.4 | 32.8 | – | – |
Dimensions
| Size (inch) | Weight (lbs.) | ||||||||||
| A | B | C | D | E | F | G | H | H1 | DNA | DNM | |
| 4.1 | 10.4 | 23.8 | 8.7 | 6.8 | 0.4 | 8.3 | 9.4 | 4.5 | 1.5 | 1 | 65.6 |
